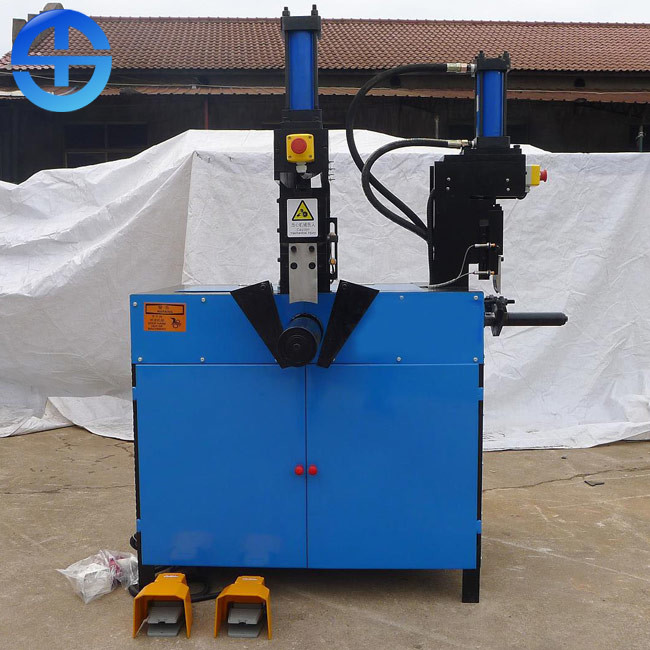

380V Copper Coil Cutting 50HZ Electric Motor Recycling Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | TMS |
| Certification: | ISO, CE, CO |
| Model Number: | TMS-4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | Ply wooden case. The package size is 1630 *1300*1710 mm. The package weight is 515 kg |
| Delivery Time: | 10 work days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 20 sets per month |
|
Detail Information |
|||
| Name: | Copper Coil Cutting Machine | Function: | Cut The Copper Coil |
|---|---|---|---|
| Application: | Φ80 - Φ300 Mm | Power: | 4 Kw |
| Dimension: | 1400*1100*1650 Mm | Speed: | 20-150 Pieces/hour |
| Weight: | 430 Kg | Color: | Blue |
| High Light: | electric motor wrecker,electric motor recycling machine |
||
Product Description
380V Copper Coil Cutting 50HZ Electric Motor Recycling Machine
Brife Introduction of copper coil cutting machine
Motor stator recycling machine consists of two machines, copper wire cutting machine and copper wire pulling machine. Copper wire cutting machine is used to cut one end of copper windings in the motor stator, while copper wire pulling machine is used to pull copper windings out of the motor stator. It is mainly copper coil cutting machine (cutting off one end of copper wire of motor stator) with hydraulic copper wire pulling machine to recover copper wire of motor stator. It is used in motor factory to recover unqualified enameled wire and steel sheet of motor stator. It is also used in some recycling motor dismantling factories. It is also used in many recycling copper wire of washing machine motor and air conditioning compressor.
Specifications of copper coil cutting machine
| Dimension (L*W*H) | 1400*1100*1650mm |
| Speed | 20-150 pieces/hour |
| Power | 4kw/380V/50HZ |
| Outer diameter of stator processed | 8-30cm |
| Net Weight | 430kg |
| Package size (L*W*H) | 1630*1300*1710mm |
| Gross Weight | 515kg |
Advantages of copper coil cutting machine
1. Nice appearance with reasonable structure.
2. Using high torque cylinder, which can withstand high loads of high intensity running.
3. Using international brands for hydraulic components, with air cooling system to prevent the oil temperature from too high during operation
4. We use SCHNEIDER, SIEMENS, and CHNT for electrical control system.
5.The material of blade is chisel tool steel, which is repairable and can be reused.
6. Cutting stroke with adjustable system which can be adjusted according to the size of outer diameter of the stator, improving the operating efficiency.
7. The processing of equipment is without metal loss, with improved recycling value, and environmental friendly.
8. The equipment is designed with access door, emergency stop switch to ensure safety. And adopted CE Certificate, in line with European Safety Standards.
Working process
Firstly, the waste motor stator is supported on the support column, and the copper coil cutting machine is used to cut the motor stator, and a foot switch is used to control the cutter to cut the copper coil of the motor stator; After that, the motor stator after cutting is placed on the lifting platform of copper pulling machine, the motor stator is controlled to rise to the copper pulling plate by manual switch, the copper pulling plate limits the motor stator, and then another foot switch controls the pliers to make the jaws bite the copper coil. The dismantling equipment of waste motor is mainly divided into two sets, which pull out the copper coil from the stator.
The hydraulic copper coil cutting machine in the dismantling equipment of waste motor is a kind of environmental protection equipment with high efficiency to cut off the copper wire in the motor stator. The whole equipment is driven by hydraulic pressure. When cutting, the waste motor stator is first supported on the support column (roller structure), and the motor stator is positioned by the copper chopping positioning plate, One of the foot switches controls the upper and lower movement of the cutter and the induction switch controls the upper and lower limit positions of the tool to cut off the copper wire ring of the motor stator.
