Scrap Electric Crushing Separating 60kg/hr Copper Wire Recycling Machine

Scrap Electric Crushing Separating 60kg/hr Copper Wire Recycling Machine

Product Details:

Place of Origin: Henan, China (Mainland)
Brand Name: TMS
Certification: CE, CO, ISO
Model Number: 300

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiated
Packaging Details: Ply wooden case
Delivery Time: 15 work days after receiving the deposit
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 30 Set/Sets per month
Get Best Price Contact Now

Detail Information

Application: Scrap Copper Cables Type: Dry Type
Power: 12.24kw Function: Separate Copper From Plastic
Separating Rate: 99.9% Output: 60-100 Kg/h
Weight: 1220kg Dimension: 1360*1300*1915 Mm
Wire Diameter: 0.1-20mm Name: Copper Wire Recycling Machine
High Light:

60kg/hr Copper Wire Recycling Machine


150kg/hr Copper Wire Recycling Machine


60kg/hr copper wire granulator machine

Product Description

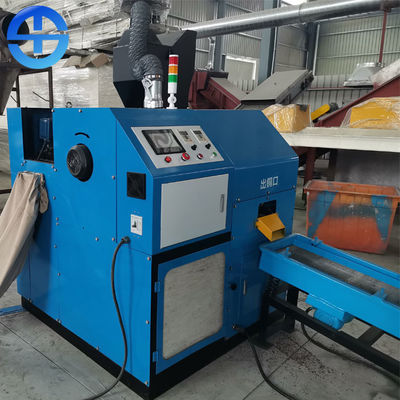

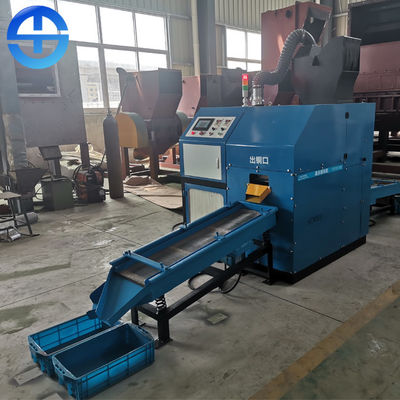

Scrap Electric Crushing Separating 60kg/hr Copper Wire Recycling Machine

Scrap Electric Crushing Separating 60kg/hr Copper Wire Recycling Machine 0


Product Description

Copper Cable/Wire Recycling Machine/Cable Granulator/Cable Shredder can crush waste copper cable or wire into 1-5 mm granules mixed with plastic(PVC)&copper.Then use air, specific gravity and electrostatic separation technique to separate copper and plastic.So that the copper and plastic can be both recycled, greatly increasing their application valuesBy using totally dry-type physical separating technique there will be no environment pollution during the whole process and the separating ratio can be reach 99%.

Shredwell waste cable wire recycling plant or cable recycling machine is mainly used to recycle different types of cable wires, such as all kinds of automotive circuit cable lines, communication cable lines and various waste wires that are not suitable to be processed by stripping machines. Like: computer wires, automobile wires, tele-communication cables, electric telephone wiresThe functions of these cable recycling system include pre-shredding, steel removal, granulation and separation of plastics from copper or aluminum. The advanced design of these plants results in excellent separation of the different fractions, even when processing mixed cables of varying size and composition.

Scrap Electric Crushing Separating 60kg/hr Copper Wire Recycling Machine 1

Technical parameters


Model Size Capacity Wire diameter range Power Volage Wight

1360*1300*1915 mm

60-100 kg/h 0.1-20 mm 12.24 kw 380/240V 1220kg
TMS-400 2700*1900*2300 mm 150-200 kg/h 0.1-20 mm 23.12 kw 380/240V 1200kg

4300*1950*2400 mm

300-400 kg/h 0.1-20 mm 52.36 kw 380/240V 3400kg

9200*4100*3540 mm

500-600 kg/h 0.1-30 mm 71.86 kw 380/240V 4100kg



1. Eco-friendly equipment: Each copper recycling machine is equipped with a dust collection device, so the recycling process does no harm to environment;
2. Cover a small area: The structure of the machine is compact. In addition, it’s easy to install a copper recycling machine;
3. Easy operation: PLC control system, highly automatic, high efficiency;
4. Recycling rate is up to 99%;
5. High-quality spare parts, long service life. The blade is made of high-quality alloy steel;
6. The voltage and the frequency of the machine can be customized according to the customer’s requirements.

Final granules show

Scrap Electric Crushing Separating 60kg/hr Copper Wire Recycling Machine 3


1. How to sell copper wire?

Copper tends to yield the most money compared to other recyclable scrap metal. If you renovate your home or own a business that produces junk metal, consider recycling it for extra cash. Most copper wire requires a little prep work to command the highest price. It often has insulation or other attached components that brings its value down. Collect scrap copper wire until you have about 20 lbs. or more, remove the components and bring it to a recycling center to sell.

(1). Separate your copper wire into grades. Grade three includes copper foil and other thin pieces of copper. Grade two includes copper wire that is corroded, tarnished or painted. Grade one copper wire is clean and has no paint, varnish or any other alterations. Recycling centers pay the most for grade one wire and the least for grade three.

(2). Strip the insulation off if the recycling center pays less for wire with insulation. Slide a sharp knife along the insulation and peel it off. Small-gauge copper wire is challenging to strip; if you have trouble, leave the wire as is and avoid risking injury to your hands.
