Flat Type High Pellet Density 200kg/hr Biomass Pellet Machine

Flat Type High Pellet Density 200kg/hr Biomass Pellet Machine

Product Details:

Place of Origin: Zhengzhou, China
Brand Name: TMS
Certification: CE, ISO
Model Number: 200

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD1200-1500 per set
Packaging Details: Exported ply wooden case
Delivery Time: 10 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 60 sets per month
Get Best Price Contact Now

Detail Information

Name: Biomass Pellet Machine Function: Making Pellet As Fuel
Output: 200-300kg/h Power: 7.5kw
Dimension: 1050*480*990mm Moisture Required: 10-18%
Type: Flat Weight: 200kg
High Light:

200kg/hr Biomass Pellet Machine

,

300kg/hour Biomass Pellet Machine

,

200kg/hr grass pellet making machine

Product Description

200-300kg/H Flat Type High Pellet Density Biomass Pellet Machine

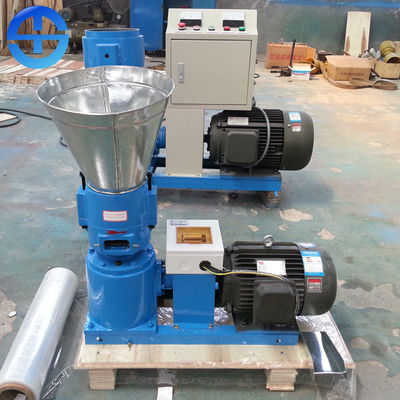

Flat Type High Pellet Density 200kg/hr Biomass Pellet Machine 0



Description of Biomass pellet machine

Biomass pellet machinecan take the agricultural and forestry processing wastes such as sawdust, straw, rice husk, bark and other biomass as raw materials, and solidify them into high-density pellet fuel through pretreatment and processing. It can not only save energy, but also reduce emissions, economic and social benefits. It is an efficient and clean renewable energy. Biomass pellet machine is divided into flat biomass pellet and ring biomass pellet and updated products. Our company mainly produce the flat biomass pellet machine.

Features of biomass pellet machine

1) Table performance, low energy consumption

2) Convenient repairing and maintenance

3) Low failure rate, easy operation

4) High pellet forming rate

5) Pellet with high density

6) The length of pellets can adjust by change cutter‘s position.

7) Widely use to press fuel /feed/fertilizer pellets.

Materials of biomass pellet machine

Biomass pellet machine is a production-oriented machine which uses eucalyptus, pine, birch, poplar, fruit wood, crop straw and bamboo chips as sawdust to process into biomass fuel. The raw material sources of biomass particles are very wide, including sawdust, wood shavings, bark, sanding powder, waste wood and branches produced in wood processing and wood-based panel production; all kinds of straw produced after crop harvest; other types of combustible biomass as raw materials, without adding any adhesive, can be used to produce biomass pellet fuel through equipment processing

Technical parameters of biomass pellet machine

Model Power Output (kg/h) Dimension (mm) G.W N.W Moisture required
120 2.2/3kw 60-100 750*320*680 100kg 80kg 10-18%
150 4kw 90-120 800*450*700 110kg 91kg 10-18%
200 7.5kw 200-300 1050*480*990 230kg 200kg 10-18%
230 11kw 300-400 1180*540*1000 320kg 290kg 10-18%
260 15kw 400-600 1240*540*1000 360kg 320kg 10-18%
300 22kw 600-800 1300*560*1100 450kg 410kg 10-18%
400 30kw 800-1200 1560*640*1400 700kg 660kg 10-18%

Working process of biomass pellet machine

The motor drives the spindle through the hypoid bevel gear, and the spindle drives the press roll to rotate. When processing raw materials, the raw materials are sent to the feeding chamber of the flat die machine, and the materials fall on the flat die. The main shaft drives the press roller to rotate. The roller continuously rolls through the material layer and extrudes the material into the die hole. The material experiences the process of forming and maintaining shape in the die hole. After a certain period of time, the material is extruded in a cylindrical state. The rotating cutter cuts off the material and forms particles, which are sent out by the material throwing plate.

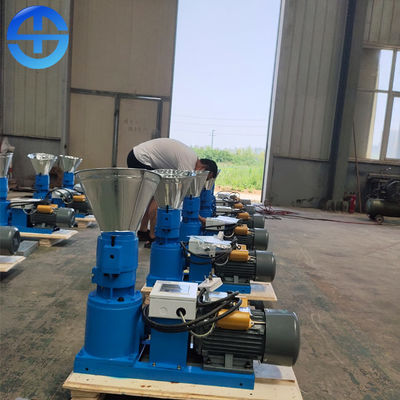

Flat Type High Pellet Density 200kg/hr Biomass Pellet Machine 1
