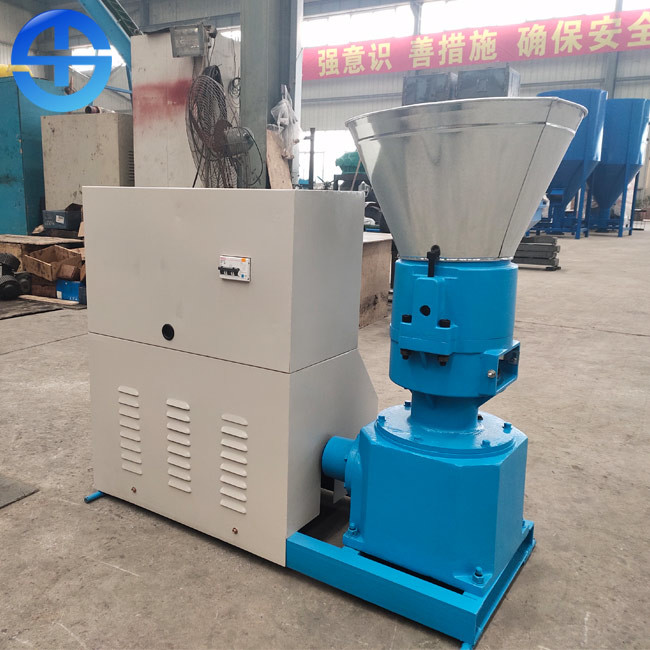

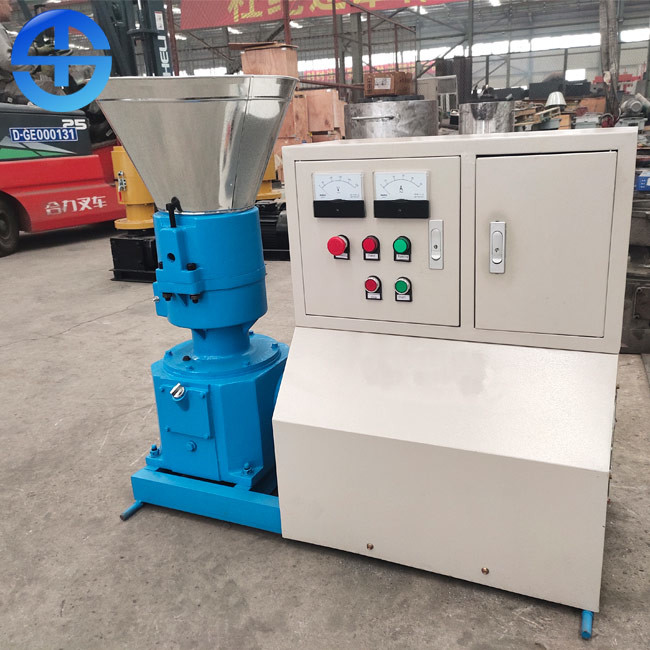

Electric Motor Driven 400kg/H 600kg/H Biomass Pellet Machine
Product Details:
| Place of Origin: | Zhengzhou, China |
| Brand Name: | TMS |
| Certification: | CE, ISO |
| Model Number: | 230 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD1840-2000 per set |
| Packaging Details: | Exported ply wooden case |
| Delivery Time: | 10 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 60 sets per month |
|
Detail Information |
|||
| Name: | Wood Pellet Mill | Usage: | Making Biomass Pellet, Sawdust Pellet |
|---|---|---|---|
| Output: | 400-600kg/h | Power: | 15kw |
| Dimension: | 1240*540*1000mm | Weight: | 360kg |
| High Light: | 600kg/H Biomass Pellet Machine,400kg/H Biomass Pellet Machine,400kg/H biomass wood pellet machine |
||
Product Description
Electric Motor Driven Model 300 Output 400-600kg/H Wood Pellet Mill
Description of wood pellet mill
Wood pellet machine turns the raw materials into the high-efficient biomass fuel. What's more, the conversion of raw material into more energy-dense forms facilitates transport, storage and use through the rest of the value chain. The future of the biomass is on continuous developing.
Wood pellet is easy to store and produce a minimal amount of ash. Wood pellets are environmentally-friendly. They are a sustainable fuel source
Technical parameters of wood pellet mill
| Model | Power | Output (kg/h) | Dimension (mm) | G.W | N.W | Moisture required |
| 120 | 2.2/3kw | 60-100 | 750*320*680 | 100kg | 80kg | 10-18% |
| 150 | 4kw | 90-120 | 800*450*700 | 110kg | 91kg | 10-18% |
| 200 | 7.5kw | 200-300 | 1050*480*990 | 230kg | 200kg | 10-18% |
| 230 | 11kw | 300-400 | 1180*540*1000 | 320kg | 290kg | 10-18% |
| 260 | 15kw | 400-600 | 1240*540*1000 | 360kg | 320kg | 10-18% |
| 300 | 22kw | 600-800 | 1300*560*1100 | 450kg | 410kg | 10-18% |
| 400 | 30kw | 800-1200 | 1560*640*1400 | 700kg | 660kg | 10-18% |
Features of wood pellet mill
(1). We manufacture the machines in accordance with the European standard.
(2). All machines have passed CE certificate.
(3). The flat die type wood pellet machine is for pressing biomass materials to be solid pellets which are used for burning;
(4). You can use nearly all kinds of biomass as raw materials, such as agricultural waste, straw, fodder, forestry wastes, lumber leftover, sawdust, wood chips and so on.
(5). As for the power, you can choose diesel engine driven or electric motor driven. And we have many different models for your option.
(6). Our pellet machines are ideal pellet press for personal, family and small plants. It’s very easy to operate and maintain.
(7). Flat die wood pellet machine is specially for making wood pellets, unique design for motor and gearbox, new roller rotating instead of previous die rotating. More than 20% output capacity increase than old models.
Application of wood pellet mill
Our Machine to Make Wood Pellets with wide Applications and High Output Efficiency. The Applications Raw Materials as follows:
(1). All kinds of wood waste or agro-forestry waste can be used,such as:Wood waste,scobs,branch,palm tree,sugarcane residue,sawdust,medical slag,hay,discarded edible fungus bags.Bean stalk,wheat stalk,corn stalk,cotton stalks,sunflower stalks,mustard stalk,rice stalks,coffee husk,cotton shell,peanut shell,rice shell,coconut shell.
(2).Livestock and poultry's waste,tea waste,tea waste,forestry wastes,forestry wastes,wood chips and many other organic waste resources.
Working process of wood pellet mill
The motor drives the spindle through the hypoid bevel gear, and the spindle drives the press roll to rotate. When processing raw materials, the raw materials are sent to the feeding chamber of the flat die machine, and the materials fall on the flat die. The main shaft drives the press roller to rotate. The roller continuously rolls through the material layer and extrudes the material into the die hole. The material experiences the process of forming and maintaining shape in the die hole. After a certain period of time, the material is extruded in a cylindrical state. The rotating cutter cuts off the material and forms particles, which are sent out by the material throwing plate.
