High Output 800kg/H 1300*560*1100mm Biomass Pellet Machine

Minimum Order Quantity : 1 set Price : USD2450-2800 per set
Packaging Details : Exported ply wooden case Delivery Time : 10 working days
Payment Terms : L/C, T/T, Western Union Supply Ability : 60 sets per month
Place of Origin: Zhengzhou, China Brand Name: TMS
Certification: CE, ISO Model Number: 300

Detail Information

Name: Wood Pellet Machine Usage: Make Wood Pellet
Output: 600-800kg/h Power: 22kw
Dimension: 1300*560*1100mm Weight: 410kg
High Light:

1300*560*1100mm Biomass Pellet Machine


800kg/H Biomass Pellet Machine


1300*560*1100mm commercial wood pellet mill

Product Description

High Output 800kg/H 1300*560*1100mm Biomass Pellet Machine


Description of wood pellet machine


Wood pellet machine turns the raw materials into the high-efficient biomass fuel. What's more, the conversion of raw material into more energy-dense forms facilitates transport, storage and use through the rest of the value chain. The future of the biomass is on continuous developing.

Wood pellet is easy to store and produce a minimal amount of ash. Wood pellets are environmentally-friendly. They are a sustainable fuel source


Technical parameters of wood pellet machine


Model Power Output (kg/h) Dimension (mm) G.W N.W Moisture required
120 2.2/3kw 60-100 750*320*680 100kg 80kg 10-18%
150 4kw 90-120 800*450*700 110kg 91kg 10-18%
200 7.5kw 200-300 1050*480*990 230kg 200kg 10-18%
230 11kw 300-400 1180*540*1000 320kg 290kg 10-18%
260 15kw 400-600 1240*540*1000 360kg 320kg 10-18%
300 22kw 600-800 1300*560*1100 450kg 410kg 10-18%
400 30kw 800-1200 1560*640*1400 700kg 660kg



Features of wood pellet machine


1. Simple structure, wide adaptability, small floor space, and low noise.

2. The powdery feed and grass powder can be granulated without adding a little liquid, so the water content of the pellet feed is basically the moisture content of the material before granulation, which is more conducive to storage.

3. Chickens, ducks, fish, etc., can obtain higher economic benefits than mixed powdered feed.

4. Dry material processing, the production of feed pellets with high hardness, smooth surface, and internal ripening can improve the digestion and absorption of nutrients.

5. The particle formation process can denature the pancreatic enzyme resistance factor in grains and beans, reduce the adverse effects on digestion, kill various parasite eggs and other pathogenic microorganisms, and reduce various insect and digestive diseases.


Application of wood pellet machine


Our Machine to Make Wood Pellets with wide Applications and High Output Efficiency. The Applications Raw Materials as follows:

(1). All kinds of wood waste or agro-forestry waste can be used,such as:Wood waste,scobs,branch,palm tree,sugarcane residue,sawdust,medical slag,hay,discarded edible fungus bags.Bean stalk,wheat stalk,corn stalk,cotton stalks,sunflower stalks,mustard stalk,rice stalks,coffee husk,cotton shell,peanut shell,rice shell,coconut shell.

(2).Livestock and poultry's waste,tea waste,tea waste,forestry wastes,forestry wastes,wood chips and many other organic waste resources.

Working process of wood pellet machine


During the process of producing feed pellets, the temperature of the pellet press can reach 70-80 centigrade. At this temperature, fecula can be made into a paste in pellet press. The inside granule is cooked fully so the pellets will be not easy to go moldy and degenerative. This kind of cooked pellets can be stored for a long time and improve poultry dainty and assimilation function for feed animal. It also can shorten the period of feeding, so it can efficiently guarantee many users’ productive cost.

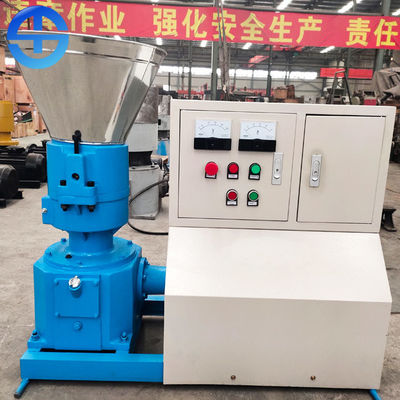

High Output 800kg/H 1300*560*1100mm Biomass Pellet Machine 0

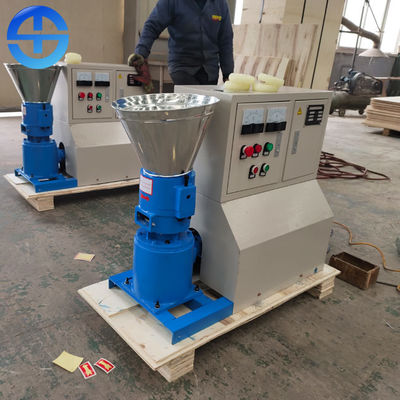

High Output 800kg/H 1300*560*1100mm Biomass Pellet Machine 1
