18% Moisture 100kg Per Hour Wood Pellet Making Machine

18% Moisture 100kg Per Hour Wood Pellet Making Machine

Product Details:

Place of Origin: Zhengzhou, China
Brand Name: TMS
Certification: CE, ISO
Model Number: 120

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD550-660 per set
Packaging Details: Exported ply wooden case
Delivery Time: 10 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 60 sets per month
Get Best Price Contact Now

Detail Information

Name: Wood Pellet Making Machine Usage: Make Pellet
Output: 60-100kg/h Power: 2.2kw
Dimension: 750*320*680mm Moisture Required: 10-18%
Material: Carbon Steel Pellet Size: 3, 4, 5, 6, 8mm
High Light:

100kg Per Hour Wood Pellet Making Machine

,

18% Moisture Wood Pellet Making Machine

,

100kg Per Hour small wood pellet mill

Product Description

10-18% Moisture Small 60-100kg/H Output Wood Pellet Making Machine

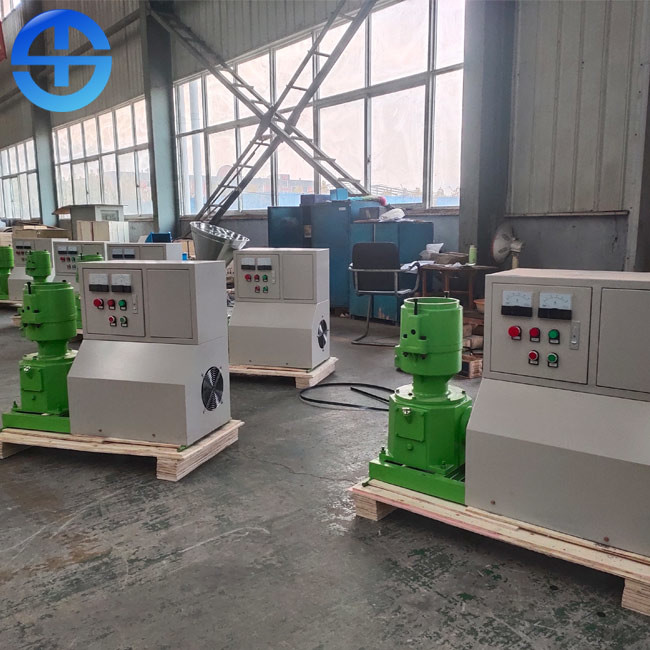

18% Moisture 100kg Per Hour Wood Pellet Making Machine 0



Description of wood pellet making machine

Wood pellet making machine turns the raw materials into the high-efficient biomass fuel. What's more, the conversion of raw material into more energy-dense forms facilitates transport, storage and use through the rest of the value chain. The future of the biomass is on continuous developing.

Wood pellet is easy to store and produce a minimal amount of ash. Wood pellets are environmentally-friendly. They are a sustainable fuel source

Features of wood pellet making machine

(1) Adopt reduction box with low noise, long lifespan gear and can rotate forward and reverse. Other manufacturers adopt low cost bevel gear that cannot rotate reverse.
(2) The pressing die and main shaft adopt Cr12, which is more wear-resisting because of high Cr content. The special heat treatment makes their hardness to be 60HRC. Other manufacturers use 45# instead with low hardness and wear-resistance.

(3) The roller, pressing die, main shaft and roller shaft are processed by vacuum heat treatment other than carburizing and quenching (that other manufacturers use) to have higher hardness, wear-resistance and longer lifespan.

(4) The sealing of spare parts for small pellet machine is excellent. The roller shaft is sealed on both sides, while other manufacturers only seal one side.

(5) The feeding hopper applies whole sheet metal edge instead of welding to be more stable and firm.

(6) The compression ratio of small pellet press determines the quality of your pellets. We have professional team doing the raw material test and have obtained best compression ratio for over 20 kinds of common seen biomass.

(7) The electric components adopt top brands in China to guarantee stable performance.

Application of wood pellet making machine

(1). Livestock and poultry's waste,tea waste,tea waste,forestry wastes,forestry wastes,wood chips and many other organic waste resources.

(2).All kinds of wood waste or agro-forestry waste can be used,such as:Wood waste,scobs,branch,palm tree,sugarcane residue,sawdust,medical slag,hay,discarded edible fungus bags.Bean stalk,wheat stalk,corn stalk,cotton stalks,sunflower stalks,mustard stalk,rice stalks,coffee husk,cotton shell,peanut shell,rice shell,coconut shell.

Technical parameters of wood pellet making machine

Model Power Output (kg/h) Dimension (mm) G.W N.W Moisture required
120 2.2/3kw 60-100 750*320*680 100kg 80kg 10-18%
150 4kw 90-120 800*450*700 110kg 91kg 10-18%
200 7.5kw 200-300 1050*480*990 230kg 200kg 10-18%
230 11kw 300-400 1180*540*1000 320kg 290kg 10-18%
260 15kw 400-600 1240*540*1000 360kg 320kg 10-18%
300 22kw 600-800 1300*560*1100 450kg 410kg 10-18%
400 30kw 800-1200 1560*640*1400 700kg 660kg 10-18%

Working process of wood pellet making machine

During the process of producing feed pellets, the temperature of the pellet press can reach 70-80 centigrade. At this temperature, fecula can be made into a paste in pellet press. The inside granule is cooked fully so the pellets will be not easy to go moldy and degenerative. This kind of cooked pellets can be stored for a long time and improve poultry dainty and assimilation function for feed animal. It also can shorten the period of feeding, so it can efficiently guarantee many users’ productive cost.

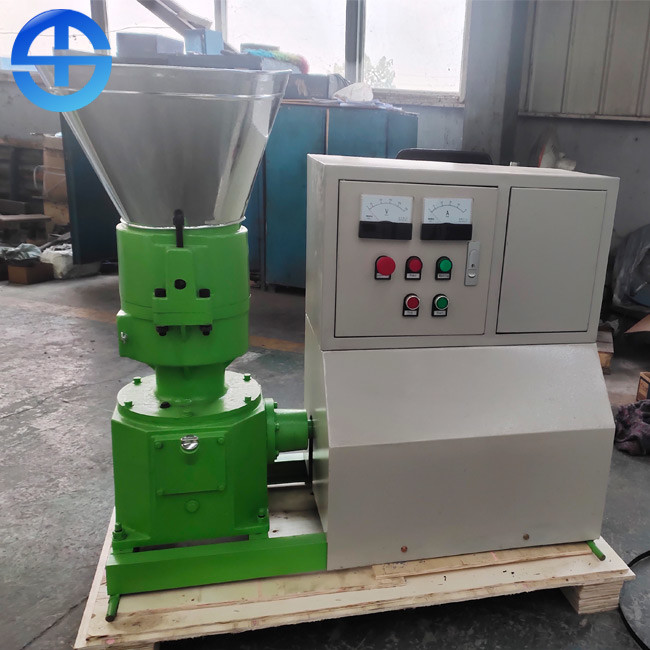

18% Moisture 100kg Per Hour Wood Pellet Making Machine 1
