Roller Turned Flat Die 90kg/Hr 120kg/Hr Biomass Pellet Machine

Roller Turned Flat Die 90kg/Hr 120kg/Hr Biomass Pellet Machine

Product Details:

Place of Origin: Zhengzhou, China
Brand Name: TMS
Certification: CE, ISO
Model Number: 150

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD620-720 per set
Packaging Details: Exported ply wooden case
Delivery Time: 10 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 60 sets per month
Get Best Price Contact Now

Detail Information

Name: Pellet Mill Machine Usage: Make Pellet
Output: 90-120kg/h Power: 4kw
Dimension: 800*450*700mm Moisture Required: 12%
Die Material: Carbon Steel Pellet Size: 3, 4, 5, 6, 8mm
High Light:

120kg/Hr Biomass Pellet Machine


90kg/Hr Biomass Pellet Machine


120kg/Hr biomass pellet making machine

Product Description

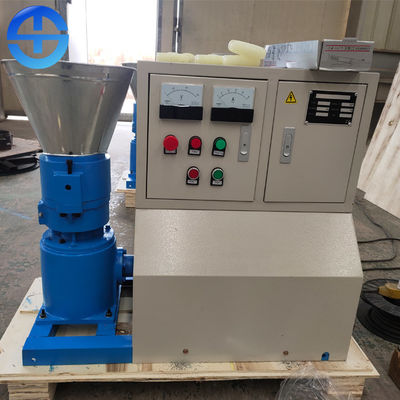

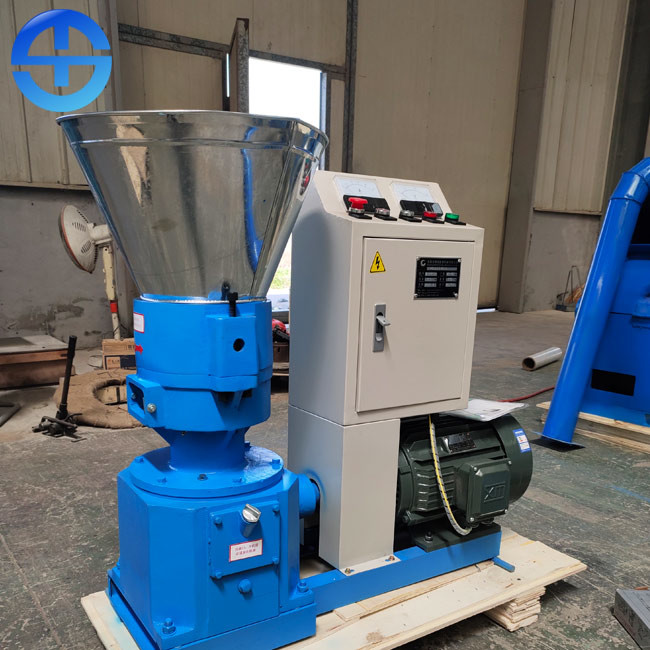

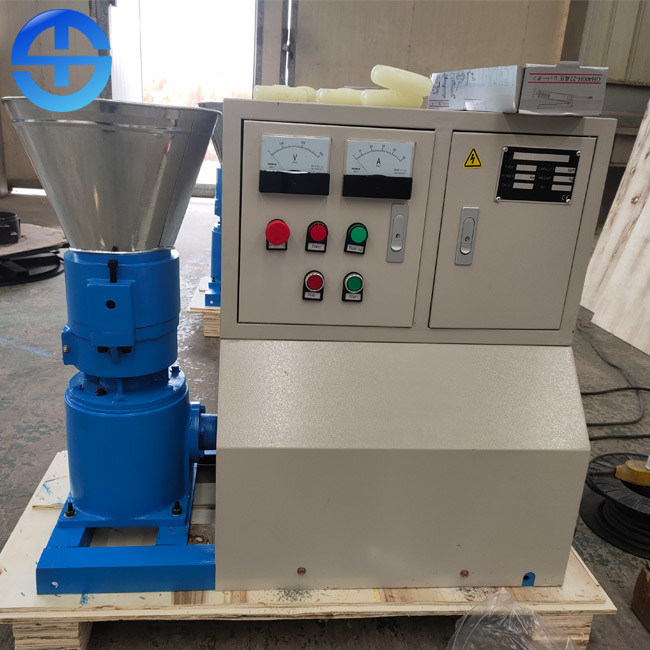

Roller Turned 90-120kg/H Small Flat Die Biomass Pellet Mill Machine

Description of pellet mill machine

Wood pellet mill machine turns the raw materials into the high-efficient biomass fuel. What's more, the conversion of raw material into more energy-dense forms facilitates transport, storage and use through the rest of the value chain. The future of the biomass is on continuous developing.

Wood pellet is easy to store and produce a minimal amount of ash. Wood pellets are environmentally-friendly. They are a sustainable fuel source

Technical parameters of pellet mill machine

Model Power Output (kg/h) Dimension (mm) G.W N.W Moisture required
120 2.2/3kw 60-100 750*320*680 100kg 80kg 10-18%
150 4kw 90-120 800*450*700 110kg 91kg 10-18%
200 7.5kw 200-300 1050*480*990 230kg 200kg 10-18%
230 11kw 300-400 1180*540*1000 320kg 290kg 10-18%
260 15kw 400-600 1240*540*1000 360kg 320kg 10-18%
300 22kw 600-800 1300*560*1100 450kg 410kg 10-18%
400 30kw 800-1200 1560*640*1400 700kg 660kg 10-18%

 Features of pellet mill machine

1. It is easy to move this pellet press. You can move it to any place where you want to make pellets. You may place it near the place where the raw materials are stored, like on farm or at home.
2. It can be operated and maintained easily -- operators can operate and maintain the machine by following the guidance.
3. It can be used to process various materials, like wood chips, wood shavings and wood sawdust; stalk from cotton or bean; peanut shell, sunflower husk and so on.
4. This mobile pellet mill is made from high-quality materials -- its key parts, roller and die are made from wear-resistant alloy steel.
5. It is environmentally friendly -- the fuel pellets produced by this pellet maker can be burned fully; biomass pellets cause little ash and the ash is also a good fertilizer to field.
6. Troubles can be easily observed and solved. Operator is able to have a view of the chamber to find out the problems and solves the problems.

Advantages of pellet mill machine

Roller-turned electric pellet mill machine enjoys high efficiency, stable performance, strong durability, and little maintenance. Its die compression ratio can be adjusted according to the specific raw material. And the service life of its flat die prolongs as both sides of the die can be used. It is made of high-quality steel, thus ensuring the machine’s long service life.
This pellet mill is also called sawdust pellet mill or wood pellet mill, as it is mainly used to make pellets from sawdust and various woods. Moreover, it can also make pellets from other biomass materials, like: grass, bagasse, peanut shell, cotton and corn stalks, and other agricultural residuals.

Application of pellet mill machine

(1). Livestock and poultry's waste,tea waste,tea waste,forestry wastes,forestry wastes,wood chips and many other organic waste resources.

(2). All kinds of wood waste or agro-forestry waste can be used,such as:Wood waste,scobs,branch,palm tree,sugarcane residue,sawdust,medical slag,hay,discarded edible fungus bags.Bean stalk,wheat stalk,corn stalk,cotton stalks,sunflower stalks,mustard stalk,rice stalks,coffee husk,cotton shell,peanut shell,rice shell,coconut shell.
