Flat Biomass 800kg/H 1000kg/H Sawdust Pellet Mill

Flat Biomass 800kg/H 1000kg/H Sawdust Pellet Mill

Product Details:

Place of Origin: Zhengzhou, China
Brand Name: TMS
Certification: CE, ISO
Model Number: 400

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD4700-4950 per set
Packaging Details: Exported ply wooden case
Delivery Time: 10-20 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 80 sets per month
Get Best Price Contact Now

Detail Information

Name: Sawdust Pellet Mill Function: Produce Pellet As Feed Or Fuel
Capacity: 800-1000kg/h Motor: 30kw
Type: Flat Die Type Water Content: 10-18%
Raw Materials: Sawdust, Wood Chips, Wood Shavings Etc Pellet Size: 8mm
High Light:

1000kg/H Sawdust Pellet Mill


800kg/H Sawdust Pellet Mill


1000kg/H sawdust pellet machine

Product Description

Economical Model Flat 800-1000kg/H Biomass Sawdust Pellet Mill

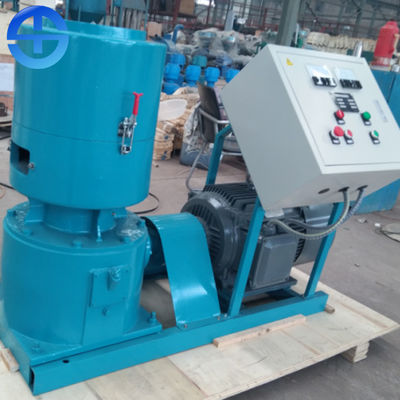

Flat Biomass 800kg/H 1000kg/H Sawdust Pellet Mill 0

Introduction of sawdust pellet mill

400 sawdust pellet mill is designed with three rotating rollers, providing more compression force on raw materials, which makes it available to process nearly all biomass materials even the hardwood. Besides, it is suitable for making feed pellets from powder grains and organic fertilizer pellets from animal wastes. Equipped with electric cabinet and fully-covered electric engine, WHIR-400 pellet machine can be operated intelligently and safely. If an emergency occurs when pelletizing, just press the off button, the pellet mill will stop immediately without any damage to both the pellet mill and the operator.

Features of sawdust pellet mill

1. It has simple structure and it can be easily cleaned and maintained.
2. This pellet mill is easy to operate--just 1 or 2 workers can operate the pellet machine.
3. Operators are able to have a view of the chamber, so it is easy to find problems during pelleting.
4. Spare parts, i.e. rollers and die are easy to change.

Advantages of sawdust pellet mill

Sawdust pellet mill enjoys high efficiency, stable performance, strong durability, and little maintenance. Its die compression ratio can be adjusted according to the specific raw material. And the service life of its flat die prolongs as both sides of the die can be used. It is made of high-quality steel, thus ensuring the machine’s long service life.

Materials of sawdust pellet mill

The suitable raw materials for making feed pellets include bean pulp, maize, grass, wheat bran, rice hull, straw, silage, etc. Pelleted feed made by the flat die pellet mill can be stored for a long time. It can shorten the period of feeding, so it can efficiently guarantee many users' productive cost. Feed pellets are mainly adopted to feed cattle, chicken, pig, rabbits and other animals.

Raw materials for biomass pellets mainly include: wood wastes (such as sawdust, wood chips, wood shavings, and other parings from furniture manufacturers or wood working factory; wood wastes including pine tree waste, spruce tree waste) and agricultural wastes (like rice straw, peanut shells, coconut shells, palm wastes, corn stover, switchgrass, etc.). In the process of making wood pellets, the lignin and resin of woods can serve as binder for pelletizing. So there is no need to add any additives.

Technical parameters of sawdust pellet mill

Model Power Output (kg/h) Dimension (mm) G.W N.W Moisture required
120 2.2/3kw 60-100 750*320*680 100kg 80kg 10-18%
150 4kw 90-120 800*450*700 110kg 91kg 10-18%
200 7.5kw 200-300 1050*480*990 230kg 200kg 10-18%
230 11kw 300-400 1180*540*1000 320kg 290kg 10-18%
260 15kw 400-600 1240*540*1000 360kg 320kg 10-18%
300 22kw 600-800 1300*560*1100 450kg 410kg 10-18%
400 30kw 800-1200 1560*640*1400 700kg 660kg 10-18%

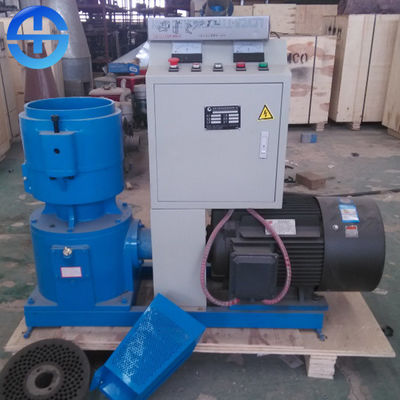

Flat Biomass 800kg/H 1000kg/H Sawdust Pellet Mill 1
