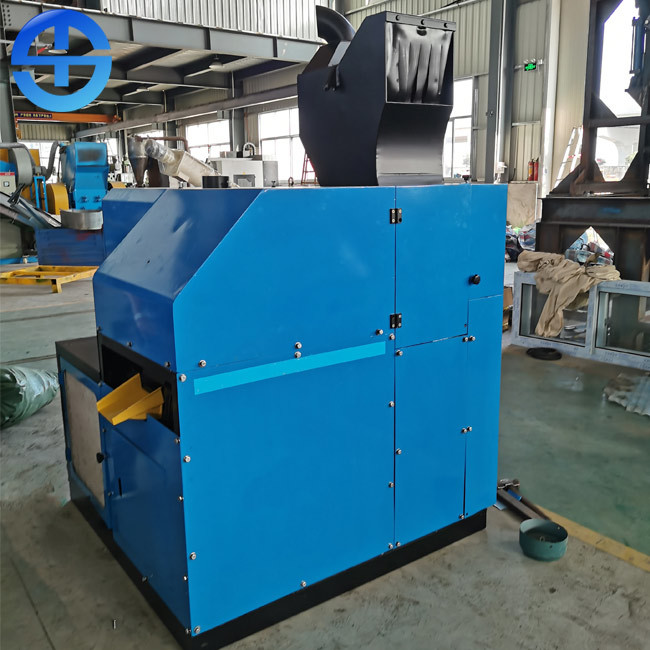

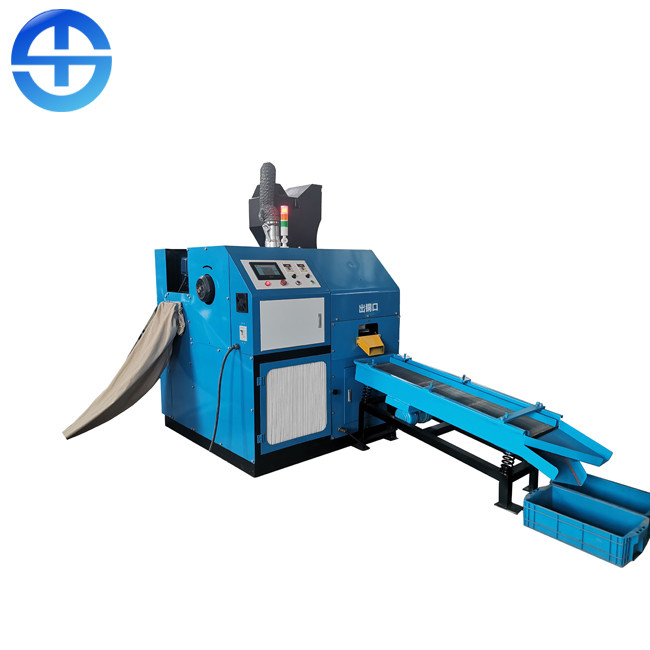

Recycling Rate 99% 100kg/H Scrap Cable Granulator Machine

Recycling Rate 99% 100kg/H Scrap Cable Granulator Machine

Product Details:

Place of Origin: Zhengzhou, China
Brand Name: TMS
Certification: CE, CO, ISO
Model Number: 300

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: USD7100-7400 per set
Packaging Details: Ply wooden case
Delivery Time: 15 work days after receiving the deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 Set/Sets per month
Get Best Price Contact Now

Detail Information

Name: Scrap Cable Granulator Machine Material: Scrap Wires/cable
Function: Recycle Copper Power Input: 12.24kw
Purity Rate: 99% Production: 60-100 Kg/h
Size: 1.36*1.3*1.915m Wire Diameter: 0.1-20mm
High Light:

100kg/H Scrap Cable Granulator Machine


99% Scrap Cable Granulator Machine


100kg/H home wire granulator

Product Description

Eco-Firendly 99% Recycling Rate Scrap Cable Granulator Machine

Recycling Rate 99% 100kg/H Scrap Cable Granulator Machine 0

Brife introduction of scrap cable granulator machine

For most recyclers, copper/aluminum wire is only one part of their scrap and controlling production cost is also an important thing, so we push out this mini copper wire granulator. It is specially designed for small-scale wire recycling. With low cost, simplified structure, good operating experience and easy maintenance, this model has been inquired and purchased by more and more customers worldwide.

Scrap cable granulator is a kind environmental protection type machinery, also called as copper wire granulator machine. Copper wire granulator machine is used for recycling scrap cable wires to separated copper and plastic through crushing, air separation or electrostatic separation process, without using fire, water or chemical, thus no secondary pollution to the environment.

Working process of scrap cable granulator machine

Scrap cable granulator machine can crush waste copper cable or wire into 1-5 mm granules mixed with plastic(PVC)&copper.Then use air, specific gravity and electrostatic separation technique to separate copper and plastic.So that the copper and plastic can be both recycled, greatly increasing their application valuesBy using totally dry-type physical separating technique there will be no environment pollution during the whole process and the separating ratio can be reach 99%, which you could see no copper in plastic and no plastic in copper

Features of scrap cable granulator machine

1. Eco-friendly equipment: Each copper recycling machine is equipped with a dust collection device, so the recycling process does no harm to environment.
Easy operation: PLC control system, highly automatic, high efficiency.

3. Recycling rate is up to 99%.
4. Cover a small area: The structure of the machine is compact. In addition, it’s easy to install a copper recycling machine.
5. High-quality spare parts, long service life. The blade is made of high-quality alloy steel or D2.

Appication of scrap cable granulator machine

Scrap cable granulator machine is mainly used to recycle different types of cable wires, such as all kinds of automotive circuit cable lines, communication cable lines and various waste wires that are not suitable to be processed by stripping machines. Like: computer wires, automobile wires, tele-communication cables, electric telephone wiresThe functions of these cable recycling system include pre-shredding, steel removal, granulation and separation of plastics from copper or aluminum. The advanced design of these plants results in excellent separation of the different fractions, even when processing mixed cables of varying size and composition.

Specifications of scrap cable granulator machine

Model Size Capacity Wire diameter range Power Volage Wight

1360*1300*1915 mm

60-100 kg/h 0.1-20 mm 12.24 kw 380/240V 1220kg
TMS-400 2700*1900*2300 mm 150-200 kg/h 0.1-20 mm 23.12 kw 380/240V 1200kg

4300*1950*2400 mm

300-400 kg/h 0.1-20 mm 52.36 kw 380/240V 3400kg

9200*4100*3540 mm

500-600 kg/h 0.1-30 mm 71.86 kw 380/240V 4100kg

Recycling Rate 99% 100kg/H Scrap Cable Granulator Machine 1
