Flat Die 200mm 200kg/H 300kg/H Biomass Pellet Machine

Flat Die 200mm 200kg/H 300kg/H Biomass Pellet Machine

Product Details:

Place of Origin: Zhengzhou, China
Brand Name: TMS
Certification: CE, ISO
Model Number: 200C

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD1800-1850 per set
Packaging Details: Exported ply wooden case for diesel pellet mill
Delivery Time: 7-15 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 sets per month
Get Best Price Contact Now

Detail Information

Name: Animal Feed Pellet Mill Main Function: Make Feed Pellet
Pellet Output: 200-300kg/h Power: 15HP
Dimension: 1450*550*850mm Material Moisture: 10-12%
Flat Die Diameter: 200mm Pellet Size: 5,6,8mm
High Light:

300kg/H Biomass Pellet Machine


200kg/H Biomass Pellet Machine


300kg/H animal feed pellet mill

Product Description

Flat Die 200mm Pellet Ouput 200-300kg/H Biomass Pellet Mill For Animal Feed

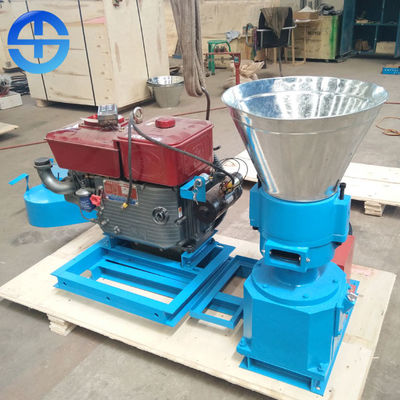

Flat Die 200mm 200kg/H 300kg/H Biomass Pellet Machine 0

Introduction of animal feed pellet mill

Animal feed pellet mill turns the raw materials into the high-efficient biomass fuel. What's more, the conversion of raw material into more energy-dense forms facilitates transport, storage and use through the rest of the value chain. The future of the biomass is on continuous developing.

Wood pellet is easy to store and produce a minimal amount of ash. Wood pellets are environmentally-friendly. They are a sustainable fuel source

Features of animal feed pellet mill
1. Driven by a diesel engine makes pellet production available especially in the rural area with shortage supply of electricity. The customers who don't have 3 phase also can choose this type machine, which is convenient.

2. Adopt rotating rollers and stationary die design. Ensure the quality of pellets and production rate of pellets.

3. The pelleting process is visible, so it is convenient to solve problems in time.

Materials of animal feed pellet mill

The suitable raw materials for making feed pellets include bean pulp, maize, grass, wheat bran, rice hull, straw, silage, etc. Pelleted feed made by the flat die pellet mill can be stored for a long time. It can shorten the period of feeding, so it can efficiently guarantee many users' productive cost. Feed pellets are mainly adopted to feed cattle, chicken, pig, rabbits and other animals.

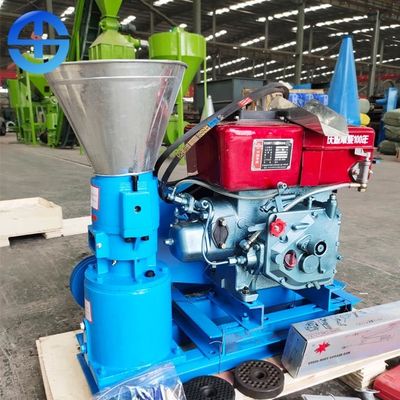

Flat Die 200mm 200kg/H 300kg/H Biomass Pellet Machine 1

Principle of animal feed pellet mill

When the animal feed pellet mill is working, the stirred raw materials are continuously and smoothly fed into the feeding chamber, and the feeding scraper evenly spreads the materials on the flat die surface, At the same time, the spindle drives the press roll to rotate. Because of the friction between the press roller, the flat die and the raw material, the pressure roller rotates around the roller shaft again, and the material is forced to squeeze into the hole of the flat die due to the extrusion force generated by the rotation of the press roll, When the material overcomes the friction resistance, the material to be formed will be continuously extruded out of the flat die hole. Finally, the cutter installed on the main shaft is cut into a certain length of pelles according to the required length, and finally thrown out from the discharge plate.

Technical parameters of animal feed pellet mill

Model Power Output (kg/h) Dimension (mm) G.W N.W Moisture required
120C 7.6HP 60-100 850*450*750 140kg 120kg 10-18%
150C 8HP 90-120 950*650*750 180kg 160kg 10-18%
200C 15HP 200-300 1450*550*850 280kg 260kg 10-18%
230C 22HP 300-400 1800*560*1050 450kg 430kg 10-18%
260C 30HP 400-600 1800*560*1050 500kg 480kg 10-18%
300C 55HP 600-800 2100*590*1200 720kg 700kg 10-18%
400C 55HP 800-1200 2200*640*1400 780kg 750kg 10-18%
