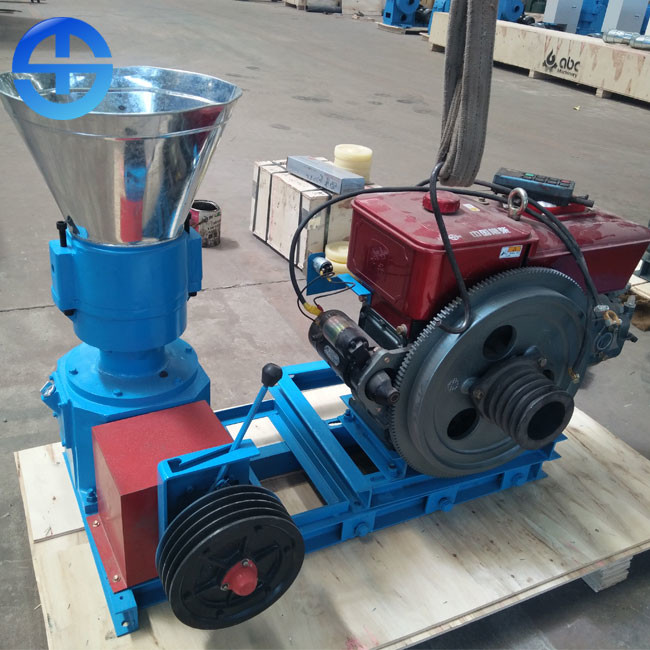

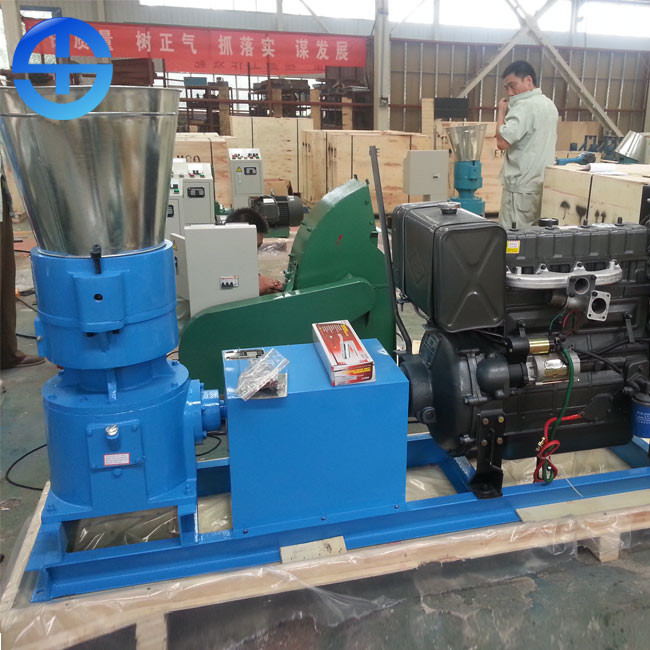

Diesel Electric 300mm Flat Die 400kg/H Grass Pellet Machine

Diesel Electric 300mm Flat Die 400kg/H Grass Pellet Machine

Product Details:

Place of Origin: Zhengzhou, China
Brand Name: TMS
Certification: CE, ISO
Model Number: 300C

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD4470-4850 per set
Packaging Details: Exported ply wooden case for grass pellet machine
Delivery Time: 7 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 sets per month
Get Best Price Contact Now

Detail Information

Name: Grass Pellet Machine Main Function: Make Animal Feed Pellet
Pellet Output: 600-800kg/h Power: 55HP
Dimension: 2100*590*1200mm Material Moisture: 10-18%
Flat Die Diameter: 300mm Pellet Size: 2,5,6mm
High Light:

400kg/H Grass Pellet Machine


300mm Grass Pellet Machine


400kg/H flat die pellet mill

Product Description

Diesel Electric 600-400kg/H 300mm Flat Die Grass Pellet Machine


Description of grass pellet machine


Grass pellet machine turns the raw materials into the high-efficient biomass fuel. What's more, the conversion of raw material into more energy-dense forms facilitates transport, storage and use through the rest of the value chain. The future of the biomass is on continuous developing.

Wood pellet is easy to store and produce a minimal amount of ash. Wood pellets are environmentally-friendly. They are a sustainable fuel source


Technical parameters of grass pellet machine


Model Power Output (kg/h) Dimension (mm) G.W N.W Moisture required
120C 7.6HP 60-100 850*450*750 140kg 120kg 10-18%
150C 8HP 90-120 950*650*750 180kg 160kg 10-18%
200C 15HP 200-300 1450*550*850 280kg 260kg 10-18%
230C 22HP 300-400 1800*560*1050 450kg 430kg 10-18%
260C 30HP 400-600 1800*560*1050 500kg 480kg 10-18%
300C 55HP 600-800 2100*590*1200 720kg 700kg 10-18%
400C 55HP 800-1200 2200*640*1400 780kg 750kg



Features of grass pellet machine


1. The utility model has the advantages of novel structure, simple operation, wide adaptability, small floor area and low noise.

2. Powder feed and grass powder can be pelletized without adding or a little liquid, and part of moisture will be lost during granulation process, so the moisture content of pellet feed is lower than that of material before granulation, which is more convenient for storage.

3. Chicken, duck, fish, etc. can obtain higher economic benefits than the mixed powder feed.

4. Dry material processing can produce feed particles with high hardness, smooth surface and internal ripening, which can improve the digestion and absorption of nutrients.

5. It can be produced with adjustable length and diameter of Φ 3 mm-6 mm. Grass powder particles, grain grains and mixture particles can be processed.

6. The process of granule formation can denaturate the trypsin resistance factors in grains and beans, reduce the adverse effects on digestion, kill various parasitic eggs and other pathogenic microorganisms, and reduce various kinds of raw insects and digestive system diseases.


Application of grass pellet machine


(1). Livestock and poultry's waste,tea waste,tea waste,forestry wastes,forestry wastes,wood chips and many other organic waste resources.

(2). All kinds of wood waste or agro-forestry waste can be used,such as:Wood waste,scobs,branch,palm tree,sugarcane residue,sawdust,medical slag,hay,discarded edible fungus bags.Bean stalk,wheat stalk,corn stalk,cotton stalks,sunflower stalks,mustard stalk,rice stalks,coffee husk,cotton shell,peanut shell,rice shell,coconut shell.


Selection of grinding plate


According to our customers' accumulated experience for many years, the types of animals cultured are different, and the grinding holes of grass pellet machine plates are also different. We provide a variety of sizes for your choice. (the length of pellet material can be adjusted freely by customers)

1. 2.0mm grinding plate is breeding: parrot, thrush, sparrow, and other pet birds. (to be customized)

2. 2.5mm grinding plate is used for breeding: young rabbits, chickens, ducks, geese, pigeons, birds, peacocks, fish and other small animals. (to be customized)

3. 3-4mm grinding plate is for breeding: rabbit, chicken, duck, goose, pigeon, bird, peacock, aquatic fish, etc

4. 5-6 mm grinding plate is for breeding: pig, cattle, sheep, dog, pig, horse.

5. If there are special requirements, please note the diameter requirements of the grinding disc of the granulator, and we will install, debug and deliver according to your requirements.

6. The size of the diameter of the grinding plate of the feed granulator is a kind of grinding plate according to the customer's requirements. Please hand in the grinding plate with us

In the process of flow, tell us what kind of animal you breed and the size of the animal. In this way, we can recommend the most suitable size for you.
