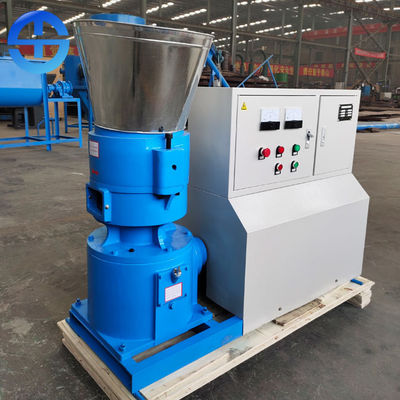

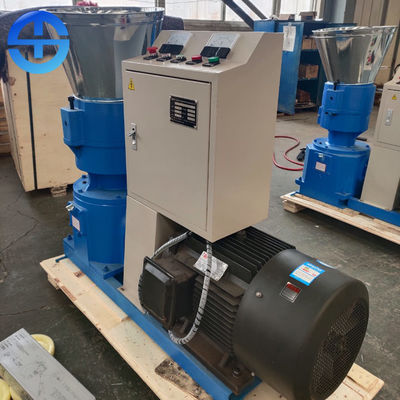

Dry In Dry Out Pellet Size 5mm 6mm Cattle Feed Pellet Machine

Dry In Dry Out Pellet Size 5mm 6mm Cattle Feed Pellet Machine

Product Details:

Place of Origin: Zhengzhou, China
Brand Name: TMS
Certification: CE, ISO
Model Number: 260

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD1850-2000 per set
Packaging Details: Exported ply wooden case for cattle pellet machine
Delivery Time: 10 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 60 sets per month
Get Best Price Contact Now

Detail Information

Name: Cattle Pellet Machine Function: Making Cattle Pellet
Output: 400-600kg/h Motor Power: 15kw
Machine Size: 1240*540*1000mm Material Moisture: 10-18%
Mould Type: Flat Die Pellet Size: 5-6mm
High Light:

Pellet 6mm Cattle Feed Pellet Machine


Pellet 5mm Cattle Feed Pellet Machine


Pellet 5mm cattle feed making machine

Product Description

Dry In Dry Out 5-6mm Pellet Size 15kw Cattle Feed Pellet Machine


Description of cattle pellet machine


Cattle pellet machine is mainly used for animal feed and organic fertilizer pressing. It mainly uses sawdust, straw, weeds, bean straw, peanut skin and sweet potato seedling as the main raw materials. After extrusion molding, the 260 series pellet feed machine is powered by three-phase motor, with a grinding plate diameter of 260mm, high efficiency and large production. The equipment is used for small and medium-sized farms It can be used by material factory and fertilizer processing enterprise.


Technical datas of cattle pellet machine


Model Power Output (kg/h) Dimension (mm) G.W N.W Moisture required
120 2.2/3kw 60-100 750*320*680 100kg 80kg 10-18%
150 4kw 90-120 800*450*700 110kg 91kg 10-18%
200 7.5kw 200-300 1050*480*990 230kg 200kg 10-18%
230 11kw 300-400 1180*540*1000 320kg 290kg 10-18%
260 15kw 400-600 1240*540*1000 360kg 320kg 10-18%
300 22kw 600-800 1300*560*1100 450kg 410kg 10-18%
400 30kw 800-1200 1560*640*1400 700kg 660kg 10-18%


Main Features of cattle pellet machine


1). Powder feed and grass powder can be pelletized without adding or a little liquid, and part of moisture will be lost during granulation process, so the moisture content of pellet feed is lower than that of material before granulation, which is more convenient for storage.

2). This cattle pellet machine uses shaft drive to make pellets without belt. Using high technology, it has a lot of foresight than the original belt drive. This machine does not need to add any water to make pellets, which belongs to the type of dry in and dry out. At the time of manufacturing, we use it for those small-scale farms. At the same time, the granules can be kept for a long time, and it is not a problem for more than half a year.

4.Dry material processing can produce feed pellets with high hardness, smooth surface and internal ripening, which can improve the digestion and absorption of nutrients.

5. It is easy to adjust the length of the pellets. It has the advantages of simple structure, small floor area and low noise. It can be operated by 220 V single-phase power. It is suitable for small-scale farmers who lack three-phase electricity.


Option of grinding plate of cattle pellet machine


According to our customers' accumulated experience for many years, the types of animals cultured are different, and the grinding holes of grass pellet machine plates are also different. We provide a variety of sizes for your choice. (the length of pellet material can be adjusted freely by customers)

1. 2.0mm grinding plate is breeding: parrot, thrush, sparrow, and other pet birds. (to be customized)

2. 2.5mm grinding plate is used for breeding: young rabbits, chickens, ducks, geese, pigeons, birds, peacocks, fish and other small animals. (to be customized)

3. 3-4mm grinding plate is for breeding: rabbit, chicken, duck, goose, pigeon, bird, peacock, aquatic fish, etc

4. 5-6 mm grinding plate is for breeding: pig, cattle, sheep, dog, pig, horse.
