3 Ton Per Day AC Radiator Recycling Machine For Copper Pipe

3 Ton Per Day AC Radiator Recycling Machine For Copper Pipe

Product Details:

Place of Origin: Zhengzhou, China
Brand Name: TMS
Certification: CE, ISO
Model Number: TMS-017

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: USD5950-6300 per set
Packaging Details: Ply wooden case which meet export standard for AC radiator recycling machine
Delivery Time: 7 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 sets per month
Get Best Price Contact Now

Detail Information

Name: AC Rdiator Recycling Machine Application: AC Radiators
Main Function: Recycle Copper Pipes Motors: 3 Kw+4 Kw
Productivity: 2-3 Ton/day Measure: 1.8*0.8*1.2m
Gross Weight: 650kg Power Supply: 380V/50HZ, 3 Phase Or Customized
High Light:

3 Ton Per Day AC Radiator Recycling Machine

,

2TPD AC Radiator Recycling Machine

,

3 Ton Per Day Wire recycling machine

Product Description

2-3 Ton Per Day AC Radiator Recycling Machine For Copper Pipe



Introduction of AC radiator recycling machine



Air conditioner radiators are almost exclusively made of copper pipe and aluminum fin. To recycle scrap AC radiator, copper and aluminum are to be separated to get a higher price. Our radiator recycling machine is designed to separate complete copper pipe from aluminum fin. Our radiator recycling plant can crush whole radiators to recycle metal pieces separately.

AC radiator recycling machine is designed to separate the scrap radiator for recycling copper and aluminum with high efficiency and stable performance. There are three kinds of blade center distance: 19mm, 21mm and 25mm; that is to say it can strip the radiator whose copper tube center distance is 19mm, 21mm or 25mm.



Specifications of AC radiator recycling machine



Model TMS-17
Measure 1.8*0.8*1.2m
Productivity 2-3 ton/day
Motors 3kw & 4kw
Gross Weight 650kg
Power supply 380V/50HZ, 3Phase or Customized



Advantage of AC radiator recycling machine



1. Compact structure, taking up small area.
2. No damage to copper pipe, no copper loss.
3. Safe and easy operation, high efficiency.
4. Center distance can be tailor-made to fit your conditions.



Material Preparation of AC radiator recycling machine


1. Iron heads of radiators must be cut off the two sides of radiators;

2. Radiators must be cut with a band saw according to the width of each Material Inlet;

3. Radiators that are more than 2 layers must be cut into one layer and two layers with the band saw;

4. Do not feed radiators into wrong Material Inlets (three inlets each are for 19mm, 21mm, 25mm radiators respective);

5. When two-layer radiators are processed, the left side of the radiators shall touch the left side of each Material Inlet, and the first copper pipe in the Upper Layer to the left side of each Material Inlet must be nearer than the first copper pipe in the Lower Layer to the Left Side of each Material Inlet.

6. For both one-layer and two-layer radiators, the left side of radiators must touch the Guiding Rulers and are radiators must be fed into Material Inlets along the guiding rulers.

7. When radiators are fed into Material Inlets correct, each Feeding Gear at the Material Inlet must be at the middle of each two copper pipes; or copper pipes and aluminum will not be separated.

8. Twisted radiators can not be processed.


Trouble-shooting of AC radiator recycling machine

1. In radiator separating, if radiators move towards left direction or right direction, check if the two Adjusting Wheels of each pair are on the same level.

2. When abnormal noise appears in working, check the working conditions of transmission gears, bearings and Speed Reducer as well as motors.

3. When radiators can not be cut from top to bottom, check if Triangle Belts are loose which causes slipping; or check if the blades become blunt.

4. After working for a period, Speed Reducer lubricant shall be replaced; check if screws become loose or not; check if blades and Feeding Gears become loose or not.

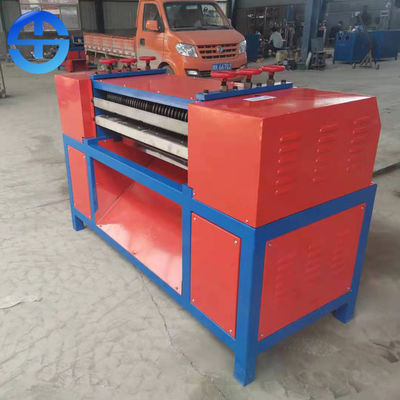

3 Ton Per Day AC Radiator Recycling Machine For Copper Pipe 0

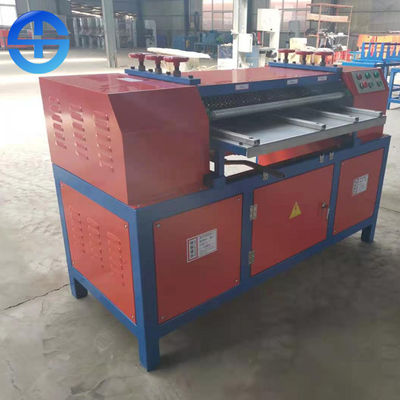

3 Ton Per Day AC Radiator Recycling Machine For Copper Pipe 1
