125 Ton Pressure 300*300mm Bale Size Hydraulic Scrap Metal Baler

Minimum Order Quantity : 1 set Price : USD13500-14200 per set
Packaging Details : Full container 20'GP or 40'GP for hydraulic metal baler Delivery Time : 15 work days
Payment Terms : L/C, T/T, Western Union Supply Ability : 20 sets per month
Place of Origin: Zhengzhou, China Brand Name: TMS
Certification: CE, ISO Model Number: 1250

Detail Information

Name: Hydraulic Metal Baler Function: Extrude Scraps Into Various Shape Bale
Application: Scrap Copper, Iron, Aluminum Etc Motor Power: 15kw
Pressure: 125T Bale Size: 300*300mm
Material Box: 1200*700*600mm Pump: YCY-63
High Light:

125 Ton Hydraulic Scrap Metal Baler


300*300mm Hydraulic Scrap Metal Baler


125 Ton metal baler machine

Product Description

125 Ton Pressure 300*300mm Bale Size Hydraulic Scrap Metal Baler


Overview the hydraulic metal baler


Hydraulic metal baler can extrude various kinds of relatively large scrap metal, scrap steel, scrap iron, scrap copper, scrap aluminum, disintegrate car shell, waste oil drum into cuboid, cylinder, octagonal shape and other qualified furnace charge. In order to facilitate storage, transportation and recycling. After being put into the furnace, the pressing loss is lower. The whole production process does not need heating, additives or other processes, direct cold pressing molding, forming at the same time also ensure the original material unchanged. For example, cast iron scrap is used instead of cast pig iron after forming. For castings of special material, recycling is more significant.


Technical date of hydraulic metal baler
Model 1250
Nominal pressure 125T
Motor Power 15kw
Pump YCY-63
Material box size 1200*700*600mm
Bale size 300*300mm Also can be customized according to customer requirements
Bale-out mode Turn over / manual
Bale density ≥1800kg/m3
Production efficiency 10-20 Ton / 8 hours


Working principle of hydraulic metal baler


The basic principle of hydraulic metal baler is to use the metal material under the action of external force, which can produce plastic deformation, and give metal material enough external force which can gather and produce deformation, so as to form compact bundle. Therefore, the metal which can not produce plastic deformation or has little plastic deformation can not be packaged directly. For example, high carbon steel, tool steel, steel wire rope and cast iron can not be directly packed into the machine for packing.


Application of metal baler machine


Application scope: waste recycling station, recycling center, enterprise customers, steel plant

Materials: iron / steel: scrap iron, light and thin materials, scrap, car shell, scrap, waste oil bucket, bicycle frame, lathe chips, shavings, iron chips, steel chips, color steel tiles, stainless steel.

Scrap aluminum: aluminum chips, aluminum shavings, aluminum profiles, doors and windows, cans, aluminum foil, aluminum alloy.

Scrap copper: copper wire, copper plate, copper scrap, copper shavings, copper wire


Features of hydraulic metal baler


1. All models are driven by hydraulic pressure and can be operated manually or controlled automatically by PLC.

2. The methods of bale-out include turning, side pushing, forward pushing and manual picking.

3. A variety of models are available: different pressure, material box size, bale size and shape.

4. Where there is no power supply, diesel engine can be used as power.

5. It is safe and reliable, easy to operate and maintain.


Use of hydraulic metal


1. After pressing, the transportation of metal is convenient, which can reduce the transportation cost and increase the transportation efficiency;

2. After pressing, the metal is easy to be broken for secondary treatment;

3. Compared with metal, pressed metal is easier to store and can save warehouse space;

4. The pressed metal is convenient for use and reprocessing.


Composition Structure of hydraulic metal baler


The hydraulic metal baler is generally divided into two parts - the main part and the power system. The main engine part is the part of the machine for baling work. According to its function, it is mainly composed of two hydraulic presses installed vertically and horizontally with some auxiliary mechanisms. According to the structure, they are: (1). Body (2). Side cylinder system (3). Master cylinder system (4). Hood system (5). Side door system (6). Locking mechanism.

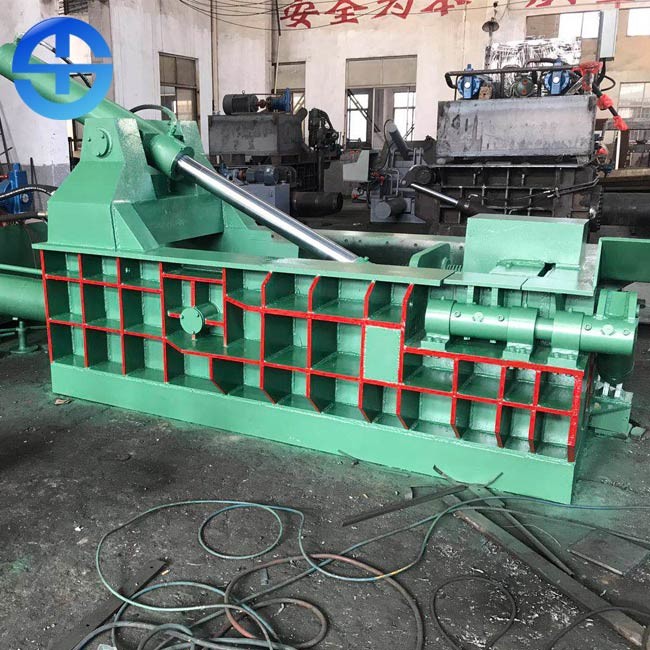

125 Ton Pressure 300*300mm Bale Size Hydraulic Scrap Metal Baler 0

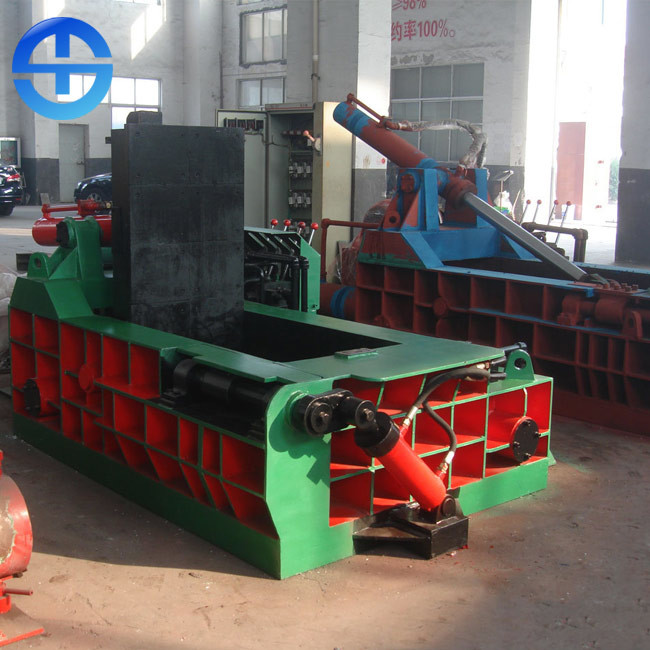

125 Ton Pressure 300*300mm Bale Size Hydraulic Scrap Metal Baler 1
