7.6 HP Pellet Size 5mm 6mm 8mm Grass Pellet Making Machine

7.6 HP Pellet Size 5mm 6mm 8mm Grass Pellet Making Machine

Product Details:

Place of Origin: Zhengzhou, China
Brand Name: TMS
Certification: CE, ISO
Model Number: 120C

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD500-650 per set
Packaging Details: Exported ply wooden case for grass pellet machine
Delivery Time: 10 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 120 sets per month
Get Best Price Contact Now

Detail Information

Name: Grass Pellet Machine Main Function: Make Animal Feed Pellet
Pellet Output: 60-100kg/h Power: 7.6HP
Size: 850*450*750mm Material Moisture: 10-18%
Flat Die Diameter: 120mm Pellet Size: 5,6,8mm
High Light:

8mm Grass Pellet Making Machine


7.6 HP Grass Pellet Making Machine


7.6 HP 8mm grass pellet mill

Product Description

7.6 HP Pellet Size 5mm 6mm 8mm Grass Pellet Machine


Introduction of grass pellet machine

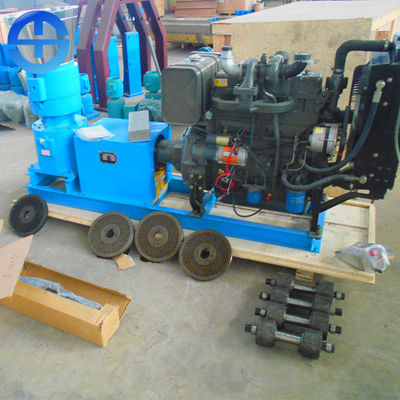

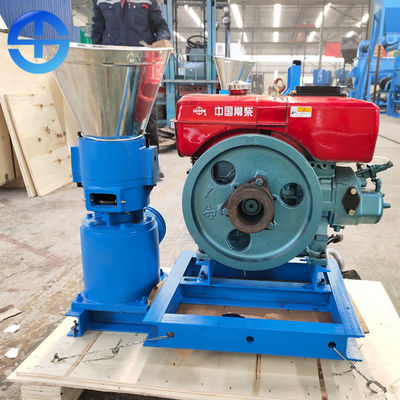

Diesel driven grass pellet machine belongs to another type of feed pellet machine. At present, most feed pellet machine are powered by electricity. However, it may be inconvenient to install 380V motor in some areas, or the feed pellet machine often moves, so diesel powered feed pellet machine will be selected. It can be very convenient to pull the feed pellet machine down to the place with rich raw materials. After the production is completed, the feed pellet machine can be pulled down. The formed pellet feed is pulled back to reduce the cost of transporting raw materials.

Diesel powered feed pellet machine is widely used in mountainous areas or places far away from electric power resources. It is mainly used for the processing and production of crop straw. The pellet feed produced is used for the breeding of chickens, ducks, fish, cattle, sheep, pigs and other animals as well as feed reserve.


Technical data of grass pellet machine


Model HP Output (kg/h) Size (mm) G.W N.W Moisture required
120C 7.6HP 60-100 850*450*750 140kg 120kg 10-18%
150C 8HP 90-120 950*650*750 180kg 160kg 10-18%
200C 15HP 200-300 1450*550*850 280kg 260kg 10-18%
230C 22HP 300-400 1800*560*1050 450kg 430kg 10-18%
260C 30HP 400-600 1800*560*1050 500kg 480kg 10-18%
300C 55HP 600-800 2100*590*1200 720kg 700kg 10-18%
400C 55HP 800-1200 2200*640*1400 780kg 750kg 10-18%


Features of grass pellet machine

1. Driven by a diesel engine makes pellet production available especially in the rural area with shortage supply of electricity. The customers who don't have 3 phase also can choose this type machine, which is convenient.

2. Adopt rotating rollers and stationary die design. Ensure the quality of pellets and production rate of pellets.

3. The pelleting process is visible, so it is convenient to solve problems in time.


Raw materials of grass pellet machine


The suitable raw materials for making feed pellets include bean pulp, maize, grass, wheat bran, rice hull, straw, silage, etc. Pelleted feed made by the flat die pellet mill can be stored for a long time. It can shorten the period of feeding, so it can efficiently guarantee many users' productive cost. Feed pellets are mainly adopted to feed cattle, chicken, pig, rabbits and other animals.


Component of grass pellet machine


The first part is the feed pellet machine body part, which is used to support the pellet machine. It is made of high-quality angle steel channel steel, which is strong and durable and will not be damaged generally.

The second part is the motor, the motor adopts pure copper core motor, which has strong power and high efficiency.

The third part is the transmission shaft, which plays a transmission role.

The fourth part is the gearbox, which drives the main shaft inside the body to rotate through gear transmission.

The fifth part is the upper box, in which is the grinding plate and pressure wheel. It is a vulnerable part of the machine by adjusting the nut to press or replace, which should be paid attention to during operation.

Others belong to the supporting products of the machine, such as material outlet, outlet, roller, etc.
