10% Moisture Flat Die 120mm Biomass Pellet Machine

10% Moisture Flat Die 120mm Biomass Pellet Machine

Product Details:

Place of Origin: Zhengzhou, China
Brand Name: TMS
Certification: CE, ISO
Model Number: 300

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD2550-2680 per set
Packaging Details: Exported ply wooden case for feed pellet machine
Delivery Time: 7 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 sets per month
Get Best Price Contact Now

Detail Information

Name: Feed Pellet Machine Function: Making Animal Feed
Productivity: 600-800kg/h Power Supply: 22kw
Machine Dimension: 1300*560*1100mm Material Moisture: 10-18%
Die Type: Flat Die G. W: 450kg
High Light:

120mm Biomass Pellet Machine

,

10% Moisture Biomass Pellet Machine

,

10% Moisture biomass wood pellet machine

Product Description

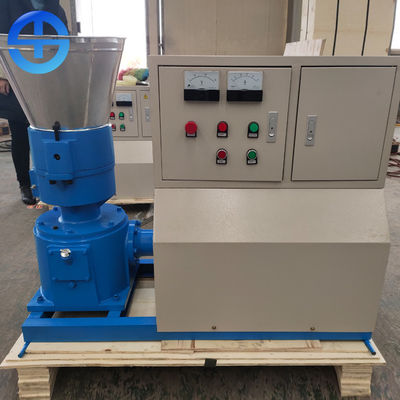

10% Moisture Flat Die 120mm Biomass Pellet Machine



10% Moisture Flat Die 120mm Biomass Pellet Machine 0

Description of feed pellet machine

Feed pellet machine is a kind of feed processing machinery which uses corn, soybean meal, straw, grass and rice husk as raw materials and directly pressed into pellets after crushing raw materials. It is mainly used in grain and feed processing plants, animal farms, poultry farms, individual farmers and small and medium-sized farms, farmers or large, medium and small-sized feed processing plants. With the popularization and popularization of artificial compound feed in animal husbandry, feed pellet machine provides a strong driving force for the development of animal husbandry. More and more farmers buy feed pellet machine to process and produce pellet feed by themselves. Axial feed pellet machine has become the ideal equipment for feed processing of specialized farmers and small and medium-sized farmers.

Advantage of feed pellet machine

1. The machine adopts cylindrical helical gear direct transmission, with high transmission efficiency

2. The carburizing treatment is adopted for the gear of the pellet machine to enhance the wear resistance, and the normalizing heat treatment after water forging improves the hardness of the tooth surface

3. The main shaft is processed by water forging, rough turning, heat treatment, fine turning and fine grinding, which improves the fatigue resistance and wear resistance of the components

4. The feed pellet machine body is made of precision casting with compact structure and uniform thickness

5. The machine uses the silent bearing, and increases the thin oil circulation cooling lubrication system, the bearing service life is longer, the movement is more stable

6. Powder feed and grass powder can be pelletized without adding or a little liquid, and part of moisture will be lost during granulation process, so the moisture content of pellet feed is lower than that of material before granulation, which is more convenient for storage.

Accessories and operation process of feed pellet machine

The principle of feed pellet machine is simple, and the accessories of conventional pellet machine mainly include: motor, coupling, reducer, spindle, press roll, die plate, hopper, discharge port, control box, etc.

After the power supply is connected, the feed pellet machine is started through the control box. At this time, the motor rotates, and the reducer is driven to rotate through the coupling, thus driving the spindle to rotate. The press roll is fixed on the main shaft, and the press roll rotates with it to fit the die plate. When the material enters the machine body through the hopper, it is extruded through the gap between the pressure roller and the die plate, and then is extruded through the die plate hole. The feed pellet machine has few components and is mainly based on the principle of circular motion. The operation process is simple and easy to operate.

Technical parameters of feed pellet machine

Model Power Output (kg/h) Dimension (mm) G.W N.W Moisture required
120 2.2/3kw 60-100 750*320*680 100kg 80kg 10-18%
150 4kw 90-120 800*450*700 110kg 91kg 10-18%
200 7.5kw 200-300 1050*480*990 230kg 200kg 10-18%
230 11kw 300-400 1180*540*1000 320kg 290kg 10-18%
260 15kw 400-600 1240*540*1000 360kg 320kg 10-18%
300 22kw 600-800 1300*560*1100 450kg 410kg 10-18%
400 30kw 800-1200 1560*640*1400 700kg 660kg 10-18%

10% Moisture Flat Die 120mm Biomass Pellet Machine 1
