Pellet Size 5mm 6mm Flat Die Animal Pellet Machine

Pellet Size 5mm 6mm Flat Die Animal Pellet Machine

Product Details:

Place of Origin: Zhengzhou, China
Brand Name: TMS
Certification: CE, ISO
Model Number: 200

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD1220-1300 per set
Packaging Details: Exported ply wooden case for animal pellet machine
Delivery Time: 7 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 sets per month
Get Best Price Contact Now

Detail Information

Name: Animal Pellet Machine Usage: Making Dog Feed
Output: 200-300kg/h Motor: 7.5kw
Machine Size: 1050*480*990mm Moisture Required: 10-18%
Flat Die: 200mm Gross Weight: 200kg
High Light:

5mm Animal Pellet Machine


6mm Animal Pellet Machine


6mm dog food pellet making machine

Product Description

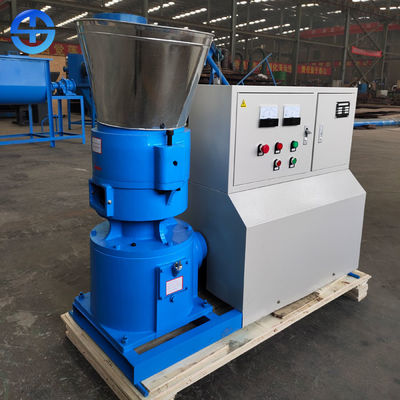

Pellet Size 5mm 6mm Flat Die Animal Pellet Machine

Pellet Size 5mm 6mm Flat Die Animal Pellet Machine 0

Description of animal pellet machine

Animal pellet machine is a kind of feed processing machinery which uses corn, soybean meal, straw, grass and rice husk as raw materials and directly pressed into pellets after crushing raw materials. It is mainly used in grain and feed processing plants, animal farms, poultry farms, individual farmers and small and medium-sized farms, farmers or large, medium and small-sized feed processing plants. According to different raw materials and uses, feed pellet processing machinery is also known as straw feed pellet machine, small feed pellet machine, breeding feed pellet machine, household pellet processing equipment, pig feed pellet machine and so on. Feed pellet processing machinery is recognized by more and more farmers.

Work principle of animal pellet machine

When the machine is working, the roller and the die move relative to each other to clamp, compress and compact the material into the die hole, and then form particles or blocks through the die cavity and cutting. There are two kinds of transmission modes for flat die granulator: one is that the press roll frame is fixed on the shell, and the main shaft drives the press die to run actively while the press roll is passive; the other is that the press die is fixed, and the main shaft drives the press roll frame to run, and the press roll rotates at the same time. Although the two transmission modes are different, their working principles are the same.

Features of animal pellet machine

1. Dry in and dry out, without drying (the moisture content of raw materials is not less than 13% of the national export volume moisture standard). Differential, universal joint transmission, with motor or diesel engine. Low energy consumption, high output, easy operation.

2. It can produce ball type pure organic fertilizer, organic-inorganic fertilizer and bio organic fertilizer with uniform, smooth and round particles, high strength and good fluidity.

3. The three in one machine with unique technology is used to complete the whole process of low temperature drying, cooling and screening at one time, with less equipment investment and low operation cost. The survival rate of microorganism was more than 90%.

4. It is widely used in animal husbandry, small and medium-sized breeding plants, feed factories, brewing, sugar making, paper making, medicine, tobacco and other industries. It is the ideal equipment for (biological) organic fertilizer production enterprises.

Technical datas of animal pellet machine

Model Power Output (kg/h) Machine size (mm) G.W N.W Material moisture
120 2.2/3kw 60-100 750*320*680 100kg 80kg 10-18%
150 4kw 90-120 800*450*700 110kg 91kg 10-18%
200 7.5kw 200-300 1050*480*990 230kg 200kg 10-18%
230 11kw 300-400 1180*540*1000 320kg 290kg 10-18%
260 15kw 400-600 1240*540*1000 360kg 320kg 10-18%
300 22kw 600-800 1300*560*1100 450kg 410kg 10-18%
400 30kw 800-1200 1560*640*1400 700kg 660kg 10-18%

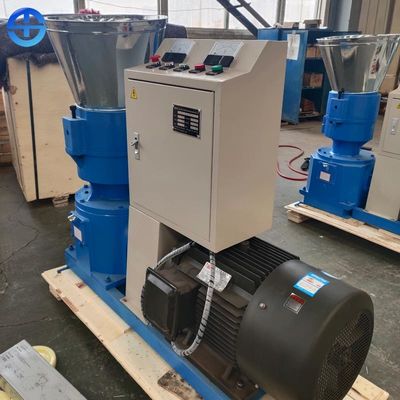

Pellet Size 5mm 6mm Flat Die Animal Pellet Machine 1
