1600KN Pressure Bale Size 300*300mm Scrap Metal Baler

1600KN Pressure Bale Size 300*300mm Scrap Metal Baler

Product Details:

Place of Origin: Zhengzhou, China
Brand Name: TMS
Certification: CE, ISO
Model Number: 1600

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD16700-17460 per set
Packaging Details: Full container 40'GP for scrap metal baler
Delivery Time: 10 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 25 sets per month
Get Best Price Contact Now

Detail Information

Item: Scrap Metal Baler Function: Press Metal Into Bale
Power: 22kw Nominal Pressure: 1600KN
Material Box: 1200*800*550mm Bale Size: 300*300mm
Bale Weight: 80-100kg Bale Out: Turn Over
High Light:

300*300mm Scrap Metal Baler

,

1600KN Pressure Scrap Metal Baler

,

1600KN Pressure hydraulic metal baler

Product Description

1600KN Pressure Bale Size 300*300mm Scrap Metal Baler



Introduction of scrap metal baler



Scrap metal baler can extrude all kinds of metal wastes (scrap, shaving, scrap steel, scrap aluminum, scrap copper, scrap stainless steel, scrap car, etc.) into qualified charges of cuboid, octagonal, cylinder and other shapes, which can not only reduce the transportation and smelting costs, but also improve the charging speed. This series of balers are mainly used in steel plant, recycling industry, nonferrous metal and ferrous metal smelting industry.



Technical parameters of scrap metal baler

Model 1300B
Nominal pressure 1300KN
Power 22kw
Pump YCY-160+ YCY-160
Material box size 1200*800*550mm
Bale size 300*300mm
Bale-out mode Turn over / manual
Bale density ≥1800kg/m3
Production efficiency 1.2-1.5 ton / hour



Feature of scrap metal baler



1. All models are driven by hydraulic pressure and can be operated manually or controlled automatically by PLC.

2. The methods of bale-out include turning, side pushing, forward pushing and manual picking.

3. A variety of models are available: different pressure, material box size, bale size and shape.

4. Where there is no power supply, diesel engine can be used as power.

Note: the size of material box and bale can be customized according to the actual needs of customers.



Structure composition of scrap metal baler



The hydraulic baler is composed of main frame system, hydraulic system and auxiliary components.

Hydraulic packer frame system: high quality thickened steel plate, gas welding, casting solid frame, advanced mechanical design makes the equipment durable.

Hydraulic system of hydraulic packer: hydraulic pump, solenoid valve, oil seal of hydraulic cylinder and other key components use imported accessories, which makes the packing pressure high, fast, durable and low noise.

Hydraulic packer electric control system (optional): original domestic electrical control, travel switch, button, ensure quality



Principle of scrap metal baler



The basic principle of scrap metal baler is to use the nature that metal material can produce plastic deformation under the action of external force to give metal material enough (baler), external force that can gather and produce permanent deformation, so as to form a compact bundle. Therefore, the plastic deformation can not be produced, or the metal with small plastic deformation can not be directly baled. For example, high carbon steel, tool steel, steel wire rope and cast iron can not be directly baled.

Basic requirements of scrap metal baler

(1) There should be enough extrusion force. It can make the treated metal material produce plastic deformation bale and make the bale reach a certain required density.

(2) There should be a material box that can hold metal materials and can be closed to bear extrusion pressure. On the premise of meeting these two basic requirements, and according to different application requirements and different processing objects, there are many different types of scrap metal balers. The working principle of scrap metal baler is to use the working force to push the ram to extrude the metal material in a closed material box, so that the metal material can form a bale with a certain size and density.

1600KN Pressure Bale Size 300*300mm Scrap Metal Baler 0

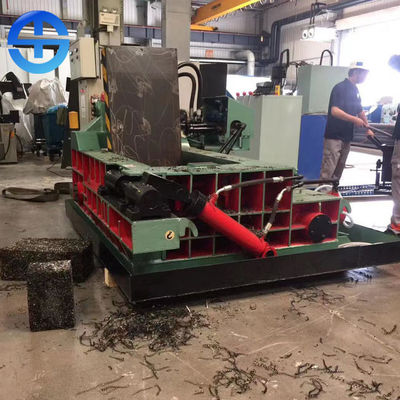

1600KN Pressure Bale Size 300*300mm Scrap Metal Baler 1
