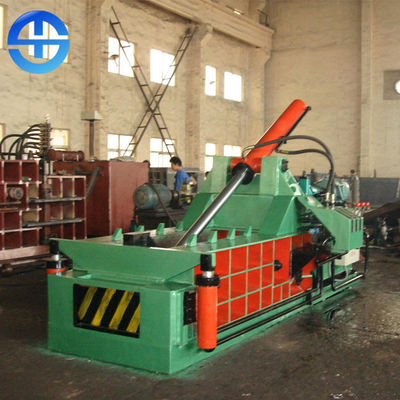

Technical datas of metal baler machine
| Sr. No. |
Type name |
Model or Data |
| Main cylinder |
Cover cylinder |
Cylinder of Bale-out |
| 1 |
Nominal pressure |
1350KN |
500KN |
300KN |
| 2 |
Inner diameter of cylinder |
φ255mm |
φ160mm |
2*φ110mm |
| 3 |
Piston diameter |
φ180mm |
φ105mm |
φ70mm |
| 4 |
Stroke |
1700mm |
1360mm |
260mm |
| 5 |
System Max.pressure |
25Mpa |
25Mpa |
15Mpa |
| 6 |
Bale density |
≥2.0 t/m3 (Lightweight material) |
| 7 |
Motor Power |
22KW |
| 8 |
Oil Pump |
80YCY14-1B |
| 9 |
Single cycle time |
90 seconds (no-load) |
| 10 |
Material box size |
1400*600*600mm |
| 11 |
Bale size |
250*(250-500)*600mm |
| 12 |
Bale weight |
80-120kg |
| 12 |
Bale-out |
Forward out |
| 13 |
Operation mode |
Manual |
| 14 |
Productivity |
1-2 ton / hour (scrap iron) |
| 15 |
Machine size |
4150*1900*1900mm |
| 16 |
Other |
1. There are blades on both sides of door cover and material box
2. The whole machine is free of installation
|
Application of metal baler machine
Materials: iron / steel: scrap iron, light and thin materials, scrap, car shell, scrap, waste oil bucket, bicycle frame, lathe chips, shavings, iron chips, steel chips, color steel tiles, stainless steel.
Scrap aluminum: aluminum chips, aluminum shavings, aluminum profiles, doors and windows, cans, aluminum foil, aluminum alloy.
Scrap copper: copper wire, copper plate, copper scrap, copper shavings, copper wire
Features of metal baler machine
1. All models of metal baler machine are hydraulic driven (or diesel driven).
2. The discharging mode of the machine body can be selected from different ways, such as turn over, forward out or taking bale manually.
3. The device is simple and does not need to be fixed. In places without power supply, diesel engine can be used as power.
4. There are ten levels of extrusion force from 63 tons to 400 tons for users to choose, and the output power ranges from 5 tons / shift to 50 tons / shift.
5. The material box is large, and the bale is convenient. The suction cup or hydraulic claw can be used for packing, saving labor cost and reducing production cost.
Structure composition of metal baler machine
The metal baler machine is composed of main frame system, hydraulic system and auxiliary components.
Main frame system: high quality thickened steel plate, gas welding, casting solid frame, advanced mechanical design makes the equipment durable.
Hydraulic system: hydraulic pump, solenoid valve, oil seal of hydraulic cylinder and other key components use imported accessories, which makes the packing pressure high, fast, durable and low noise.
Electric control system (optional): original domestic electrical control, travel switch, button, ensure quality.
