Turn Over Bale Size 450*450mm Metal Baler Machine

Minimum Order Quantity : 1 set Price : Negotiable
Packaging Details : Full container 20'GP or 40'GP for metal baling machine Delivery Time : 20 work days
Payment Terms : L/C, T/T, Western Union Supply Ability : 8 sets per month
Place of Origin: Zhengzhou, China Brand Name: TMS
Certification: CE, ISO Model Number: 2500

Detail Information

Name: Metal Baler Machine Function: Press Scrap Metal Into Bale
Motor: 30kw Nominal Pressure: 2500KN
Material Box: 2000*1200*900mm Bale Size: 450*450mm
Bale Weight: 230-280kg Bale Out: Turn Over
High Light:

450*450mm Metal Baler Machine

,

Turn Over Metal Baler Machine

,

Turn Over Scrap Metal Baler

Product Description

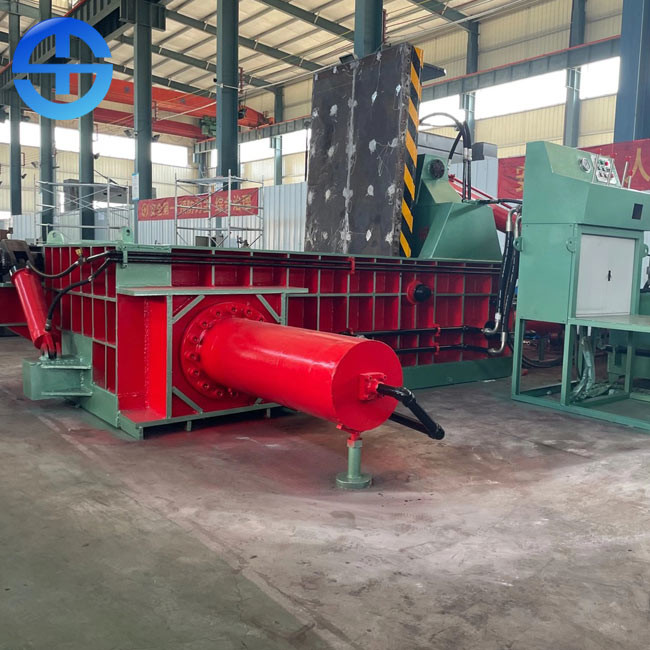

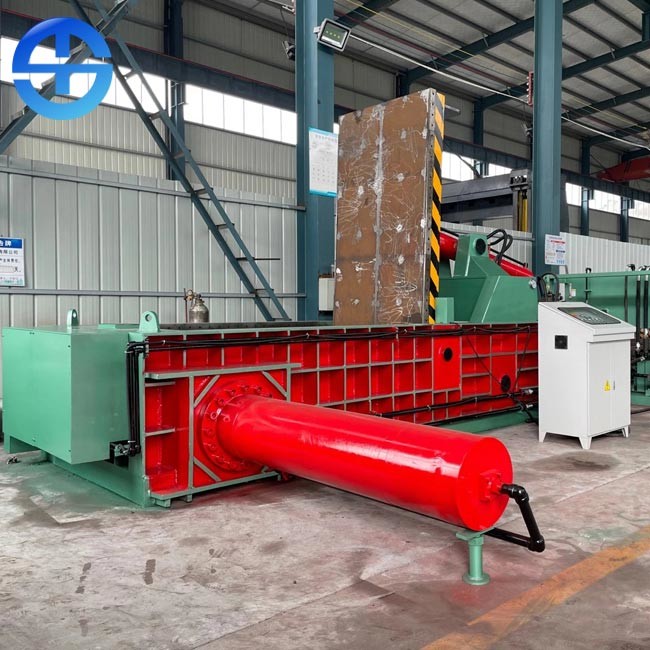

Turn Over Bale Size 450*450mm Metal Baler Machine



Introduction of metal baler machine


Metal baler machine can extrude all kinds of metal wastes (scrap, shaving, scrap steel, scrap aluminum, scrap copper, scrap stainless steel, scrap car, etc.) into qualified charges of cuboid, octagonal, cylinder and other shapes, which can not only reduce the transportation and smelting costs, but also improve the charging speed. This series of balers are mainly used in steel plant, recycling industry, nonferrous metal and ferrous metal smelting industry.



Technical parameters of metal baler machine

Model 2500
Nominal pressure 2500KN
Power 30kw
Pump 160YCY14-1B
Material box size 2000*1200*900mm
Bale size 450*450mm
Bale-out mode Turn over / manual
Bale density ≥2200kg/m3
Production efficiency  30-35ton / day


Feature of metal baler machine



(1) Various models are hydraulically driven. Manual or PLC automatic control operation can be selected.

(2) There is no need to install foot screws. Diesel engine can be used as power in places without power supply.

(3) There are three kinds of out bale forms: turn over, side push and forwarder out .

(4) There are eight levels of extrusion force from 63 tons to 400 tons, and the production efficiency ranges from 0.5 tons / hour to 20 tons / hour.

(5) The size of the feeding box and the shape and size of the bale can be designed and customized according to the user's raw material specifications.



Purpose of metal baler machine



The metal baler machine can extrude various large metal leftovers, scrap steel, scrap iron, scrap copper, scrap aluminum, disassembled automobile shell, waste oil barrel, etc. into qualified furnace charges of various shapes such as cuboid, cylinder, octagonal, etc. So as to facilitate storage, transportation and furnace recovery and reuse. After being pressed into bales, it is put into the furnace for recovery, and the use loss is very low. The whole production process does not need heating, additives or other processes. It is formed directly by cold pressing, which also ensures the invariability of the original raw materials. For example, cast iron filings are used instead of cast pig iron after forming. For castings with special raw materials, recovery means more.



Principle of metal baler machine



The basic principle of scrap metal baler is to use the nature that metal material can produce plastic deformation under the action of external force to give metal material enough (baler), external force that can gather and produce permanent deformation, so as to form a compact bundle. Therefore, the plastic deformation can not be produced, or the metal with small plastic deformation can not be directly baled. For example, high carbon steel, tool steel, steel wire rope and cast iron can not be directly baled.

Basic requirements of scrap metal baler

(1) There should be enough extrusion force. It can make the treated metal material produce plastic deformation bale and make the bale reach a certain required density.

(2) There should be a material box that can hold metal materials and can be closed to bear extrusion pressure. On the premise of meeting these two basic requirements, and according to different application requirements and different processing objects, there are many different types of scrap metal balers. The working principle of scrap metal baler is to use the working force to push the ram to extrude the metal material in a closed material box, so that the metal material can form a bale with a certain size and density.


Turn Over Bale Size 450*450mm Metal Baler Machine 0
