300kg/H 400kg/H Output Copper Cable Granulator Machine
Contact Person : Thomas Wang
Phone Number : +86 18203683590
WhatsApp : +8618203683590
|Minimum Order Quantity :||1 Set/Sets||Price :||USD7100-7400 per set|
|Packaging Details :||Ply wooden case||Delivery Time :||15 work days after receiving the deposit|
|Payment Terms :||L/C, T/T, Western Union||Supply Ability :||30 Set/Sets per month|
|Place of Origin:||Zhengzhou, China||Brand Name:||TMS|
|Certification:||CE, CO, ISO||Model Number:||300|
|Name:||Copper Wire Granulator Machine||Appliaction:||Copper Cables|
|Main Function:||Recycle Copper||Total Motors:||12.24kw|
|Recovery:||99%||Input Capacity:||60-100 Kg/h|
|Dimension:||1360*1300*1915 Mm||Wire Diameter:||0.1-20mm|
100kg/H Copper Wire Granulator Machine,
60kg/H Copper Wire Granulator Machine,
20mm Copper Wire Granulator Machine
0.1-20mm Wire 60kg/H 100kg/H Copper Wire Granulator Machine

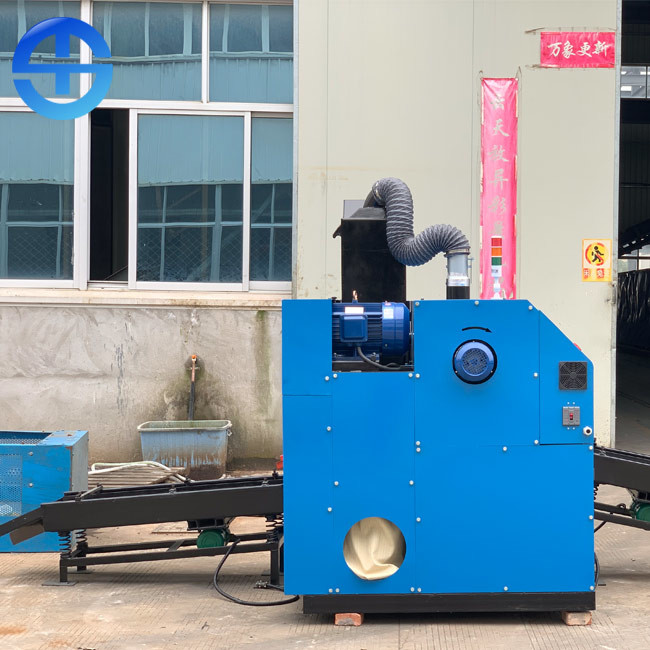

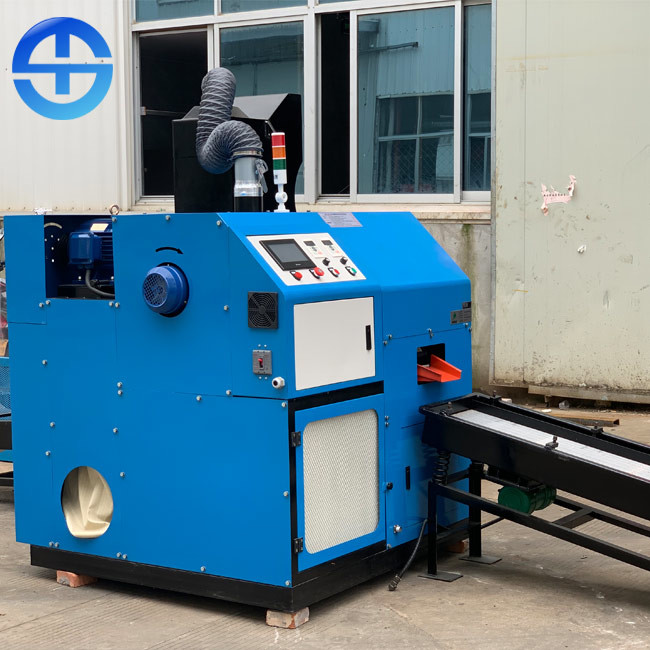

Overvied of copper wire granulator machine
Copper wire granulator machine can crush waste copper cable or wire into 1-5 mm granules mixed with plastic(PVC)&copper.Then use air, specific gravity and electrostatic separation technique to separate copper and plastic.So that the copper and plastic can be both recycled, greatly increasing their application values. By using totally dry-type physical separating technique there will be no environment pollution during the whole process and the separating ratio can be reach 99%.
Copper wire granulator machine is mainly used for recycling waste copper wire, waste wire, waste cable and so on. Simply speaking, it is to crush the waste copper wire, wire and cable first, and then separate the crushed copper and plastic to achieve the distribution and utilization after separation. Because the separated copper looks as big as rice grain, it is called "copper rice machine", which can also be seen that it is an environmentally friendly mechanical product.
Technical parameter of copper wire granulator machine
|Model||Dimension||Input Capacity||Wire diameter range||Power||Volage||Wight|
|TMS-300||1360*1300*1915 mm||60-100 kg/h||0.1-20 mm||12.24 kw||380/240V||1220kg|
|TMS-400||2700*1900*2300 mm||150-200 kg/h||0.1-20 mm||23.12 kw||380/240V||1200kg|
|TMS-600||4300*1950*2400 mm||300-400 kg/h||0.1-20 mm||52.36 kw||380/240V||3400kg|
|TMS-800||9200*4100*3540 mm||500-600 kg/h||0.1-30 mm||71.86 kw||380/240V||4100kg|
Main features of copper wire granulator machine
1. The layout of production line is compact and space utilization is high.
2. Intelligent control, high degree of automation, overload automatic shutdown protection.
3. The sorting rate of air separation equipment is over 99%
4. The crusher adopts high-strength alternating cutter shaft with high grinding efficiency. The knife is alloy tool steel with long service life.
5. The crusher is equipped with air cooling system to delay the heating of materials and crushing bin.
6. Bag dust collecting equipment can effectively control dust spillover, and the dust removal efficiency is over 99%.
Raw materials of copper wire granulator machine
Recycle different types of cable wires, such as all kinds of automotive circuit cable lines, communication cable lines and various waste wires that are not suitable to be processed by stripping machines. Like: computer wires, automobile wires, tele-communication cables, electric telephone wires. The functions of these cable recycling system include pre-shredding, steel removal, granulation and separation of plastics from copper or aluminum. The advanced design of these plants results in excellent separation of the different fractions, even when processing mixed cables of varying size and composition.
