2*22kw Power 2-3 Ton/H Intelligent Scrap Metal Shredder Two Shaft

2*22kw Power 2-3 Ton/H Intelligent Scrap Metal Shredder Two Shaft

Product Details:

Place of Origin: China
Brand Name: TMS
Certification: ISO, CO, CE
Model Number: TMS-800

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 21000-35000 per set
Packaging Details: Ply wooden case with 4200*2300*2700 mm or Full container
Delivery Time: 20 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 15 sets per month
Get Best Price Contact Now

Detail Information

Name: Dual Shaft Shredder Function: Shredding
Size: 3100*1500*1800mm Power: 22kw*2
Capacity: 2-3ton/h Speed: 50 R/min
Weight: 4500kg Voltage: 380V/50HZ
High Light:

3 Ton/H Scrap Metal Shredder


2*22kw Scrap Metal Shredder


3 Ton/H two shaft shredder

Product Description

2*22kw Power 2-3 Ton/H Intelligent Dual Shaft Shredder


Introduction of dual shaft shredder


Dual shaft shredder can meet the requirements of waste recycling in various industries, and is suitable for shredding thicker and refractory materials, such as electronic waste, plastics, metals, wood, waste rubber, packaging barrels, pallets, etc. There are many kinds of recyclable materials. The torn materials can be directly recycled or further refined according to demand. It is suitable for industrial waste recycling, medical treatment recycling, electronic manufacturing, pallet manufacturing, wood processing, domestic waste recycling, plastic recycling, tire recycling, paper making and other industries. This series of double shaft crusher has the characteristics of low speed, high torque and low noise. It adopts PLC control system and can be automatically controlled. It has the functions of starting, stopping, reversing and overloading automatic reversing control.


Technical paramater of dual shaft shredder


Model TMS-800
Power 22kw*2
Voltage 380v/50hz
Capacity 2-3ton/h
Speed 50 r/min
Size 3100*1500*1800 mm
Weight 4500 kg


Features of metal shredding machine


1. This machine can shred large block, basket, pipe, board, wood, tire and large roll film which are difficult to crush by single shredder.

2. Extra thick sheet metal precision processing composite structure frame, large angle hexagonal column strong rotation axis, large caliber and strong input hopper, so you can safely put into large raw materials.

3. In the thickness, shape, arrangement and other aspects of the design and processing of a unique rotary knife, strong shearing force, sharp edge, can be highly efficient crushing.

4. PLC control, when the handling material is too large, it has the function of positive and negative operation and shutdown to protect the body, and the safety measures are absolutely safe.

5. Low-speed operation, low noise, less dust.

6. The blade is made of special alloy steel and is durable.


Working principle of dual shaft shredder


The double shaft crusher is driven independently by two shaft, so that the material can be pressed correspondingly in production to achieve the function of automatic feeding. Unique shaft structure and four-corner rotary blades will not entangle the shaft or jam the equipment in the production process of low speed and high torque, thus improving the production efficiency. This equipment is suitable for crushing various materials with high toughness and viscidity.


Application of dual shaft shredder


The items that can be torn up by metal shredding machine are

(1). Wood processing industry: wooden pallets, branches, seats, wood, roots; Wisconsin environmental protection.

(2). Plastic products industry: mixed plastics, plastic buckets, rubber blocks, nozzle materials, garbage cans.

(3). Waste tire industry: automobile tires, tires with rough steel wire removed, rubber.

(4). Metal recovery industry: scrap iron and steel, lead, aluminum alloy, copper scrap.

(5). Electronic waste industry: electronic appliances, plugs, transformers, air conditioners, induction cookers, television.

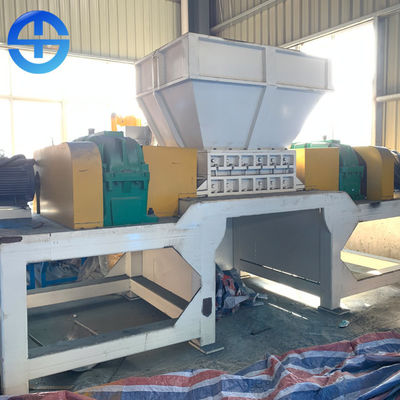

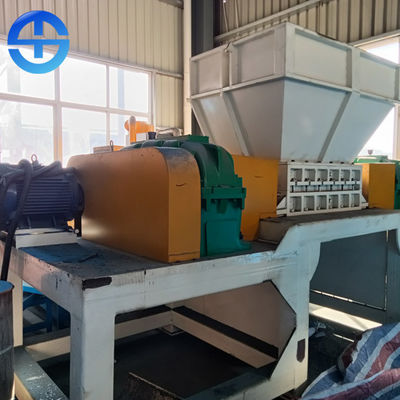

2*22kw Power 2-3 Ton/H Intelligent Scrap Metal Shredder Two Shaft 0
