90-120kg/H Biomass Pellet Machine 4mm Pellet Size

Minimum Order Quantity : 1 set Price : Negotiable
Packaging Details : Exported ply wooden case Delivery Time : 7 working days
Payment Terms : L/C, T/T, Western Union Supply Ability : 50 sets per month
Place of Origin: Zhengzhou, China Brand Name: TMS
Certification: CE, ISO Model Number: 150

Detail Information

Name: Biomass Pellet Machine Usage: Make Pellet
Output: 90-120kg/h Power: 4kw
Type: Flat Die Moisture Required: 10-12%
Material: Wood, Sawdust, Rice Shell Etc Pellet Size: 3, 4, 5, 6, 8mm
High Light:

90kg/H Biomass Pellet Machine

,

4mm Biomass Pellet Machine

,

120kg/H biomass pellet mill

Product Description

4mm Pellet Size 90-120kg/H Biomass Pellet Machine



Description of Biomass pellet machine



Biomass pellet can take the agricultural and forestry processing wastes such as sawdust, straw, rice husk, bark and other biomass as raw materials, and solidify them into high-density pellet fuel through pretreatment and processing. It can not only save energy, but also reduce emissions, economic and social benefits. It is an efficient and clean renewable energy. Biomass pellet machine is divided into flat biomass pellet and ring biomass pellet and updated products. Our company mainly produce the flat biomass pellet machine.



Technical parameters of biomass pellet machine



Model Power Output (kg/h) Dimension (mm) G.W N.W Moisture required
120 2.2/3kw 60-100 750*320*680 100kg 80kg 10-18%
150 4kw 90-120 800*450*700 110kg 91kg 10-18%
200 7.5kw 200-300 1050*480*990 230kg 200kg 10-18%
230 11kw 300-400 1180*540*1000 320kg 290kg 10-18%
260 15kw 400-600 1240*540*1000 360kg 320kg 10-18%
300 22kw 600-800 1300*560*1100 450kg 410kg 10-18%
400 30kw 800-1200 1560*640*1400 700kg 660kg 10-18%



Features of biomass pellet machine



1). Powder feed and grass powder can be pelletized without adding or a little liquid, and part of moisture will be lost during granulation process, so the moisture content of pellet feed is lower than that of material before granulation, which is more convenient for storage.

2). This cattle pellet machine uses shaft drive to make pellets without belt. Using high technology, it has a lot of foresight than the original belt drive. This machine does not need to add any water to make pellets, which belongs to the type of dry in and dry out. At the time of manufacturing, we use it for those small-scale farms. At the same time, the granules can be kept for a long time, and it is not a problem for more than half a year.

4.Dry material processing can produce feed pellets with high hardness, smooth surface and internal ripening, which can improve the digestion and absorption of nutrients.

5. It is easy to adjust the length of the pellets. It has the advantages of simple structure, small floor area and low noise. It can be operated by 220 V single-phase power. It is suitable for small-scale farmers who lack three-phase electricity.



Application of biomass pellet machine



This homemade wood pellet machine can be used to make fuel fuel pellets from biomass materials. In addition, this homemade pellet mill can also be used to produce feed pellets and bedding pellets for poultry, cattle, pig, etc.

For making animal feed: The suitable raw materials for making feed pellets include bean pulp, maize, grass, wheat bran, rice hull, straw, silage, etc. Pelleted feed made by the flat die pellet mill can be stored for a long time. It can shorten the period of feeding, so it can efficiently guarantee many users' productive cost. Feed pellets are mainly adopted to feed cattle, chicken, pig, rabbits and other animals.

For making fuel pellets: Raw materials for biomass pellets mainly include: wood wastes (such as sawdust, wood chips, wood shavings, and other parings from furniture manufacturers or wood working factory; wood wastes including pine tree waste, spruce tree waste) and agricultural wastes (like rice straw, peanut shells, coconut shells, palm wastes, corn stover, switchgrass, etc.). In the process of making wood pellets, the lignin and resin of woods can serve as binder for pelletizing. So there is no need to add any additives.

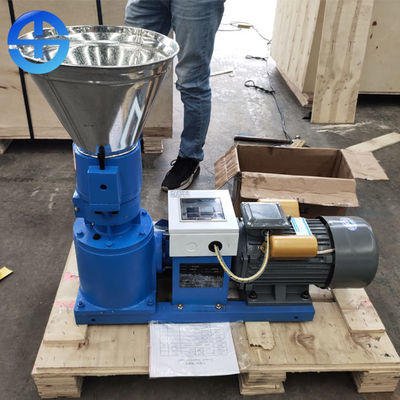

90-120kg/H Biomass Pellet Machine 4mm Pellet Size 0

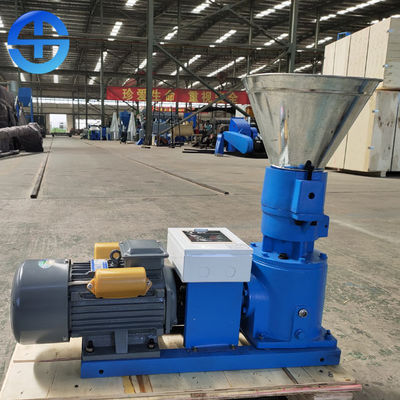

90-120kg/H Biomass Pellet Machine 4mm Pellet Size 1
