Electric 7.5kw Motor Driven Biomass Pellet Machine 200kg/H 300kg/H

Electric 7.5kw Motor Driven Biomass Pellet Machine 200kg/H 300kg/H

Product Details:

Place of Origin: Zhengzhou, China
Brand Name: TMS
Certification: CE, ISO
Model Number: 200

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Exported ply wooden case
Delivery Time: 7 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 60 sets per month
Get Best Price Contact Now

Detail Information

Name: Wood Pellet Machine Function: Making Biomass Pellet
Capacity: 200-300kg/h Motor Power: 7.5kw
Moisture: 10-18% Dimension: 1050*480*990mm
Weight: 200kg Voltage: 380V/50HZ
High Light:

Motor Driven Biomass Pellet Machine


Biomass Pellet Machine 200kg/H


300kg/H sawdust pellet making machine

Product Description

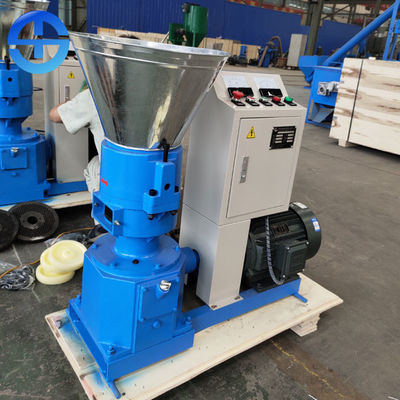

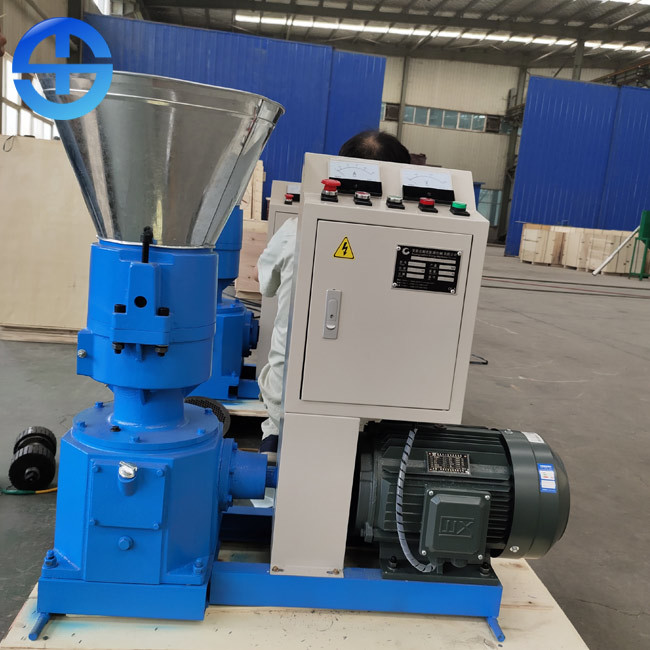

Electric 7.5kw Motor Driven 200kg/H 300kg/H Wood Pellet Machine


Description of wood pellet machine


Wood pellet machine is a kind of feed processing machinery which uses corn, soybean meal, straw, grass and rice husk as raw materials and directly pressed into pellets after crushing raw materials. It is mainly used in grain and feed processing plants, animal farms, poultry farms, individual farmers and small and medium-sized farms, farmers or large, medium and small-sized feed processing plants. According to different raw materials and uses, feed pellet processing machinery is also known as straw feed pellet machine, small feed pellet machine, breeding feed pellet machine, household pellet processing equipment, pig feed pellet machine and so on. Feed pellet processing machinery is recognized by more and more farmers.


Technical parameters of wood pellet machine


Model Power Output (kg/h) Dimension (mm) G.W N.W Moisture required
120 2.2/3kw 60-100 750*320*680 100kg 80kg 10-18%
150 4kw 90-120 800*450*700 110kg 91kg 10-18%
200 7.5kw 200-300 1050*480*990 230kg 200kg 10-18%
230 11kw 300-400 1180*540*1000 320kg 290kg 10-18%
260 15kw 400-600 1240*540*1000 360kg 320kg 10-18%
300 22kw 600-800 1300*560*1100 450kg 410kg 10-18%
400 30kw 800-1200 1560*640*1400 700kg 660kg 10-18%


Features of wood pellet machine


1. Dry in and dry out, without drying (the moisture content of raw materials is not less than 13% of the national export volume moisture standard). Differential, universal joint transmission, with motor or diesel engine. Low energy consumption, high output, easy operation.

2. It can produce ball type pure organic fertilizer, organic-inorganic fertilizer and bio organic fertilizer with uniform, smooth and round particles, high strength and good fluidity.

3. The three in one machine with unique technology is used to complete the whole process of low temperature drying, cooling and screening at one time, with less equipment investment and low operation cost. The survival rate of microorganism was more than 90%.

4. It is widely used in animal husbandry, small and medium-sized breeding plants, feed factories, brewing, sugar making, paper making, medicine, tobacco and other industries. It is the ideal equipment for (biological) organic fertilizer production enterprises.


Application of wood pellet mill


Our Machine to Make Wood Pellets with wide Applications and High Output Efficiency. The Applications Raw Materials as follows:

(1). All kinds of wood waste or agro-forestry waste can be used,such as:Wood waste,scobs,branch,palm tree,sugarcane residue,sawdust,medical slag,hay,discarded edible fungus bags.Bean stalk,wheat stalk,corn stalk,cotton stalks,sunflower stalks,mustard stalk,rice stalks,coffee husk,cotton shell,peanut shell,rice shell,coconut shell.

(2).Livestock and poultry's waste,tea waste,tea waste,forestry wastes,forestry wastes,wood chips and many other organic waste resources.

Working process of wood pellet mill


The motor drives the spindle through the hypoid bevel gear, and the spindle drives the press roll to rotate. When processing raw materials, the raw materials are sent to the feeding chamber of the flat die machine, and the materials fall on the flat die. The main shaft drives the press roller to rotate. The roller continuously rolls through the material layer and extrudes the material into the die hole. The material experiences the process of forming and maintaining shape in the die hole. After a certain period of time, the material is extruded in a cylindrical state. The rotating cutter cuts off the material and forms particles, which are sent out by the material throwing plate.


Electric 7.5kw Motor Driven Biomass Pellet Machine 200kg/H 300kg/H 0
