10-12% Moisture Sawdust Pellet Machine 200-300 Kg / Hour

10-12% Moisture Sawdust Pellet Machine 200-300 Kg / Hour

Product Details:

Place of Origin: Zhengzhou, China
Brand Name: TMS
Certification: CE, ISO
Model Number: 150

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Exported ply wooden case
Delivery Time: 7 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 sets per month
Get Best Price Contact Now

Detail Information

Name: Sawdust Pellet Machine Function: Make Pellet Or Feed Pellet
Output: 200-300kg/h Motor Power: 7.5kw
Type: Flat Die Moisture: 10-12%
Materials: Wood, Sawdust, Rice Shell Etc Pellet Size: 3, 4, 5, 6, 8mm
High Light:

12% Moisture Sawdust Pellet Machine


300 Kg / Hour Sawdust Pellet Machine


200 Kg / Hour Sawdust Pellet Machine

Product Description

10-12% Moisture 200-300 Kg/H Sawdust Pellet Machine


Description of sawdust pellet machine


Sawdust pellet can take the agricultural and forestry processing wastes such as sawdust, straw, rice husk, bark and other biomass as raw materials, and solidify them into high-density pellet fuel through pretreatment and processing. It can not only save energy, but also reduce emissions, economic and social benefits. It is an efficient and clean renewable energy. Biomass pellet machine is divided into flat biomass pellet and ring biomass pellet and updated products. Our company mainly produce the flat biomass pellet machine.


Technical parameters of sawdust pellet machine


Model Power Output (kg/h) Dimension (mm) G.W N.W Moisture required
120 2.2/3kw 60-100 750*320*680 100kg 80kg 10-18%
150 4kw 90-120 800*450*700 110kg 91kg 10-18%
200 7.5kw 200-300 1050*480*990 230kg 200kg 10-18%
230 11kw 300-400 1180*540*1000 320kg 290kg 10-18%
260 15kw 400-600 1240*540*1000 360kg 320kg 10-18%
300 22kw 600-800 1300*560*1100 450kg 410kg 10-18%
400 30kw 800-1200 1560*640*1400 700kg 660kg 10-18%


Features of sawdust pellet machine


1. The utility model has the advantages of novel structure, simple operation, wide adaptability, small floor area and low noise.

2. Powder feed and grass powder can be pelletized without adding or a little liquid, and part of moisture will be lost during granulation process, so the moisture content of pellet feed is lower than that of material before granulation, which is more convenient for storage.

3. Chicken, duck, fish, etc. can obtain higher economic benefits than the mixed powder feed.

4. Dry material processing can produce feed particles with high hardness, smooth surface and internal ripening, which can improve the digestion and absorption of nutrients.

5. It can be produced with adjustable length and diameter of Φ 3 mm-6 mm. Grass powder particles, grain grains and mixture particles can be processed.

6. The process of granule formation can denaturate the trypsin resistance factors in grains and beans, reduce the adverse effects on digestion, kill various parasitic eggs and other pathogenic microorganisms, and reduce various kinds of raw insects and digestive system diseases.


Application of sawdust pellet machine


This homemade sawdust pellet machine can be used to make fuel fuel pellets from biomass materials. In addition, this homemade pellet mill can also be used to produce feed pellets and bedding pellets for poultry, cattle, pig, etc.

For making animal feed: The suitable raw materials for making feed pellets include bean pulp, maize, grass, wheat bran, rice hull, straw, silage, etc. Pelleted feed made by the flat die pellet mill can be stored for a long time. It can shorten the period of feeding, so it can efficiently guarantee many users' productive cost. Feed pellets are mainly adopted to feed cattle, chicken, pig, rabbits and other animals.

For making fuel pellets: Raw materials for biomass pellets mainly include: wood wastes (such as sawdust, wood chips, wood shavings, and other parings from furniture manufacturers or wood working factory; wood wastes including pine tree waste, spruce tree waste) and agricultural wastes (like rice straw, peanut shells, coconut shells, palm wastes, corn stover, switchgrass, etc.). In the process of making wood pellets, the lignin and resin of woods can serve as binder for pelletizing. So there is no need to add any additives.

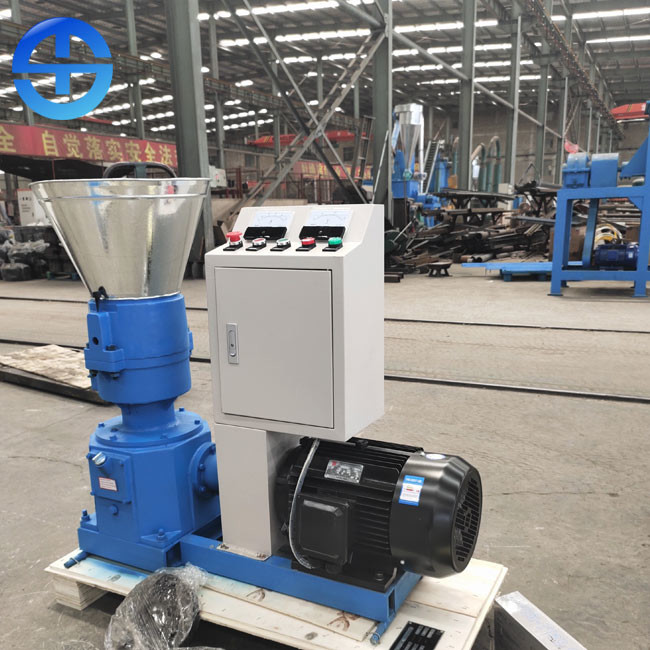

10-12% Moisture Sawdust Pellet Machine 200-300 Kg / Hour 0

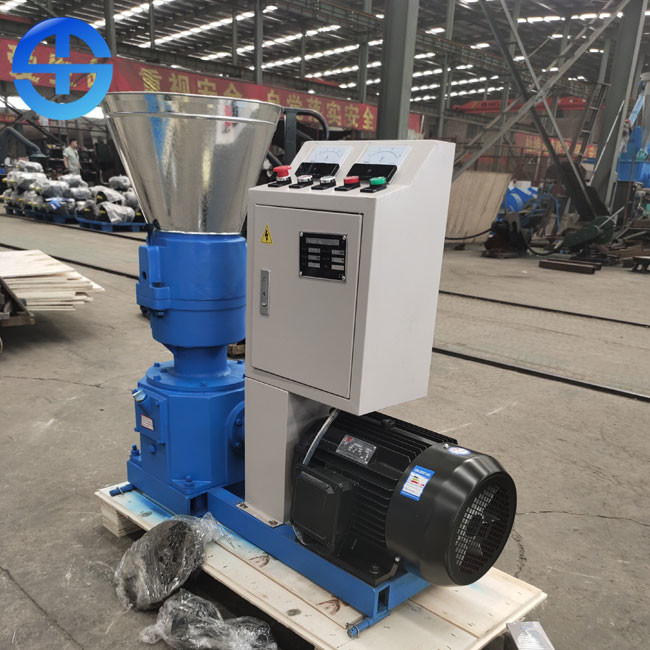

10-12% Moisture Sawdust Pellet Machine 200-300 Kg / Hour 1
