Flat Die 300mm Diesel Biomass Pellet Machine 600-800 Kg/H

Minimum Order Quantity : 1 set Price : Negotiable
Packaging Details : Exported ply wooden case for animal feed pellet mill Delivery Time : 10 working days
Payment Terms : L/C, T/T, Western Union Supply Ability : 100 sets per month
Place of Origin: Zhengzhou, China Brand Name: TMS
Certification: CE, ISO Model Number: 300C

Detail Information

Name: Diesel Biomass Pellet Machine Usage: Make Biomass Pellet
Output Capacity: 600-800kg/h Motor Power: 55HP
Dimension: 2100*590*1200mm Material Moisture Required: 10-18%
Flat Die: 300mm Pellet Size: 3mm. 4mm
High Light:

Diesel Biomass Pellet Machine

,

300mm Biomass Pellet Machine

,

800 Kg/H Flat Die Pellet Machine

Product Description

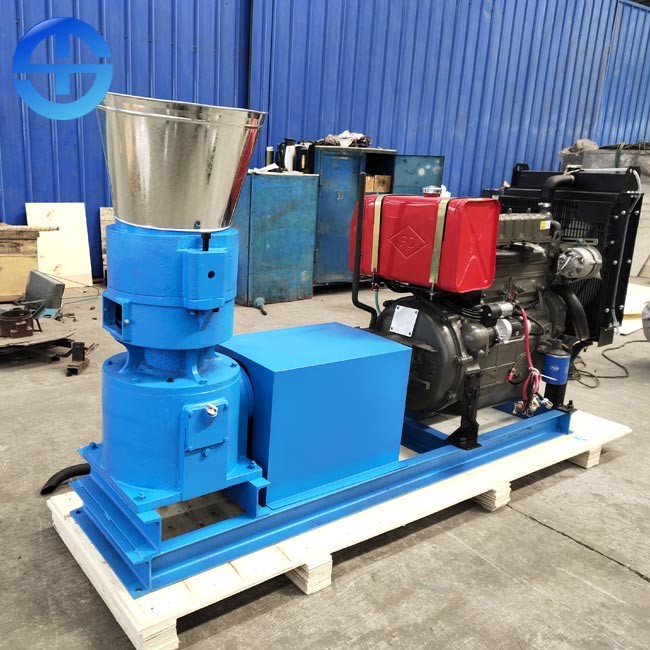

600-800 Kg/H Flat Die 300mm Diesel biomass pellet machine



Introduction of diesel biomass pellet machine



Biomass pellet can take the agricultural and forestry processing wastes such as sawdust, straw, rice husk, bark and other biomass as raw materials, and solidify them into high-density pellet fuel through pretreatment and processing. It can not only save energy, but also reduce emissions, economic and social benefits. It is an efficient and clean renewable energy. Biomass pellet machine is divided into flat biomass pellet and ring biomass pellet and updated products. Our company mainly produce the flat biomass pellet machine.



Technical data of diesel biomass pellet machine



Model Motor Power Output (kg/h) Machine size (mm) G.W N.W Material Moisture
120C 7.6HP 60-100 850*450*750 140kg 120kg 10-18%
150C 8HP 90-120 950*650*750 180kg 160kg 10-18%
200C 15HP 200-300 1450*550*850 280kg 260kg 10-18%
230C 22HP 300-400 1800*560*1050 450kg 430kg 10-18%
260C 30HP 400-600 1800*560*1050 500kg 480kg 10-18%
300C 55HP 600-800 2100*590*1200 720kg 700kg 10-18%
400C 55HP 800-1200 2200*640*1400 780kg 750kg 10-18%



Features of diesel biomass pellet machine



1. It has simple structure and it can be easily cleaned and maintained.
2. It provides small capacity at lower price; it is in small size and light weight; it is a best choice for pellet production on a small scale.
3. This pellet mill is easy to operate--just 1 or 2 workers can operate the pellet machine.
4. Operators are able to have a view of the chamber, so it is easy to find problems during pelleting.
5. Spare parts, i.e. rollers and die are easy to change.
6. It is also a right choice for wood pellet producers and animal bedding pellet producers.



Advantages of diesel biomass pellet machine



Roller-turned electric pellet mill machine enjoys high efficiency, stable performance, strong durability, and little maintenance. Its die compression ratio can be adjusted according to the specific raw material. And the service life of its flat die prolongs as both sides of the die can be used. It is made of high-quality steel, thus ensuring the machine’s long service life.
This pellet mill is also called sawdust pellet mill or wood pellet mill, as it is mainly used to make pellets from sawdust and various woods. Moreover, it can also make pellets from other biomass materials, like: grass, bagasse, peanut shell, cotton and corn stalks, and other agricultural residuals.



Application of diesel biomass pellet machine



This homemade wood pellet machine can be used to make fuel fuel pellets from biomass materials. In addition, this homemade pellet mill can also be used to produce feed pellets and bedding pellets for poultry, cattle, pig, etc.

For making animal feed: The suitable raw materials for making feed pellets include bean pulp, maize, grass, wheat bran, rice hull, straw, silage, etc. Pelleted feed made by the flat die pellet mill can be stored for a long time. It can shorten the period of feeding, so it can efficiently guarantee many users' productive cost. Feed pellets are mainly adopted to feed cattle, chicken, pig, rabbits and other animals.

For making fuel pellets: Raw materials for biomass pellets mainly include: wood wastes (such as sawdust, wood chips, wood shavings, and other parings from furniture manufacturers or wood working factory; wood wastes including pine tree waste, spruce tree waste) and agricultural wastes (like rice straw, peanut shells, coconut shells, palm wastes, corn stover, switchgrass, etc.). In the process of making wood pellets, the lignin and resin of woods can serve as binder for pelletizing. So there is no need to add any additives.



Flat Die 300mm Diesel Biomass Pellet Machine 600-800 Kg/H 0
