200-300kg/H Wood Pellet Machine 7.5kw Motor

200-300kg/H Wood Pellet Machine 7.5kw Motor

Product Details:

Place of Origin: Zhengzhou, China
Brand Name: TMS
Certification: CE, ISO
Model Number: 200

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Exported ply wooden case
Delivery Time: 7 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 sets per month
Get Best Price Contact Now

Detail Information

Name: Wood Pellet Machine Function: Make Pellet
Capacity: 200-300kg/h Power: 7.5kw
Dimension: 1050*480*990mm Moisture Required: 10-18%
Material: Wood, Sawdust Etc Pellet Size: 3, 4, 5, 6, 8mm
High Light:

300kg/H Wood Pellet Machine


200kg/H Wood Pellet Machine


7.5kw Wood Pellet Machine

Product Description

7.5kw Motor 200-300kg/H Wood Pellet Machine


Description of wood pellet machine


Wood pellet machine turns the raw materials into the high-efficient biomass fuel. What's more, the conversion of raw material into more energy-dense forms facilitates transport, storage and use through the rest of the value chain. The future of the biomass is on continuous developing.

Wood pellet is easy to store and produce a minimal amount of ash. Wood pellets are environmentally-friendly. They are a sustainable fuel source.


Technical parameters of wood pellet machine


Model Power Output (kg/h) Dimension (mm) G.W N.W Moisture required
120 2.2/3kw 60-100 750*320*680 100kg 80kg 10-18%
150 4kw 90-120 800*450*700 110kg 91kg 10-18%
200 7.5kw 200-300 1050*480*990 230kg 200kg 10-18%
230 11kw 300-400 1180*540*1000 320kg 290kg 10-18%
260 15kw 400-600 1240*540*1000 360kg 320kg 10-18%
300 22kw 600-800 1300*560*1100 450kg 410kg 10-18%
400 30kw 800-1200 1560*640*1400 700kg 660kg 10-18%


Features of wood pellet machine


(1) Adopt reduction box with low noise, long lifespan gear and can rotate forward and reverse. Other manufacturers adopt low cost bevel gear that cannot rotate reverse.
(2) The pressing die and main shaft adopt Cr12, which is more wear-resisting because of high Cr content. The special heat treatment makes their hardness to be 60HRC. Other manufacturers use 45# instead with low hardness and wear-resistance.

(3) The roller, pressing die, main shaft and roller shaft are processed by vacuum heat treatment other than carburizing and quenching (that other manufacturers use) to have higher hardness, wear-resistance and longer lifespan.

(4) The sealing of spare parts for small pellet machine is excellent. The roller shaft is sealed on both sides, while other manufacturers only seal one side.

(5) The feeding hopper applies whole sheet metal edge instead of welding to be more stable and firm.

(6) The compression ratio of small pellet press determines the quality of your pellets. We have professional team doing the raw material test and have obtained best compression ratio for over 20 kinds of common seen biomass.

(7) The electric components adopt top brands in China to guarantee stable performance.

Working process of wood pellet machine


During the process of producing feed pellets, the temperature of the pellet press can reach 70-80 centigrade. At this temperature, fecula can be made into a paste in pellet press. The inside granule is cooked fully so the pellets will be not easy to go moldy and degenerative. This kind of cooked pellets can be stored for a long time and improve poultry dainty and assimilation function for feed animal. It also can shorten the period of feeding, so it can efficiently guarantee many users’ productive cost.

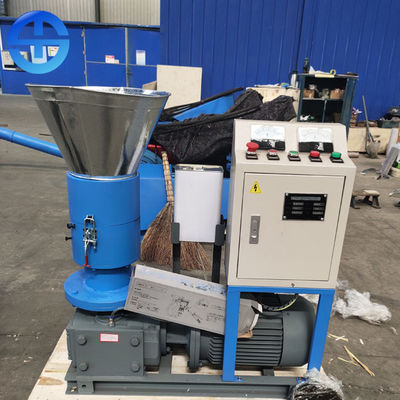

200-300kg/H Wood Pellet Machine 7.5kw Motor 0

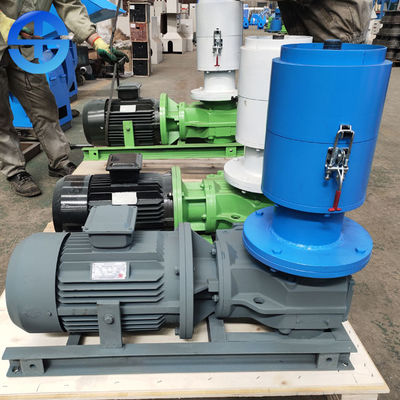

200-300kg/H Wood Pellet Machine 7.5kw Motor 1
