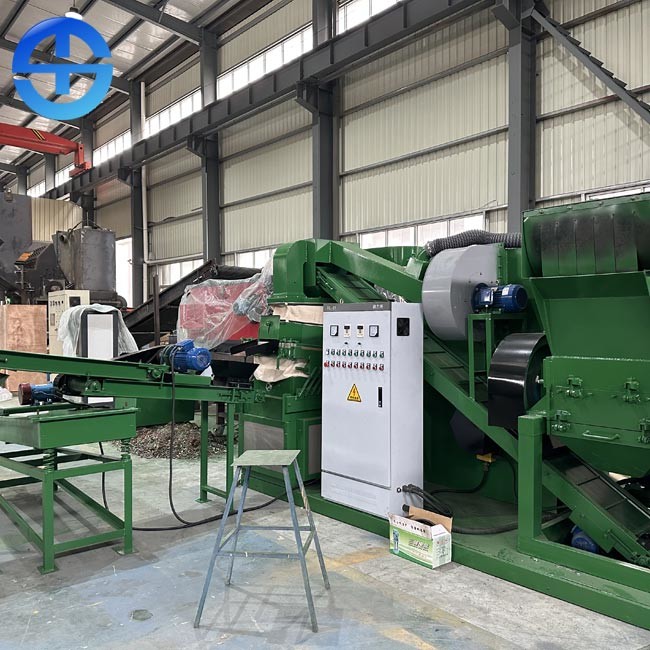

99.9% Purity Copper Cable Wire Recycling Machine 52.36kw Power 20mm

99.9% Purity Copper Cable Wire Recycling Machine 52.36kw Power 20mm

Product Details:

Place of Origin: Zhengzhou, China
Brand Name: TMS
Certification: CE, CO
Model Number: 600

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Full container for copper wire recycling machine
Delivery Time: 15 work days after receiving the deposit
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 10 sets per month
Get Best Price Contact Now

Detail Information

Name: Copper Recycling Machine Application: Scrap Copper Cables
Wire Diameter: 0.1-20mm Power: 52.36kw
Separating Rate: 99.9% Output: 300-400 Kg/h
Weight: 3400kg Dimension: 4300*1950*2400 Mm
High Light:

Purity Copper Cable Wire Recycling Machine


52.36 kw Copper Wire Recycling Machine


20mm Copper Wire Recycling Machine

Product Description

52.36kw Power 99.9% Purity Copper Cable Wire Recycling Machine


Introduction of copper recycling machine


It is a professional dry separation waste wire and cable production line. For example: the old automobile circuit line, communication cable, and wire stripper are not suitable for processing (various civil wires) waste and miscellaneous wires, wool wire, etc. the characteristics of this machine are that the large and small lines can be broken and separated at the same time without classification, with new structure, unique structure, large production volume and low power consumption. High separation rate, one feeding, multi machine cooperation. The whole line is controlled by PLC, and is in the leading level in China. The successful development of the machine solves the problems in the method of burning copper, improves the quality of copper recovery, and can recycle plastics and solve the environmental pollution.


Technical parameter of copper recycling machine

Model Size Capacity Wire diameter range Power Volage Wight
TMS-300 1360*1300*1915 mm 60-100 kg/h 0.1-20 mm 12.24 kw 380/240V 1220kg
TMS-400 2700*1900*2300 mm 150-200 kg/h 0.1-20 mm 23.12 kw 380/240V 1200kg
TMS-600 4300*1950*2400 mm 300-400 kg/h 0.1-20 mm 52.36 kw 380/240V 3400kg
TMS-800 9200*4100*3540 mm 500-600 kg/h 0.1-30 mm 71.86 kw 380/240V 4100kg


Advantages of Copper recycling machine


1. Compact structure, beautiful appearance, reasonable layout and convenient installation.

2. Intelligent operation makes the operation more convenient, time-saving and labor-saving, and ensures the stable operation of the equipment to the greatest extent.

3. The crusher adopts counter roller type, with low speed, high torque, large output, low noise and simple operation.

4. The pulverizer, separation equipment and dust collection equipment adopt the platform combination type, which makes the equipment easy to move and transport, and increases the flexibility of the equipment.

5. The rotor of the pulverizer adopts the alternate cutter shaft, which makes the production efficiency of the pulverizer higher, the noise lower and the operation more stable.

6. The separation rate of air flow separation equipment is as high as 97 ~ 99%.

7. The return system makes the semi-finished products be crushed twice, which ensures the complete separation of metal and non-metal.

8. Bag dust collection equipment can effectively control dust overflow, and the dust removal efficiency is as high as 99.99%.


Raw materials of copper recycling machine


Copper recycling machine is mainly used to recycle different types of cable wires, such as all kinds of automotive circuit cable lines, communication cable lines and various waste wires that are not suitable to be processed by stripping machines. Like: computer wires, automobile wires, tele-communication cables, electric telephone wires. The functions of these cable recycling system include pre-shredding, steel removal, granulation and separation of plastics from copper or aluminum. The advanced design of these plants results in excellent separation of the different fractions, even when processing mixed cables of varying size and composition.


Copper recycling machine are able to provide technical solutions for the recycling particularly problematic materials such as: armoured cable with a diameter greater than 100 mm, tech cable of any size, submarine cable with presence of fat and oil, extremely thin wire (telephone wires, data cables, cables from the recycling of computers), cable from electrical and electronic equipment, capillary cable, cable coming from the demolition of vehicles contaminated by sticky or oily materials.
