| Place of Origin: | Henan, China (Mainland) |
| Brand Name: | TMS |
| Certification: | CO, ISO |
| Model Number: | TMS-600 |

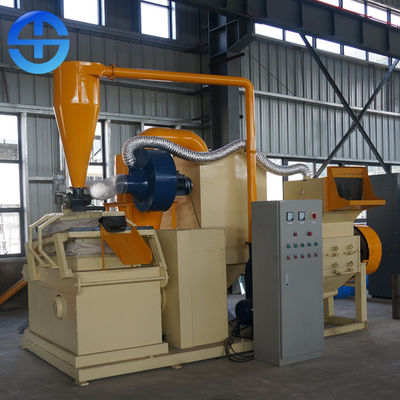

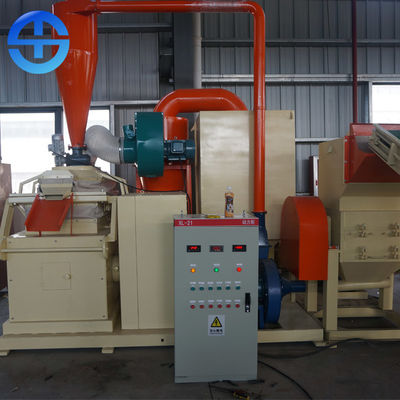

99.8% separating rate copper cable granulator recycling machine
Copper cable granulator machine is used for recycling scrap copper wires/cables with diameter less than 25mm, better for single conductor diameter of 0.2-0.5mm. The wire is like auto wires, communication cables and kinds of miscellaneous wires and cables.
The working process is that scrap copper wires are shredded by crushers, then plastic and copper granules are separated by vibration and airflow. They come out from different outlets, dust is collected by dust collector.
Feature
1. The whole system is controlled by the Electricity Control Panel.
2. The bottom air flow is controlled by the Airlock.
3. Minimum copper recovery rate can reach 99%.
| Size (mm) | Capacity | Wire diameter range | Power | Voltage | Weight |
|
4300*1950*2400 |
300-400 kg/h | 0.1-20 mm | 52.36kw | 380/240V | 3400kg |
| Components | Chopper |
Motor Power:37kw Blade Quantity: 10 Quantity of Fixed Blades: 4 Screen Size: Φ3mm / Φ4mm Spindle speed: 600r/min |
| Separator |
Vibration Motor: 1.5kw Vibration: Frequency Regulation Screen Diameter: 100mesh |
|
| Bottom Blower Fan |
Fan Power: 4kw Filter: Φ325*900*2 Air Volume Control: Airlock Control |
|
| Upper Suction Fan |
Fan power: 4kw Material Collecting Mode: Cyclone Dust Collector Collecting Bag: 1 Dust bag: 9 |
|
| Regulating Airlock | Fan Power: 0.37kw |
