500kg/H Q235 Steel Metal Scrap Baling Machine Two Shaft Shredder

Minimum Order Quantity : 1 set Price : Negotiated
Packaging Details : Ply wooden case or Full container Delivery Time : 10 work days
Payment Terms : L/C, T/T, Western Union, MoneyGram Supply Ability : 20 sets per month
Place of Origin: China Brand Name: TMS
Certification: ISO, CO, CE Model Number: SSJ-400

Detail Information

Name: Two Shaft Shredder Function: Shredding
Dimension: 2200*1100*1550 Power: 2*11kw
Capacity: 400-500kg/h Blade Quantity: 20 Pieces
Blade Materials: Alloy Steel Voltage: 380 V Or Customized
High Light:

500kg/H Metal Scrap Baling Machine

,

Q235 Metal Scrap Baling Machine

,

500kg/H Two Shaft Shredder

Product Description

500kg/H Q235 Steel Scrap Metal Recycling Machine Two Shaft Shredder

Introduction of two shaft shredder


The two shaft shredder uses the strong torque generated after the speed ratio compression to drive the two shafts to rotate inward. During the rotation, the blade edge of the cutter head becomes small pieces after various shredding effects such as extrusion, tearing and tearing of metal materials under tight balance. Yongsheng shredder has low speed, large torque, low noise, five dust, low production capacity, high energy consumption and small land occupation. It is applicable to any working environment. According to the number of shafts, metal shredders can be divided into: double shaft shredder, three shaft shredder and four shaft shredder.



The two shaft shredder can tear up metal waste materials such as paint bucket, machine oil bucket, color steel tile, automobile shell, automobile oil filter element, bicycle and scrap steel. It can also tear up waste materials such as automobile tires, large plastic pipes and large plastics into recyclable materials.


Technical data of two shaft shredder







Main body

Model SSJ-400
Body It adopts split type for easy disassembly and assembly, welded by Q235 steel plate.
Dimension 2200*1100*1550mm
Power 11kw*2
Speed 15-18 r/min
Reducer speed ratio 45.87
Frame 100*100 channel steel welded









Blade

Quantity 20 pieces
Cutter head material Alloy material
Cutter head hardness range 53-58
Cutter head thickness 20mm
Blade type The outer tooth adopts small hook angle outer triangular tooth shape, and the inner hole is hexagonal
No. of cutter head teeth Customized according to customer requirements
Shaft Spindle form Hexagonal shaft
Shaft diameter 100mm
Spacer Quantity 20 pieces
Capacity 400-500kg/h


Features of two shaft shredder

1: The heavy moving knife has high crushing power. The knives are cast with alloy steel, which is firm and has long service life.
2: The frame plate is thick, can resist high torque and is very strong.
3: Microcomputer (PC) automatic control is adopted, with start, stop, reverse and overload automatic reverse control functions.
4: The equipment has the characteristics of low speed, high torque, low noise and dust, which can meet the environmental protection standard.
5: Easy adjustment, low maintenance cost, economy and durability.
6: The thickness of the tool and the number of jaws can be changed according to different materials.


Advantage of two shaft shredder


1. The dual shaft shredding machine is firm and durable. It is suitable for recycling all kinds of large solid materials, refractory materials, plastic containers, plastic barrels and plastic backing plates. Shredded particles can be as small as 20mm according to different needs. And we can provide all kinds of feeding buckets according to customer needs. The equipment has the advantages of low speed knife rotation, low noise and more energy saving.

2. It is composed of moving cutter head and fixed cutter to complete the function of chopping materials. The cutter head is composed of a base shaft and several moving cutter blocks in the shape of quadrilateral. The moving blade block has 4 cutting edges, which can be replaced. The moving cutter blocks are arranged in V-shaped rows along the base shaft, fixed on the base shaft with screws, and rotate together with the base shaft to form a moving cutter head. There are two groups of static knives, which are fixed on the frame. The material is pushed by the horizontal hydraulic cylinder to feed in the direction of the cutter head. The speed is stable and adjustable, and the propulsion force is large and uniform. It is suitable for recycling all kinds of large solid materials, irregular and difficult to treat materials, plastic containers, plastic barrels, tubes, films, fibers, paper, etc. The spindle speed is 45 ~ 100 rpm.

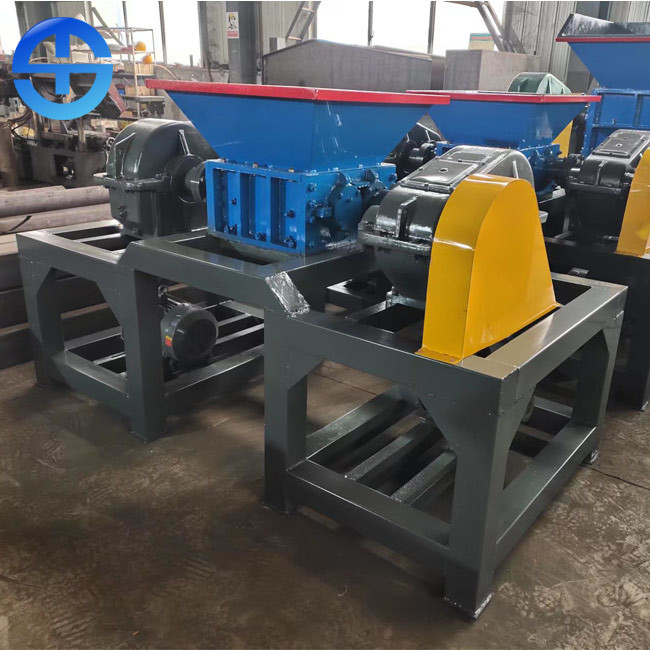

 500kg/H Q235 Steel Metal Scrap Baling Machine Two Shaft Shredder 0
