400-500kg/H Power 11kw Scrap Metal Recycling Machine Metal Shredder

Minimum Order Quantity : 1 set Price : Negotiated
Packaging Details : Ply wooden case Delivery Time : 20 work days
Payment Terms : L/C, T/T, Western Union, MoneyGram Supply Ability : 20 sets per month
Place of Origin: China Brand Name: TMS
Certification: ISO, CO, CE Model Number: SSJ-400

Detail Information

Name: Metal Shredder Function: Shredding
Machine Size: 2200*1100*1550 Motor Power: 2*11kw
Productivity: 400-500kg/h Blade: 20 Pieces
Blade Materials: 9crsi Voltage: 380 V Or Customized
High Light:

11kw Scrap Metal Recycling Machine

,

500kg/H Scrap Metal Recycling Machine

,

400kg/H Metal Shredder

Product Description

400-500kg/H Power 11kw Scrap Metal Recycling Machine Metal Shredder

Introduction of scrap metal recycling machine

It is used to crush large hollow materials (large containers such as plastic barrels) and various mixed wastes, especially those containing metal, or pre crush those containing sediment and other wastes that are easy to wear tools.
The machine runs at low speed, and the noise and dust can reach high environmental protection standards. The thickness of the tool and the number of claws can be changed according to different materials.
The shredder is mainly composed of shredding blade group, bearing box, box support, feeding system, power system and electrical control system.

Technical data of scrap metal recycling machine






Main body

ModelSSJ-400
BodyIt adopts split type for easy disassembly and assembly, welded by Q235 steel plate.
Dimension2200*1100*1550mm
Power11kw*2
Speed15-18 r/min
Reducer speed ratio45.87
Frame100*100 channel steel welded









Blade

Quantity20 pieces
Cutter head materialAlloy material
Cutter head hardness range53-58
Cutter head thickness20mm
Blade typeThe outer tooth adopts small hook angle outer triangular tooth shape, and the inner hole is hexagonal
No. of cutter head teethCustomized according to customer requirements
ShaftSpindle formHexagonal shaft
Shaft diameter100mm
SpacerQuantity20 pieces
Capacity400-500kg/h


Features of scrap metal recycling machine

1: The heavy moving knife has high crushing power. The knives are cast with alloy steel, which is firm and has long service life.
2: The frame plate is thick, can resist high torque and is very strong.
3: Microcomputer (PC) automatic control is adopted, with start, stop, reverse and overload automatic reverse control functions.
4: The equipment has the characteristics of low speed, high torque, low noise and dust, which can meet the environmental protection standard.
5: Easy adjustment, low maintenance cost, economy and durability.
6: The thickness of the tool and the number of jaws can be changed according to different materials.

Working process of scrap metal recycling machine

The main working parts of scrap metal shredder are a pair of relatively rotating rollers, which are equipped with spirally arranged gear teeth. When the material enters the machine, it is torn and sheared by the teeth of the high hardness wear-resistant material which rotates staggeredly and is splitted, broken and crushed into smaller than the set size, and then forcibly excluded from the machine. Roller driven by motor through reducer has super-large torque, encounter difficult debris, will automatically reverse under the action of PLC automatic control system, and many times positive and negative, until the material is broken and discharged.

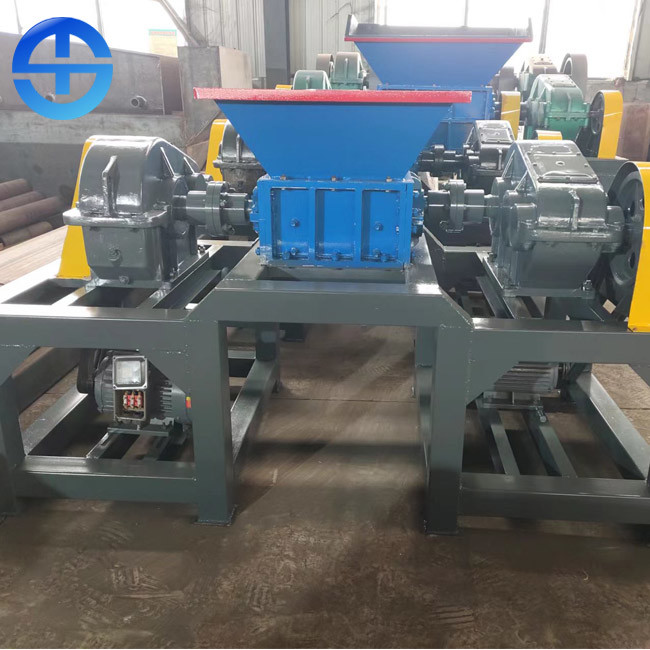

400-500kg/H Power 11kw Scrap Metal Recycling Machine Metal Shredder 0
