100% Separating Radiator Separator Machine 1800*800*1200mm Size

Minimum Order Quantity : 1 set Price : Negotiable
Packaging Details : Exported ply wooden case for radiator recycling machine Delivery Time : 7 work days
Payment Terms : L/C, T/T, Western Union Supply Ability : 30 sets per month
Place of Origin: Zhengzhou, China Brand Name: TMS
Certification: CO, ISO Model Number: TMS-017

Detail Information

Name: Radiator Separator Machine Function: Separating
Total Power: 7kw Daily Capacity: 2-3 Ton/day
Dimension: 1800*800*1200mm Package Box: 1900*900*1300mm
Net Weight: 650kg Voltage: 380V/50HZ, 3 Phase
High Light:

100% Separating Radiator Separator Machine

,

3 ton / day Radiator Separator Machine

,

100% Separating radiator recycling machine

Product Description

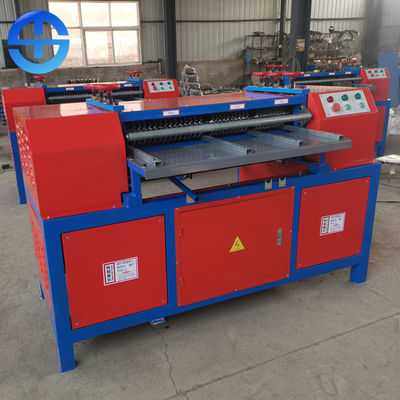

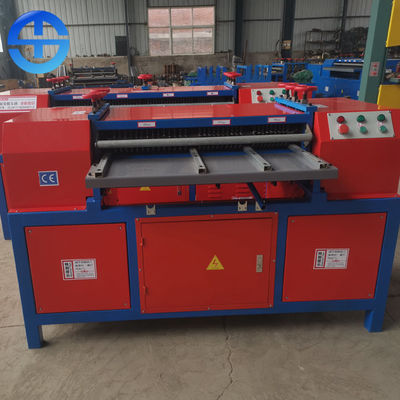

1800*800*1200mm Size 100% Separating Radiator Separator Machine



Introdcution of radaitor separator machine



The waste radiator separator machine has strong pertinence. Mainly for waste air-conditioning radiator, refrigerator radiator, car radiator, etc., Radiators are almost exclusively made of copper pipe and aluminum fin waste radiator. The radiator can be effectively separated the copper pipe from the aluminum fin.

Radiator separator machine can completely strip copper pipes inside the discarded copper aluminum air conditioning radiator, aluminum foils also keep the type of blocks, can strip the production of single-layer and double-layer copper pipes by simply setting up the same machine, copper pipes and aluminum foils can be quickly separated with high efficiency and simple operation. There are three kinds of blade center distance: 19mm, 21mm and 25mm. Before processed, the radiators shall be cut with a band saw into pieces of certain width. It can separate one layer or two layers radiators. For more than two layers radiators, it will be cut into one layer or two layers by band saw machine. Twisted radiators can not be processed.



Datas of radiator separator machine



Model TMS-017
Machine size 1800*800*1200mm
Productivity 2-3 ton/day
Motor power 3kw+4kw
Weight 600kg
Power supply 380V/50HZ, 3 Phase. Or customized as customers' requiement



Features of radiator separator machine



1). Easy to operate and the occupied area is small.

2). Recovered copper pipes are unaffected, reduce the copper loss to the minimum,
3). Cutting the single and double-layer radiator takes only several seconds,
4). Electric box and covers for engine increases safety,
5). High-efficiency up to four tons of separated material per day
6). Low noise , power consumption and save labor
7). Three cutting widths allow to work with different radiators
8). It's possible to choose non-standard cutting widths
9). Can process multi-layered radiators
10). Separate all kinds of radiator, such as air conditioner radiator, car radiator



Material Preparation of radiator separator machine



1. Iron heads of radiators must be cut off the two sides of radiators;

2. Radiators must be cut with a band saw according to the width of each Material Inlet;

3. Radiators that are more than 2 layers must be cut into one layer and two layers with the band saw;

4. Do not feed radiators into wrong Material Inlets (three inlets each are for 19mm, 21mm, 25mm radiators respective);

5. This machine is suitable for processing one layer radiators when it is shipped to customers. When you need to process two-layer radiators, just remove the iron covers from the Lower Blade Roller to expose the blades.

6. When two-layer radiators are processed, the left side of the radiators shall touch the left side of each Material Inlet, and the first copper pipe in the Upper Layer to the left side of each Material Inlet must be nearer than the first copper pipe in the Lower Layer to the Left Side of each Material Inlet.

7. For both one-layer and two-layer radiators, the left side of radiators must touch the Guiding Rulers and are radiators must be fed into Material Inlets along the guiding rulers.

8. When radiators are fed into Material Inlets correct, each Feeding Gear at the Material Inlet must be at the middle of each two copper pipes; or copper pipes and aluminum will not be separated.

9. Twisted radiators can not be processed.
