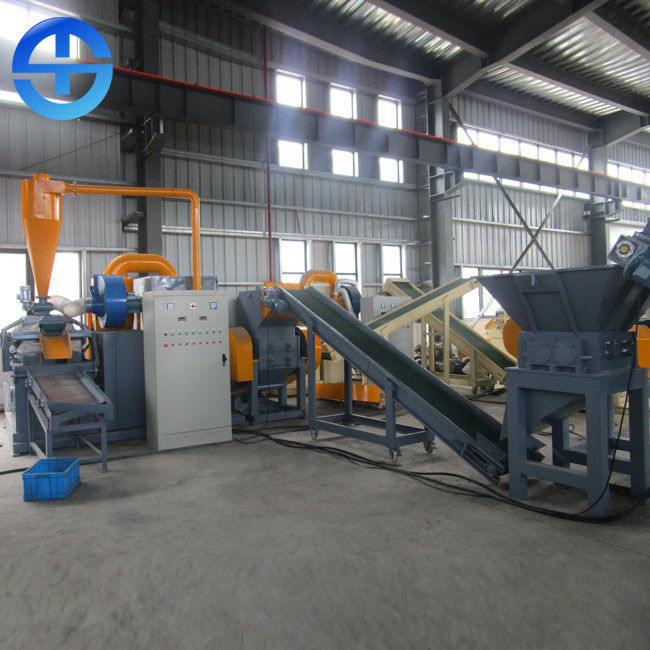

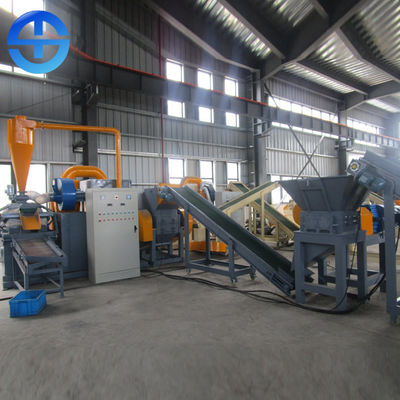

TMS-800 scrap copper wire cable granulator machine 500-600 kg/h
Machine summary
copper cable wire granulator is a complete production line which is used for handling auto wires, communication cables and kinds of miscellaneous wires and cables. It has a compact structure, stable and reliable performance. Scrap copper cables are shredded by the two crushers, then plastic pieces and copper granules are separated by vibration and airflow. They come out from different outlets, dust is collected by dust collector(can recycle the copper cables with diameter less than 25mm, better for single conductor diameter of 0.2-0.5mm).
Machine working process
The material is feed into the first shredder, which shred the cables (φ≤25mm) into length 10—20mm pieces, then convey these pieces into second crusher, the second shredder( 10 pcs rotating blades, 4 pcs fixed blades) will shred the cables into length 3-5mm plastic pieces or coppers pieces. Finally, under the force of push of airflow and vibrating of screen, the pieces will move forward one the screen,the separate copper from plastic and send them out through air duct of vibrating suction.
Power list for machine
| Item | Voltage | Power(kw) | |
| Air Separator | Bottom Blower | 380V/50HZ | 4 |
| Vibrator | 380V/50HZ | 1.5 | |
| Suction Blower | 380V/50HZ | 4 | |
| High pressure fan | 380V/50HZ | 5.5 | |
| Airlock | 380V/50HZ | 0.25 | |
| Conveyor A | 380V/50HZ | 2.2 | |
| First crusher | 380V/50HZ | 22 | |
| Conveyor B | 380V/50HZ | 2.2 | |
| Second Shredder | 380V/50HZ | 37 | |
| Small vibrating table | 380V/50HZ | 0.18 | |
