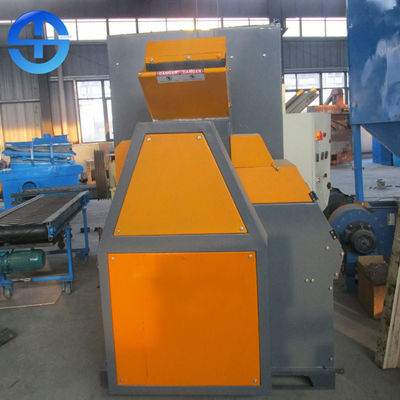

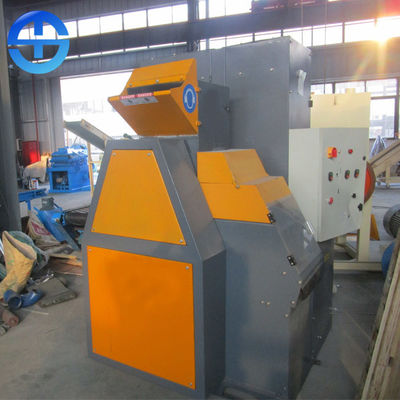

Dry Type Scrap Metal Recycling Machine Copper Wire Granulator 1500×1500×1900 Mm
Product Details:
| Place of Origin: | Henan, China (Mainland) |
| Brand Name: | TMS |
| Certification: | CO, ISO |
| Model Number: | Mini-400 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | Standard export ply wooden case. |
| Delivery Time: | 15 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50 sets per month |
|
Detail Information |
|||
| Name: | Copper Wire Granulator | Type: | Dry Type |
|---|---|---|---|
| Power: | 11.92kw | Function: | Separate Copper From Plastic |
| Separating Rate: | 99.9% | Output: | 80-100 Kg/h |
| Size: | 1500*1500*1900 Mm | Weight: | 750kg |
| Highlight: | copper cable granulator machine,scrap metal recycling equipment |
||
Product Description
Dry type scrap metal recycling machine copper wire granulator
Copper wire granulator is used for crsuhing the scrap copper wires/cablesand separating the copper from plastic, such as auto wires, communication cables and kinds of miscellaneous wires and cables.
Scrap wires and cables are crushed into plastic and copper granules by crusher. Then plastic granules and copper granules are separated under the double action of airflow suction and linear excitation of screen vibrator, so that they can make great efforts to move forward in the waveform of screen surface. Copper, plastic and mixture of copper and plastic are sent out from different outlets respectively. Dust is sent to the dust collector through the air duct. To ensure the copper purity, two small vibrating table are put under the outlet of copper and plastic. It can separate second time, so the copper purity can reach 100%. (1-20MM waste cable can be machined, and 0.2-0.3mm diameter of single conductor is the best.)
Feature of Copper Wire Granulator
1. Control box control coordinates the operation of each system
2. The air lock regulates the bottom wind.
3. Running stably
4. The recovery rate of copper granules can reach 99%.
| Model | Size (mm) | Capacity | Wire diameter range | Power | Voltage | Weight |
| Mini-400 |
1500*1500*1900 |
80-100 kg/h | 0.1-20 mm | 11.92kw | 380/240V | 750kg |
