2000kg 3000kg Per Day Scrap Metal Recycling Machine Radiator Separator
Contact Person : Thomas Wang
Phone Number : +86 18203683590
WhatsApp : +8618203683590
|Minimum Order Quantity :||1 set||Price :||negotiable|
|Packaging Details :||Standard export ply wooden case.||Delivery Time :||15 work days|
|Payment Terms :||L/C, T/T, Western Union||Supply Ability :||50 sets per month|
|Place of Origin:||Henan, China (Mainland)||Brand Name:||TMS|
|Certification:||CO, ISO||Model Number:||Mini-400|
|Name:||Copper Wire Recycling Machine||Type:||Dry Type|
|Power:||11.92kw||Function:||Separate Copper From Plastic|
|Separating Rate:||99.9%||Output:||80-100 Kg/h|
copper cable granulator machine,
copper wire recycling machine

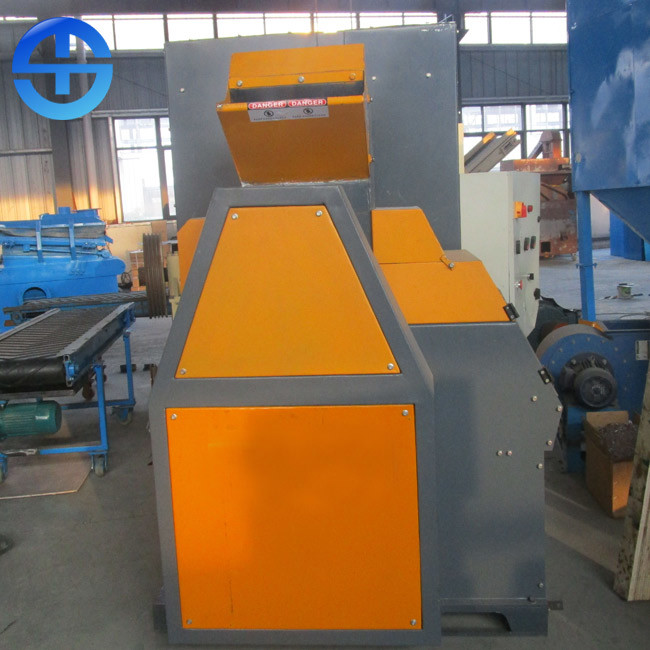

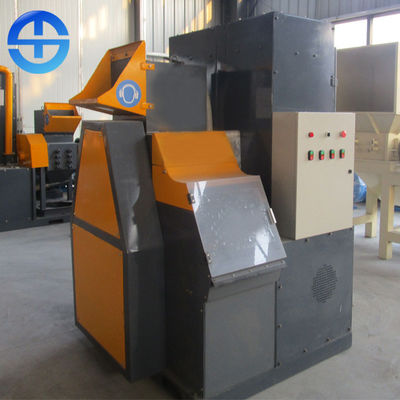

Mini-400 Scrap copper wire recycling machine with capacity 800-100 kg/h
Copper wire recycling machine is used for recycling scrap copper wires/cables, such as auto wires, communication cables and kinds of miscellaneous wires and cables.
Scrap wires and cables are crushed into plastic and copper granules. Plastic granules and copper granules are separated under the double action of airflow suction and linear excitation of screen vibrator, so that they can make great efforts to move forward in the waveform of screen surface. Copper, plastic and mixture of copper and plastic are sent out from different outlets respectively. Dust is sent to the dust collector through the air duct. (1-20MM waste cable can be machined, and 0.2-0.3mm diameter of single conductor is the best.)
1. Control box control coordinates the operation of each system
2. The air lock regulates the bottom wind.
3. Running stably
4. The recovery rate of copper granules can reach 99%.
|Model||Size (mm)||Capacity||Wire diameter range||Power||Voltage||Weight|
|80-100 kg/h||0.1-20 mm||11.92kw||380/240V||750kg|
