Hydraulic 4KW Scrap Motor Recycling Machine / Copper Cutting Machine Blue Color

Hydraulic 4KW Scrap Motor Recycling Machine / Copper Cutting Machine Blue Color

Product Details:

Place of Origin: China
Brand Name: TMS
Certification: ISO, CE, CO
Model Number: TMS-4

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 4000-6000 per set
Packaging Details: Ply wooden case. The package size is 1630 *1300*1710 mm. The package weight is 515 kg
Delivery Time: 10 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20 sets per month
Get Best Price Contact Now

Detail Information

Name: Copper Cutting Machine Function: Cut The Copper Coil
Application: Φ80 - Φ300 Mm Power: 4 Kw
Dimension: 1400*1100*1650 Mm Speed: 20-150 Pieces/hour
Weight: 430 Kg Color: Blue
High Light:

electric motor wrecker

,

electric motor recycling machine

Product Description

Hydraulic 4 KW Scrap Motor Stator Recycling Equipment Copper Cutting Machine



Description of copper cutting machine



Hydraulic copper cutting machine is a device for treating the stator of waste motor. This machine is mainly used to process the stator of the waste motor to achieve the copper extraction effect, so as to realize the full utilization of resources. If you have a large number of stator raw materials around you and want to take out the copper in good condition, this equipment can meet the requirements well. Copper cutting machine can disassemble different specifications of motor, stator diameter D= Φ 60mm- Φ 500mm or H = 50-315.



Motor stator recycling machine consists of two machines, copper wire cutting machine and copper wire pulling machine. Copper wire cutting machine is used to cut one end of copper windings in the motor stator, while copper wire pulling machine is used to pull copper windings out of the motor stator.



Technical Parameters of copper cutting machine



Dimension (L*W*H) 1400*1100*1650mm
Speed 20-150 pieces/hour
Power 4kw/380V/50HZ
Net Weight 430kg
Package size (L*W*H) 1630*1300*1710mm
Gross Weight 515kg



Advantages of copper cutting machine



1. Nice appearance with reasonable structure.

2. Using high torque cylinder, which can withstand high loads of high intensity running.

3. Using international brands for hydraulic components, with air cooling system to prevent the oil temperature from too high during operation

4. We use SCHNEIDER, SIEMENS, and CHNT for electrical control system.

5.The material of blade is chisel tool steel, which is repairable and can be reused.

6. Cutting stroke with adjustable system which can be adjusted according to the size of outer diameter of the stator, improving the operating efficiency.

7. The processing of equipment is without metal loss, with improved recycling value, and environmental friendly.

8. The equipment is designed with access door, emergency stop switch to ensure safety. And adopted CE Certificate, in line with European Safety Standards.



Working principle of copper cutting machine



The copper cutting machine mainly includes body shell, cutter, roller support column, stator plate and switch. When the motor is disassembled, the waste motor stator is first put on the roller support column, and the motor stator is processed by the plate. The cutter moves downward to cut off (cut off) the copper coil of the motor stator, and then pull the copper wire several times to pull out all the copper wires( This copper cutting machine can also be used with copper pulling machine, that is, after the copper chopper cuts the stator copper wire, the copper wire is pulled out through the copper pulling machine.)



Working condition of copper cutting machine



(1) The working temperature is - 20 ℃ - 40 ℃, and it runs stably at this temperature.

(2) The working humidity is below 90%

(3) The noise of the equipment is not more than 75db.

(4) Power supply condition: 50 Hz ± Hz voltage 380 / 220 VAC ± 10% (three phase four wire)

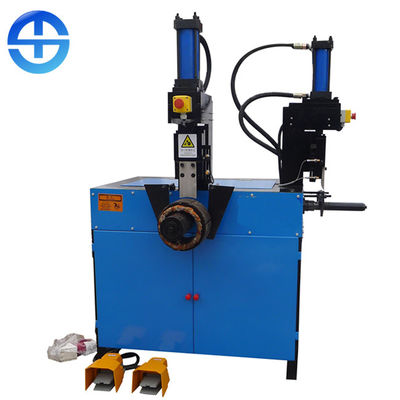

Hydraulic 4KW Scrap Motor Recycling Machine / Copper Cutting Machine Blue Color 0

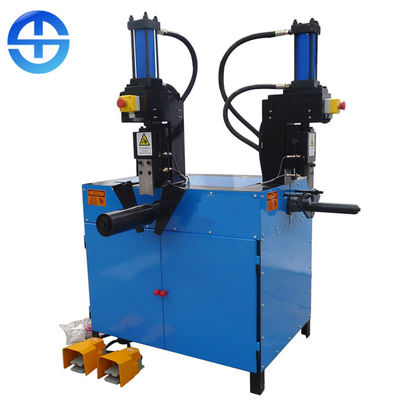

Hydraulic 4KW Scrap Motor Recycling Machine / Copper Cutting Machine Blue Color 1
