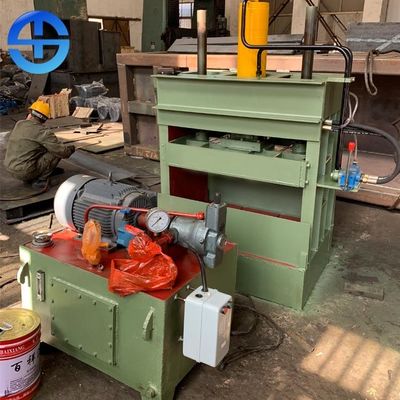

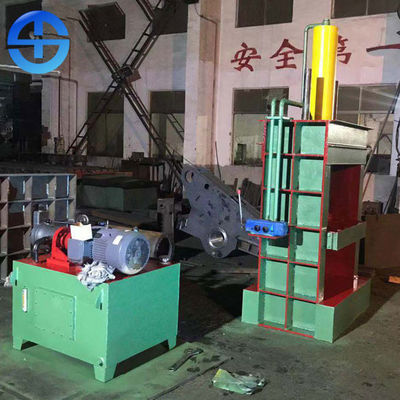

100 Ton Pressure Scrap Metal Compactor Machine PLC Hydraulic Paint Bucket Flattening

Minimum Order Quantity : 1 set Price : USD 4500-5000 per set
Packaging Details : Ply wooden case or Full container Delivery Time : 10 work days
Payment Terms : L/C, T/T, Western Union, MoneyGram Supply Ability : 10 sets per month
Place of Origin: China Brand Name: TMS
Certification: ISO, CO,CE Model Number: TMS-1000

Detail Information

Name: Metal Compactor Machine Function: Press The Metal Flat
Application: Paint Bucket, Cans, Scrap Metal Pressure: 100 Ton
Power: 11 Kw Operation: Semi-automatic
Voltage: 380 V Or Customized Color: As Customer's Demand
High Light:

copper wire recycling machine


scrap metal recycling equipment

Product Description

11 KW PLC Hydraulic Paint Bucket Flattening Scrap Metal Compactor Machine

Product Description

This series of flattening machine is suitable for metal, paint barrel and gas bottle recycling industry. It can flatten metal sheet and paint barrel into flat shape. It is convenient for transportation and reduces cost.


1. High efficiency, convenient transportation.

2. Adopt the PLC semi-automatic control.

3. Working trip one time: 16 seconds.

Technical Parameters

Model Pressure Power Oil pump Opertation
TMS-1000 100T 11kw YCY40 semi-automatic
TMS-1250 125T 15kw YCY63 semi-automatic
TMS-1600 160T 18.5kw YCY80 semi-automatic
TMS-2000 200T 22kw YCY160 semi-automatic
TMS-4000 400T 30+30kw YCY160*2 semi-automatic
