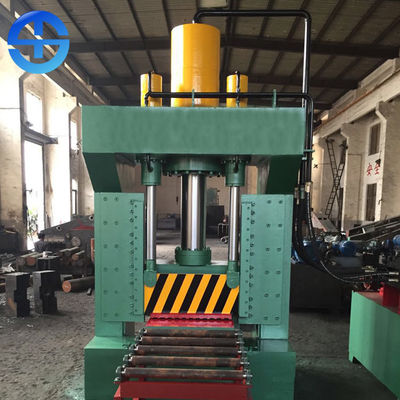

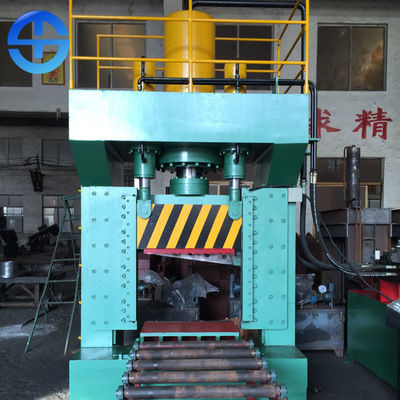

800KN Shear Force Hydraulic Metal Plate Shearing Machine For Metal Recovery Plant

Minimum Order Quantity : 1 set Price : USD 47000-55000 per set
Packaging Details : It will be loaded into one full container 1*20'GP or 1*40'GP Delivery Time : 20 work days
Payment Terms : L/C, T/T, Western Union, MoneyGram Supply Ability : 10 sets per month
Place of Origin: China Brand Name: TMS
Certification: ISO, CE, CO Model Number: MS-800

Detail Information

Name: Metal Gantry Shearing Machine Function: Shear Scrap Metal Plate
Appliction: Metal Recovery Plant Power: 15 Kw
Shear Force: 800 KN Blade Length: 800 Mm
Shearing Speed: 6 Times/min Voltage: 380 V Or Customized
High Light:

copper wire recycling machine


scrap metal recycling equipment

Product Description

800 KN Shear Force Hydraulic Gantry Shearing Machine Metal plate Shearing Machine



Product Description

Gantry shearing machine is a kind of equipment suitable for shearing heavy scrap steel. It is used for light and thin steel, steel bar, steel plate, nickel plate, steel plate, round steel, steel pipe, scrap copper, scrap iron, light metal structural parts, stainless steel, metal block, automobile body, aluminium alloy, copper material, scrap iron, steel wire, metal block, etc. The scrap metal is cut short in cold state and processed into qualified burden. Gantry shearing machine has a wide range of applications. It can be used not only as a processing equipment for metal recovery processing units, but also as a furnace material processing equipment for foundry workshop and metal cutting processing equipment for mechanical construction industry.

Gantry shearing machine is composed of frame, hydraulic cylinder, hydraulic power system and electrical system. In working principle, the scrap is automatically sent to the cutting edge by conveyor belt after the material is grabbed to the feeding box, and the feeding speed can be adjusted by speed regulating motor. Side extrusion cylinders are installed on both sides of the tank. Large waste materials, such as scrap cars, can not be cut through the gantry scissors. The waste can be squeezed and reduced through the side extrusion cylinder, and then sent to the cutting edge through the conveyor to cut off.

Application Materials

Metal, iron sheet, cast iron, thin iron, thin iron sheet, light and thin material, steel, color steel tile, scrap steel, scrap iron, aluminium alloy, channel steel, angle steel, angle iron, copper plate, metal plate, aluminium profile, scrap steel bar, aluminium plate, iron plate, steel plate, round steel, scrap metal.

Product Feature

1. The gantry shearing machine adopts hydraulic transmission. Compared with the mechanical shearing machine, it has the advantages of small size, light weight, small inertia, low noise, smooth movement, easy operation, flexibility, large shearing section and easy adjustment of shear edge. It is safe to operate and easy to realize overload protection.

2. Gantry shearing machine has manual, automatic and remote control functions. The operation and control are convenient and simple. The shearing edge can start and stop at any position in the working process. The size of the shearing edge can be controlled arbitrarily according to the size of the material being sheared, so as to achieve economic benefits.

3. The gantry shearing machine has designed a fast type. Without increasing the power of the motor and the displacement of the oil pump, the speed keeps fast under the shearing (about 400-1600 tons). When shearing large materials, the speed will automatically change. The original shear force is restored and the work efficiency is nearly doubled.

Technical Parameters


MS-800 MS-1600 MS-2000 MS-2500 MS-3150 MS-4000 MS-5000
Max Shear Force 800KN 1600KN 2000KN 2500KN 3150KN 4000KN 5000KN
Power 15kw 18.5kw 22kw 30kw 18.5kw*2 22kw*2 30kw*2
Pressure plate force 125KN 250KN 250KN 250KN 250KN 250KN 250KN
Blades Length 800mm 500mm 600mm 800mm 800mm 900mm 1000mm
Shear Angle 5 5 4 4 4.5 5 5
Worktable Height 880mm 880mm 780mm 780mm 780mm 700mm 700mm
800KN Shear Force Hydraulic Metal Plate Shearing Machine For Metal Recovery Plant 0
