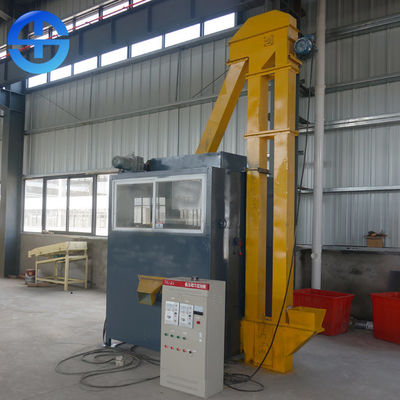

Electrostatic Separator Scrap Metal Processing Equipment 99.99% Separating Rate High Voltage

Minimum Order Quantity : 1 set Price : USD 7000- USD 25000 per set
Packaging Details : Ply wooden case or Full container Delivery Time : 15 work days
Payment Terms : L/C, T/T, Western Union Supply Ability : 10 sets per month
Place of Origin: CHINA Brand Name: TMS
Certification: ISO, CE, CO Model Number: TS-018

Detail Information

Name: Electrostatic Separator Function: Separate Metal From Non-metal
Separation Rate: 99.99% Power: 4 Kw
Output: 100-150 Kg/h High Voltage: 0-80 KV
Rotate Speed: 0-500 Rm/min Size: 1380*1750*3500 Mm
High Light:

copper wire recycling machine


scrap metal recycling equipment

Product Description

99.99% Separating Rate High-Voltage Electrostatic Separator Machine

Product Description

Electrostatic separator (also known as high-voltage electrostatic separator) is mainly composed of high-voltage electrostatic generator, frame, insulating board, material conveyor chain, power wheel, runner, recycling plate chain, discharge electrode and metal protective net. It is mainly used for separating metal and non-metal mixtures in crushed slices such as waste printed circuit boards and waste cables. The separating effect is good. The separated magazine can be less than 1%, that is, the sorting effect can reach 99.9%, and it belongs to complete physical separation. After separation, the properties of various materials will not change and the recycling will not be affected.

Working principle

Electrostatic separation uses the difference of electrical properties of materials in the high voltage electric field to achieve the separation purpose. When materials are brought to the high voltage electric field by corona electrodes through a rotating drum, materials are reused by various electric power, centrifugal force and gravity. Because of the different electrical properties of various materials and the different stress states, the trajectories of materials falling are different, thus separating the mixture of metal and non-metal.

Product Features

1. Application to separation of dry metal and nonmetal mixtures

2. It is not suitable for the separation of large particulate matter. The material must be crushed before separation.

3. Suitable for material granularity: 0.04-1 mm

4. Electrostatic separators are often used in cleaning operations.

5. There is no need to use chemicals to dissolve waste, so it will not pollute the environment.

Technical Parameters

Model Power Roller diameter Roller length (mm) Rotate speed(rm/min) High Voltage  Output (kg/h) Size(m)
TS-018 4kw 320 mm 1000 0-500 0-60 KV 100-150 1.38*1.75*3.5
TS-019 4.5kw 320 mm 1500 0-500 0-80 KV 150-200 1.38*2.3*3.5
TS-020 4.5kw 320 mm 1800 0-500 0-80 KV 200-300 1.38*2.65*3.5
TS-021 5.2kw 320 mm 1000*2 0-500 0-90 KV 250-350 1.38*1.75*3.9
TS-022 5.2kw 320 mm 1500*2 0-500 0-90 KV 350-450 1.38*2.3*3.9
TS-023 6kw 320 mm 1800*2 0-500 0-100 KV 400-500 1.38*2.65*3.9

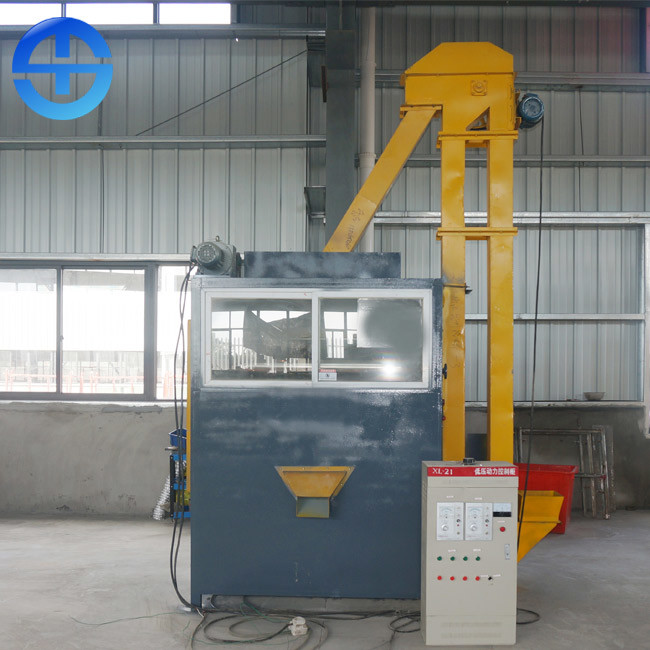

Electrostatic Separator Scrap Metal Processing Equipment 99.99% Separating Rate High Voltage 0
