Working Angle 180 Degree 2.82m/min Industrial Knife Sharpener Machines

Minimum Order Quantity : 1 set Price : Negotiable
Packaging Details : Standard exported ply wooden case Delivery Time : 15 work days
Payment Terms : L/C, T/T, Western Union Supply Ability : 30 sets per month
Place of Origin: Zhengzhou, China Brand Name: TMS
Certification: CE, ISO Model Number: TMS-017

Detail Information

Name: Straight Knife Grinder Usage: Grind Knife In Crusher
Motor: 2.2 Kw Angle: 0D-180D
Moving Speed: 2.82 M/min Dimension: 1.5*0.95*1.2m
Net Weight: 260kg Voltage: 220V/60HZ, 3Phase
High Light:

2.82m/min Industrial Knife Sharpener Machines


180 Degree Industrial Knife Sharpener Machines


2.82m/min Straight Knife Grinder

Product Description

Automatic 0-180 Degree Working Angle Straight Knife Grinder For Crusher

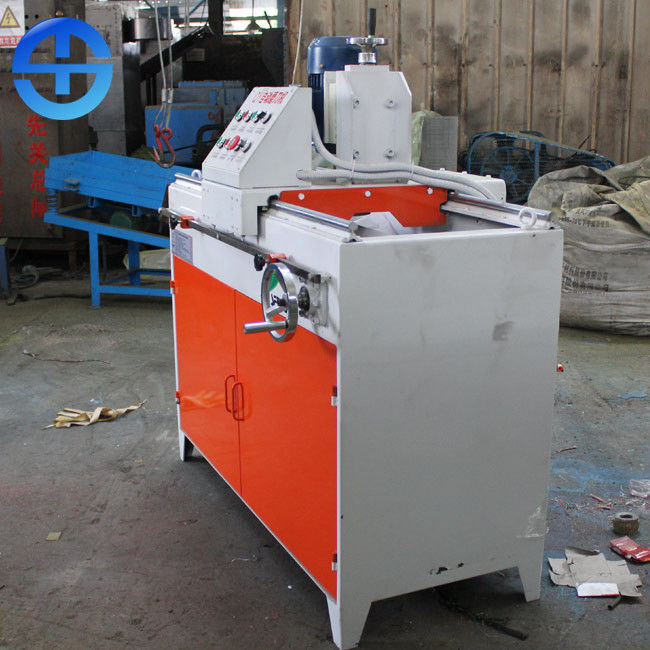

Working Angle 180 Degree 2.82m/min Industrial Knife Sharpener Machines 0


Introduction of straight knife grinder

Straight knife grinder is designed for grinding blades in copper wire granulator or plastic crusher etc which edge blunt. It is one of accessory products which can enhance working efficiency of crusher. Meanwhile it also can sharpen woodworking machine tool or other straight blade.

Straight knife grinder is composed by the airframe, working table, straight orbit, reducer, motor and electric parts. It is designed according to plastic crusher bits easy to loss which is specially used in sharpening the crusher bits. It has compact structure, comfortable outlook, high efficiency, easy control, is suitable for sharpening and processing each kind of straight edge cutting tool. It is composed of machine frame, operating platform, slide carriage, reduction motor, grinding head, electrical equipment. It is suit for our PP/PE/PET crusher.

Features of straight knife grinder

1. This machine is small in size, light in weight, fast in effect, stable in operation and easy to adjust.

2. This machine is suitbale for all kinds of straight-edged tool processing.

3. The grinding head adopts the design of automatic feed to improve the degree of automation. It effectively saves the necessary manpower and time for manual feeding and improves the labor level of the operator.

4. The working table is of electromagnetic chunk with strong magnetic power and lower consumption.
5. The spindle motor is professionally made for grinding knife, with high precision and easy maintenance.
6. The machine has a double tilting fillet to lock tight the electro-magnetic chunk, so the grinder is more stable.
7. The machine chooses rack driving, so the grinding head traveling is smoother.

Operation step of straight knife grinder

1. Put the knife on the cutting table, adjust the protrusion of the knife to about 0.5-1.0cm, and the protrusion of both ends of the knife should be the same, which can be fine adjusted with jackscrew. Turn on the magnetization switch of the electromagnetic device button to make the knife adsorb on the knife table. Adjust the position of the angle between the grinding wheel and the blade. If the blade contacts the grinding wheel, turn the feed hand wheel to separate it.

2. Turn on the power, turn on the power switch, and the machine will enter the normal working state.

3. Rotate the feed hand wheel to make the blade slowly and evenly move inward until it contacts with the grinding wheel. Adjust the contact tightness between the blade and the grinding wheel to make the grinding wheel and the blade work well.

Technical parameters of straight knife grinder

Model TMS-017
Power 2.2 kw
Angle 1-20 mm
Working angle 0-180 degree
Moving speed 2.82 m per minute
Size 1500*950*1200 mm
Weight 260 kg
Voltage 380V, 220V or Customized

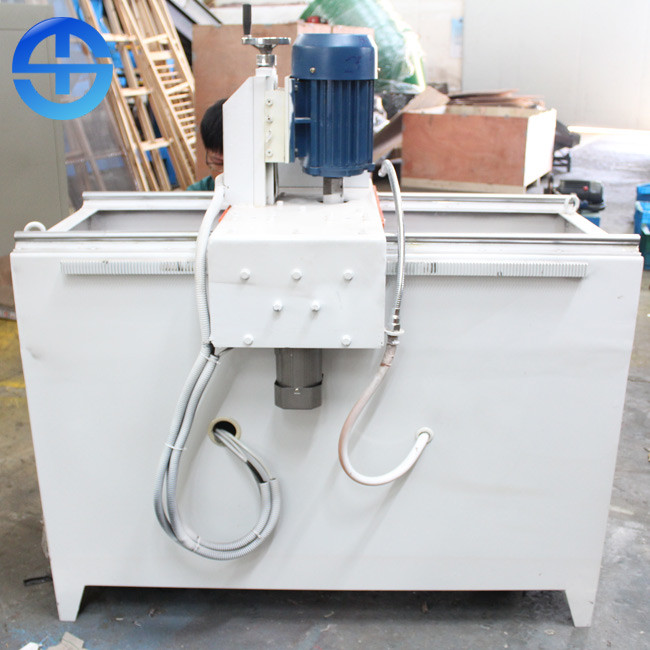

Working Angle 180 Degree 2.82m/min Industrial Knife Sharpener Machines 1
