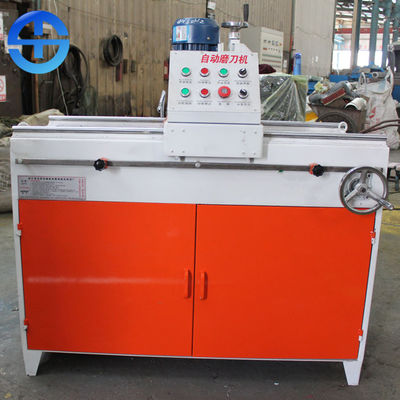

2.2Kw Industrial Knife Grinder For Straight Edged Tool Processing

2.2Kw Industrial Knife Grinder For Straight Edged Tool Processing

Product Details:

Place of Origin: Zhengzhou, China
Brand Name: TMS
Certification: CE, ISO
Model Number: TMS-017

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD1600-2200 per set
Packaging Details: Standard exported ply wooden case
Delivery Time: 15 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 sets per month
Get Best Price Contact Now

Detail Information

Name: Industrial Knife Grinder Usage: Grind Straight Knife
Electric Motor: 2.2 Kw Angle: 0-180Degree
Moving: 2.82 M/min Dimension: 150*95*120cm
Weight: 260kg Power Supply: 220V/60HZ, 3Phase
High Light:

2.2Kw Industrial Knife Grinder

,

2.82m/min Industrial Knife Grinder

,

2.2Kw knife blade grinding machine

Product Description

2.2 Kw Industrial Knife Grinder For Straight-Edged Tool Processing



Introduction of industrial knife grinder



Industrial knife grinder is designed for grinding blades in copper wire granulator or plastic crusher etc which edge blunt. It is one of accessory products which can enhance working efficiency of crusher. Meanwhile it also can sharpen woodworking machine tool or other straight blade.

Industrial knife grinder is composed by the airframe, working table, straight orbit, reducer, motor and electric parts. It is designed according to plastic crusher bits easy to loss which is specially used in sharpening the crusher bits. It has compact structure, comfortable outlook, high efficiency, easy control, is suitable for sharpening and processing each kind of straight edge cutting tool. It is composed of machine frame, operating platform, slide carriage, reduction motor, grinding head, electrical equipment. It is suit for our PP/PE/PET crusher.



Technical parameters of industrial knife grinder



Model TMS-017
Power 2.2 kw
Angle 1-20 mm
Working angle 0-180 degree
Moving speed 2.82 m per minute
Size 1500*950*1200 mm
Weight 260 kg
Voltage 380V, 220V or Customized



Features of industrial knife grinder



1. This machine is suitbale for all kinds of straight-edged tool processing.

2. The working table is of electromagnetic chunk with strong magnetic power and lower consumption.
3. The spindle motor is professionally made for grinding knife, with high precision and easy maintenance.
4. The machine has a double tilting fillet to lock tight the electro-magnetic chunk, so the grinder is more stable.
5. The machine chooses rack driving, so the grinding head traveling is smoother.

6. The sliding movement of the grinding head is controlled by the inverter. Its speed is 0-25m/min. Its speed can be fitted for both accurate grinding and rough grinding.

7.This machine is composed of main body, worktable, linear, slide block, gear motor, cooling system and electric control system, Compact structure and reasonable appearance between components. Automatic uniform speed and smooth running of grinding head and blade.



Working step of industrial knife grinder



1. Put the knife on the cutting table, adjust the protrusion of the knife to about 0.5-1.0cm, and the protrusion of both ends of the knife should be the same, which can be fine adjusted with jackscrew. Turn on the magnetization switch of the electromagnetic device button to make the knife adsorb on the knife table. Adjust the position of the angle between the grinding wheel and the blade. If the blade contacts the grinding wheel, turn the feed hand wheel to separate it.

2. Turn on the power, turn on the power switch, and the machine will enter the normal working state.

3. Rotate the feed hand wheel to make the blade slowly and evenly move inward until it contacts with the grinding wheel. Adjust the contact tightness between the blade and the grinding wheel to make the grinding wheel and the blade work well.

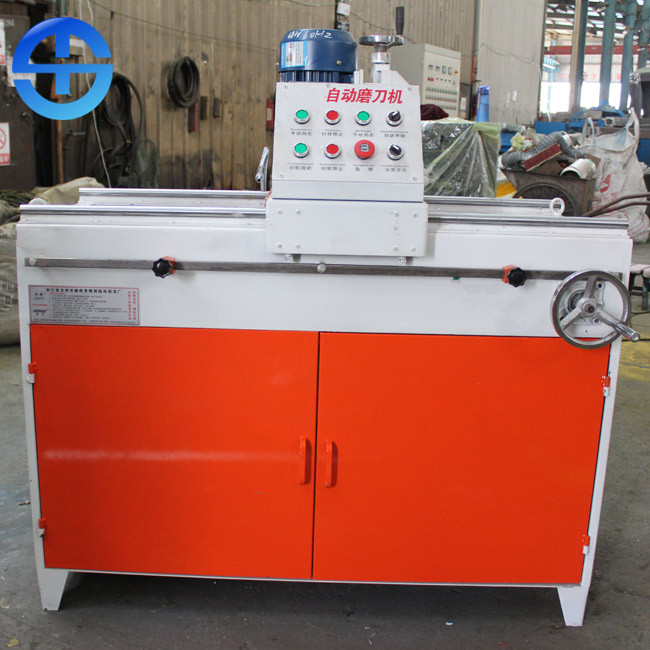

2.2Kw Industrial Knife Grinder For Straight Edged Tool Processing 0

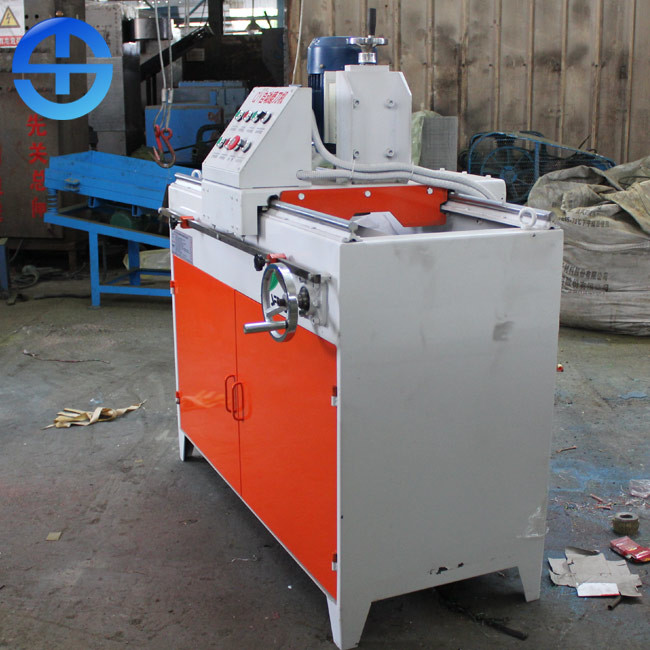

2.2Kw Industrial Knife Grinder For Straight Edged Tool Processing 1
