2.2Kw Industrial Knife Grinder For Straight Edged Tool Processing
Contact Person : Thomas Wang
Phone Number : +86 18203683590
WhatsApp : +8618203683590
|Minimum Order Quantity :||1 set||Price :||negotiable|
|Packaging Details :||Standard exported ply wooden case||Delivery Time :||15 work days|
|Payment Terms :||L/C, T/T, Western Union||Supply Ability :||30 sets per month|
|Place of Origin:||China||Brand Name:||TMS|
|Certification:||CO, ISO||Model Number:||TMS-017|
|Name:||Knife Sharpener||Function:||Sharpen Kinds Of Blade|
|Power:||2.2 Kw||Working Angle:||0-180 Degree|
|Moving Speed:||2.82 M Per Minute||Size:||1500*950*1200 Mm|
|Weight:||260 Kg||Voltage:||380 V Or Customized|
paper cutter blade sharpening machine,
guillotine blade sharpening machine

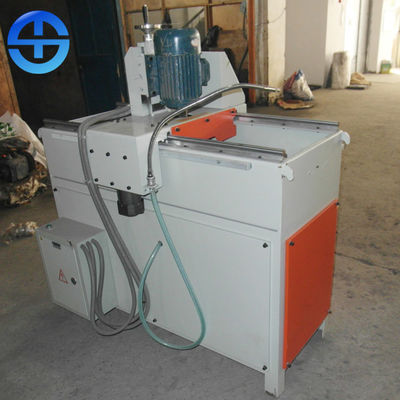

Automatic Industrial Knife Sharpener Machines Chipper Blade Sharpening Machine
Summary of Knife sharpener
The knife sharpener is designed for sharpenning blades in copper wire granulator or plastic crusher etc which edge blunt. It is one of accessory products which can enhance working efficiency of crusher. Meanwhile it also can sharpen woodworking machine tool or other straight blade.
This machine is composed of main body, worktable, linear, slide block, gear motor, cooling system and electric control system, Compact structure and reasonable appearance between components. Automatic uniform speed and smooth running of grinding head and blade.
Parameters of knife sharpener
|Working angle||0-180 degree|
|Moving speed||2.82 m per minute|
|Voltage||380V, 220V or Customized|
Characters of knife sharpener
1.Adopts high quality carbon steel welding technique,processing to gantry structure body,adjustable grinding head transmission.
2.Grinding head travel way is high carbon steel guide travel,adopts imported steel,using TAIWAN travel reduction system,add soft start device,the rack make the round trip more stable and grinding more smooth.
3.Suitable for grinding veneer peeling knife,paper cutting knife,veneer cutting knife,slicer knife etc straight line tools of cutting machines.Is a necessary knives grinding equipment for printing,paper making,wooden products,timber comprehensive use,metal plate etc industries.
4.With the characters of compact structure,beautiful design,flexible adjusting,simple operation etc.Especially suitable for large company and professional grinding industry with higher precision,save time and labor.
5.Able to customized according to user needs.(Mechanical pressing type,Electric magnetic type).
Structure of knife sharpener
1. The gantry structure fuselage is made of high quality carbon structural steel; The grinding head is driven by rolling linear guide; The cooling water is ejected from the middle of the grinding wheel (patented technology of water-cooled motor), which makes the cooling effect better;
The movement of the grinding head and the speed of the grinding wheel are controlled by the imported frequency converter, and the speed can be adjusted arbitrarily within the specified range.
2. The grinding wheel is used to feed the grinding tool automatically, and the grinding head is stick type cylinder grinding wheel, which improves the service life of the grinding wheel by 1 / 3, greatly reduces the cost of the grinding tool, and the front and back movement of the grinding head is adjustable
Application of kinfe sharpener
Knife sharpener is a kind of equipment for linear grinding of cutting blade in wood processing industry, paper industry, printing industry, wood crushing, plastic crushing, rubber industry, leather industry, metallurgical plate rolling and other industries. It can also be used for grinding general metal end face and plays an important and irreplaceable role in modern industry.
Because of the powerful function and outstanding function of the grinder, it is necessary to add oil to the track plate frequently, clean the machine after each grinding, and replace the grinding wheel in case of fracture and gap, so as to avoid irreparable damage to the product.
