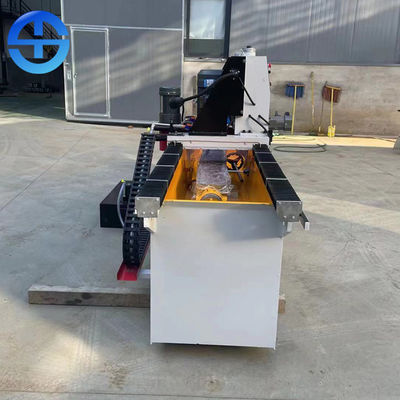

Electromagnetic Chuck Automatic Knife Grinding Machine Rack Moving 1600*180mm

Minimum Order Quantity : 1 set Price : negotiable
Packaging Details : Standard exported ply wooden case Delivery Time : 10 work days
Payment Terms : L/C, T/T, Western Union Supply Ability : 30 sets per month
Place of Origin: China Brand Name: TMS
Certification: CO, ISO Model Number: 1600

Detail Information

Name: Knife Grinding Machine Function: Grinding
Total Power: 5.5kw +1.5kw +90w Electromagnetic Chuck Size: 1600*180mm
Grinding Wheel Size: 250*110*32mm Dimension: 3400*1250*1650 Mm
Total Weight: 2 Tons Voltage: 380 V Or Customized
High Light:

Electromagnetic Chuck Automatic Knife Grinding Machine

,

Rack Moving Automatic Knife Grinding Machine

,

Electromagnetic Chuck automatic knife grinder

Product Description

Rack Moving 1600*180mm Electromagnetic Chuck Automatic Knife Grinding Machine



Summary of knife grinding machine



Knife grinding machine is also called end face knife grinder, and its structure is mainly gantry type. It is mainly aimed at institutional and enterprise users, such as knife sharpening center, forest industry, printing factory, paper-making plastics, books and periodicals printing center, medium-sized knife sharpening room, etc. Main types: fully automatic knife grinder, precision knife grinder, CNC knife grinder, woodworking knife grinder, herbal medicine knife grinder, printing knife grinder, paper cutter knife grinder, multi-function knife grinder, double grinding head knife grinder, water-cooled knife grinder, etc.



Parameters of knife grinding machine



Model 1600 high precision electromagnetic knife sharpener machine
Dimension 3400*1250*1650mm
Weight 2 tons
Size of electromagnetic chuck 1600*180mm (copper)
Lead rail Taiwan Hiwin
Moving mode Rack (frequency conversion)
Oil pump Automatic oiler
Rack 60V helical gear imported from Taiwan
Grinding wheel model 60 mesh
Grinding wheel size 250*110*32mm
Grinding wheel motor power 5.5kw
Moving motor 1.5kw
Water pump motor 90w
Voltage 380V/50HZ



Features of knife grinding machine



1. the precision guide rail is inlaid with high-quality steel belt protection on the surface, and the steel belt is easy to replace, the transmission is stable and reliable, and the service life is long.

2. variable frequency feed, and the feed amount and frequency are controlled by variable frequency; Efficient, accurate and convenient.

3. copper coil strong electromagnetic chuck, with strong suction and stable quality; The suction cup rotates accurately with automatic locking function. At the same time, various blade worktables can be customized without standard.

4. the grinding head motor can adjust the axial clearance, has high grinding accuracy, can support large grinding amount, and has stable service life.

5. the gantry type lathe bed of the automatic knife grinder is welded with high-quality steel plate and has good accuracy retention after aging treatment and precision machining.

6. centralized refueling device, one-time refueling, saving time and convenience.



Structure of knife grinding machine



1. The gantry structure fuselage is made of high quality carbon structural steel; The grinding head is driven by rolling linear guide; The cooling water is ejected from the middle of the grinding wheel (patented technology of water-cooled motor), which makes the cooling effect better;

The movement of the grinding head and the speed of the grinding wheel are controlled by the imported frequency converter, and the speed can be adjusted arbitrarily within the specified range.

2. The grinding wheel is used to feed the grinding tool automatically, and the grinding head is stick type cylinder grinding wheel, which improves the service life of the grinding wheel by 1 / 3, greatly reduces the cost of the grinding tool, and the front and back movement of the grinding head is adjustable

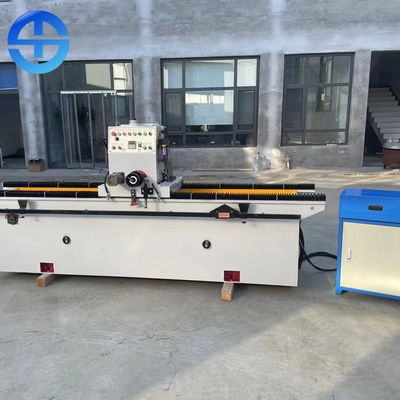

Electromagnetic Chuck Automatic Knife Grinding Machine Rack Moving 1600*180mm 0
