Automatic Oiler Industrial Knife Sharpener Machines 250*110*32mm Grinding Wheel

Minimum Order Quantity : 1 set Price : negotiable
Packaging Details : Standard exported ply wooden case Delivery Time : 10 work days
Payment Terms : L/C, T/T, Western Union Supply Ability : 30 sets per month
Place of Origin: China Brand Name: TMS
Certification: CO, ISO Model Number: 1600

Detail Information

Name: Knife Sharpener Machine Function: Sharpenning
Total Power: 5.5kw +1.5kw +90w Electromagnetic Chuck Size: 1600*180mm
Grinding Wheel Size: 250*110*32mm Dimension: 3400*1250*1650 Mm
Total Weight: 2000kg Voltage: 380V/50HZ
High Light:

Automatic Oiler Industrial Knife Sharpener Machines

,

Grinding Wheel Industrial Knife Sharpener Machines

,

Automatic Oiler knife sharpening grinder

Product Description

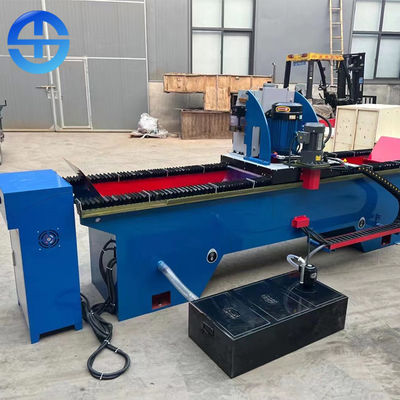

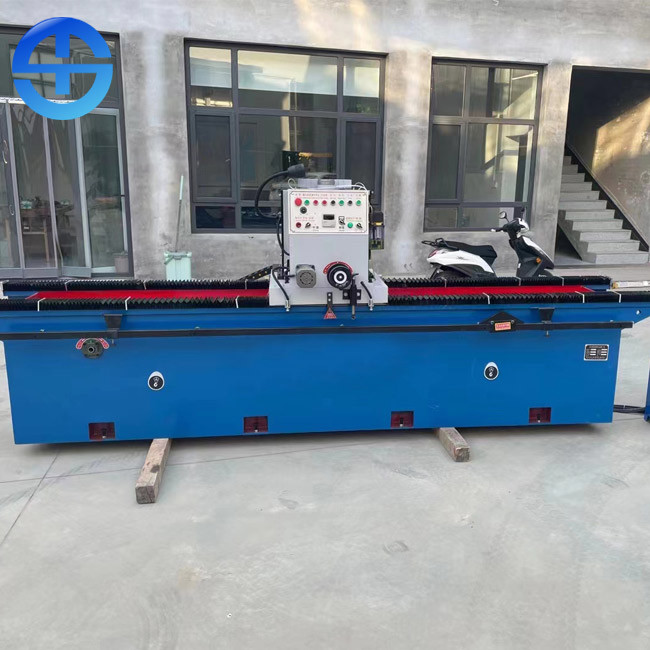

Automatic Oiler 250*110*32mm Grinding Wheel Knife Sharpener Machine



Summary of knife sharpener machine



Knife grinding machine is also called end face knife grinder, and its structure is mainly gantry type. It is mainly aimed at institutional and enterprise users, such as knife sharpening center, forest industry, printing factory, paper-making plastics, books and periodicals printing center, medium-sized knife sharpening room, etc. Main types: fully automatic knife grinder, precision knife grinder, CNC knife grinder, woodworking knife grinder, herbal medicine knife grinder, printing knife grinder, paper cutter knife grinder, multi-function knife grinder, double grinding head knife grinder, water-cooled knife grinder, etc.



Parameters of knife sharpener machine



Model 1600 high precision electromagnetic knife sharpener machine
Dimension 3400*1250*1650mm
Weight 2 tons
Size of electromagnetic chuck 1600*180mm (copper)
Lead rail Taiwan Hiwin
Moving mode Rack (frequency conversion)
Oil pump Automatic oiler
Rack 60V helical gear imported from Taiwan
Grinding wheel model 60 mesh
Grinding wheel size 250*110*32mm
Grinding wheel motor power 5.5kw
Moving motor 1.5kw
Water pump motor 90w
Voltage 380V/50HZ



Features of knife sharpener machine



1. the precision guide rail is inlaid with high-quality steel belt protection on the surface, and the steel belt is easy to replace, the transmission is stable and reliable, and the service life is long.

2. variable frequency feed, and the feed amount and frequency are controlled by variable frequency; Efficient, accurate and convenient.

3. copper coil strong electromagnetic chuck, with strong suction and stable quality; The suction cup rotates accurately with automatic locking function. At the same time, various blade worktables can be customized without standard.

4. the grinding head motor can adjust the axial clearance, has high grinding accuracy, can support large grinding amount, and has stable service life.

5. the gantry type lathe bed of the automatic knife grinder is welded with high-quality steel plate and has good accuracy retention after aging treatment and precision machining.

6. centralized refueling device, one-time refueling, saving time and convenience.



Application of kinfe sharpener machine



Knife sharpener machine is a kind of equipment for linear grinding of cutting blade in wood processing industry, paper industry, printing industry, wood crushing, plastic crushing, rubber industry, leather industry, metallurgical plate rolling and other industries. It can also be used for grinding general metal end face and plays an important and irreplaceable role in modern industry.

Because of the powerful function and outstanding function of the grinder, it is necessary to add oil to the track plate frequently, clean the machine after each grinding, and replace the grinding wheel in case of fracture and gap, so as to avoid irreparable damage to the product.
