5.5kw 1.5kw 90w Power Knife Sharpener Machine 3400*1250*1650mm Size

Minimum Order Quantity : 1 set Price : negotiable
Packaging Details : Standard exported ply wooden case Delivery Time : 10 work days
Payment Terms : L/C, T/T, Western Union Supply Ability : 30 sets per month
Place of Origin: China Brand Name: TMS
Certification: CO, ISO Model Number: 1600

Detail Information

Name: Knife Sharpener Function: Sharpenning Knife
Total Power: 5.5kw +1.5kw +90w Electromagnetic Chuck Size: 1600*180mm
Grinding Wheel Size: 250*110*32mm Dimension: 3400*1250*1650 Mm
Total Weight: 2000kg Voltage: 380V/50HZ
High Light:

5.5kw Knife Sharpener Machine

,

1.5kw Knife Sharpener Machine

,

5.5kw knife sharpening equipment

Product Description

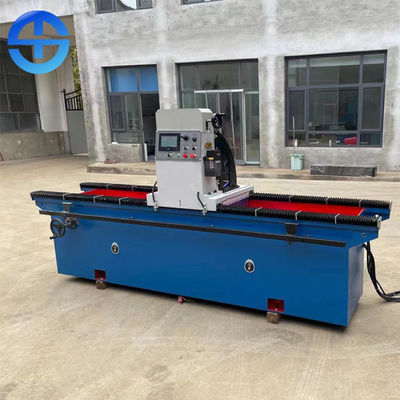

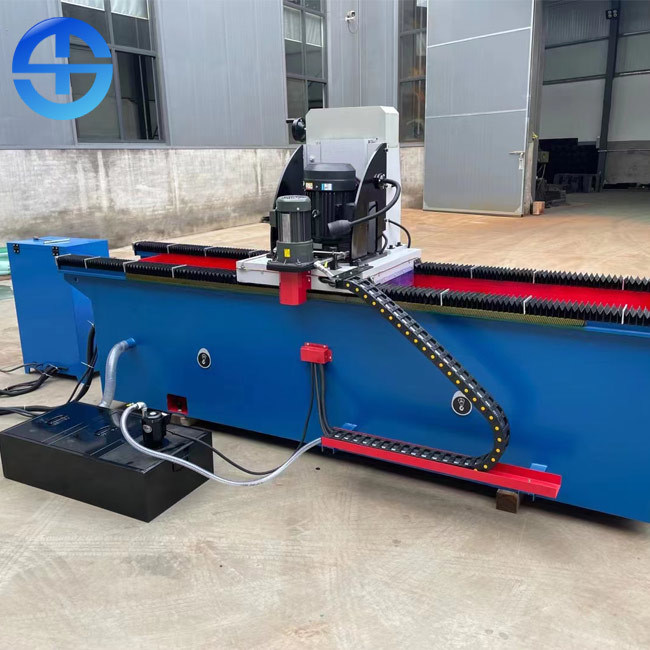

3400*1250*1650mm Size 5.5kw 1.5kw 90w Power Knife Sharpener machine



Summary of knife sharpener



Knife sharpener is designed for grinding blades in copper wire granulator or plastic crusher etc which edge blunt. It is one of accessory products which can enhance working efficiency of crusher. Meanwhile it also can sharpen woodworking machine tool or other straight blade.

Industrial knife grinder is composed by the airframe, working table, straight orbit, reducer, motor and electric parts. It is designed according to plastic crusher bits easy to loss which is specially used in sharpening the crusher bits. It has compact structure, comfortable outlook, high efficiency, easy control, is suitable for sharpening and processing each kind of straight edge cutting tool. It is composed of machine frame, operating platform, slide carriage, reduction motor, grinding head, electrical equipment. It is suit for our PP/PE/PET crusher.



Parameters of knife sharpener



Model 1600 high precision electromagnetic knife sharpener machine
Dimension 3400*1250*1650mm
Weight 2 tons
Size of electromagnetic chuck 1600*180mm (copper)
Lead rail Taiwan Hiwin
Moving mode Rack (frequency conversion)
Oil pump Automatic oiler
Rack 60V helical gear imported from Taiwan
Grinding wheel model 60 mesh
Grinding wheel size 250*110*32mm
Grinding wheel motor power 5.5kw
Moving motor 1.5kw
Water pump motor 90w
Voltage 380V/50HZ



Features of knife sharpener



1. the precision guide rail is inlaid with high-quality steel belt protection on the surface, and the steel belt is easy to replace, the transmission is stable and reliable, and the service life is long.

2. variable frequency feed, and the feed amount and frequency are controlled by variable frequency; Efficient, accurate and convenient.

3. copper coil strong electromagnetic chuck, with strong suction and stable quality; The suction cup rotates accurately with automatic locking function. At the same time, various blade worktables can be customized without standard.

4. the grinding head motor can adjust the axial clearance, has high grinding accuracy, can support large grinding amount, and has stable service life.

5. the gantry type lathe bed of the automatic knife grinder is welded with high-quality steel plate and has good accuracy retention after aging treatment and precision machining.



Application of kinfe sharpener



Knife sharpener is a kind of equipment for linear grinding of cutting blade in wood processing industry, paper industry, printing industry, wood crushing, plastic crushing, rubber industry, leather industry, metallurgical plate rolling and other industries. It can also be used for grinding general metal end face and plays an important and irreplaceable role in modern industry.

Because of the powerful function and outstanding function of the grinder, it is necessary to add oil to the track plate frequently, clean the machine after each grinding, and replace the grinding wheel in case of fracture and gap, so as to avoid irreparable damage to the product.



5.5kw 1.5kw 90w Power Knife Sharpener Machine 3400*1250*1650mm Size 0
