Moving 3m Per Minute 2.2kw Industrial Knife Grinding Machine

Minimum Order Quantity : 1 set Price : negotiable
Packaging Details : Standard exported ply wooden case Delivery Time : 15 work days
Payment Terms : L/C, T/T, Western Union Supply Ability : 30 sets per month
Place of Origin: China Brand Name: TMS
Certification: CO, ISO Model Number: TMS-017

Detail Information

Name: Knife Grinding Machine Function: Grind Kinds Of Blade
Motor Power: 2.2 Kw Angle: 0-180D
Moving Speed: 2.82 M/min Dimension: 1500*950*1200 Mm
Net Weight: 260 Kg Voltage: 380V/50HZ, 3Phase
High Light:

2.2kw Industrial Knife Grinding Machine


3m Per Minute Industrial Knife Grinding Machine


2.2kw industrial knife grinder

Product Description

Moving 3m Per Minute Power 2.2kw Industrial Knife Grinding Machine

Description of knife grinding machine

Knife grinding machine is designed for grinding blades in copper wire granulator or plastic crusher etc which edge blunt. It is one of accessory products which can enhance working efficiency of crusher. Meanwhile it also can sharpen woodworking machine tool or other straight blade.

Knife grinding machine is composed by the airframe, working table, straight orbit, reducer, motor and electric parts. It is designed according to plastic crusher bits easy to loss which is specially used in sharpening the crusher bits. It has compact structure, comfortable outlook, high efficiency, easy control, is suitable for sharpening and processing each kind of straight edge cutting tool. It is composed of machine frame, operating platform, slide carriage, reduction motor, grinding head, electrical equipment. It is suit for our PP/PE/PET crusher.

Technical parameters of knife grinding machine

Model TMS-017
Power 2.2 kw
Angle 1-20 mm
Working angle 0-180 degree
Moving speed 2.82 m per minute
Size 1500*950*1200 mm
Weight 260 kg
Voltage 380V, 220V or Customized

Main function configuration of knife grinding machine

● dovetail guide rail

● centralized refueling device

● PLC programming control system

● dust cover device

● imported electrical components (optional device)

● scraper clamp (optional device)

Features of knife grinding machine

1. This machine is small in size, light in weight, fast in effect, stable in operation and easy to adjust.

2. This machine is suitbale for all kinds of straight-edged tool processing.

3. The grinding head adopts the design of automatic feed to improve the degree of automation. It effectively saves the necessary manpower and time for manual feeding and improves the labor level of the operator.

Operation of knife grinding machine

1. Put the knife on the cutting table, adjust the protrusion of the knife to about 0.5-1.0cm, and the protrusion of both ends of the knife should be the same, which can be fine adjusted with jackscrew. Turn on the magnetization switch of the electromagnetic device button to make the knife adsorb on the knife table. Adjust the position of the angle between the grinding wheel and the blade. If the blade contacts the grinding wheel, turn the feed hand wheel to separate it.

2. Turn on the power, turn on the power switch, and the machine will enter the normal working state.

3. Rotate the feed hand wheel to make the blade slowly and evenly move inward until it contacts with the grinding wheel. Adjust the contact tightness between the blade and the grinding wheel to make the grinding wheel and the blade work well.

Debugging of knife grinding machine

First of all, when debugging the sharpener, we need to adjust the angle of the sharpener. At this time, we can use the rotation of the adjusting wire and the adjustment of the slide table to achieve; secondly, we need to adjust the cutting amount, shake the hand wheel, so that the slide table seat can move forward and backward to complete; there is also the extension of the sharpener, at this time, we can use the jackscrew to adjust.

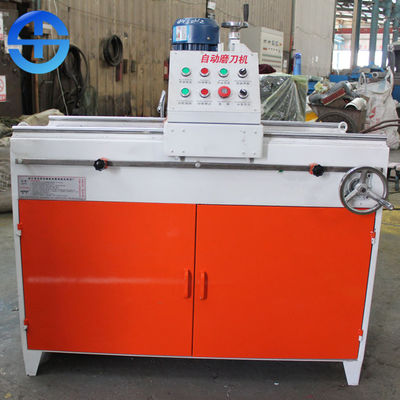

Moving 3m Per Minute 2.2kw Industrial Knife Grinding Machine 0

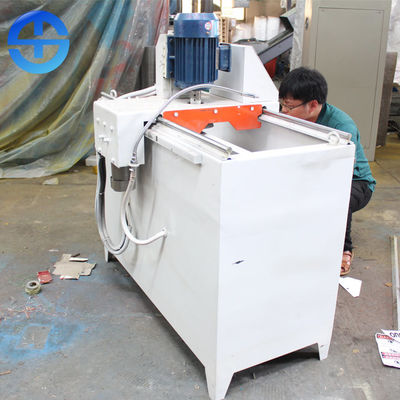

Moving 3m Per Minute 2.2kw Industrial Knife Grinding Machine 1
