3-5 Block/Min 30kw Manual Briquette Press Make Metal Briquette

3-5 Block/Min 30kw Manual Briquette Press Make Metal Briquette

Product Details:

Place of Origin: Zhengzhou, China
Brand Name: TMS
Certification: CE, ISO
Model Number: TMS-6300

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiated
Packaging Details: Exported ply wooden case or Full container
Delivery Time: 10 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 10 sets per month
Get Best Price Contact Now

Detail Information

Name: Manual Briquette Machine Function: Make Metal Briquette
Motor Power: 45kw Density: 5.5-6 T/m3
Briquette Diameter: 20cm Production: 2000-2500 Kg/H
Operation: Manual Machine Weight: 15000kg
High Light:

30kw Manual Briquette Press

,

5 Block/Min Manual Briquette Press

,

3 Block/Min briquette press machine

Product Description

3-5 block/mim production 30kw manual briquette press

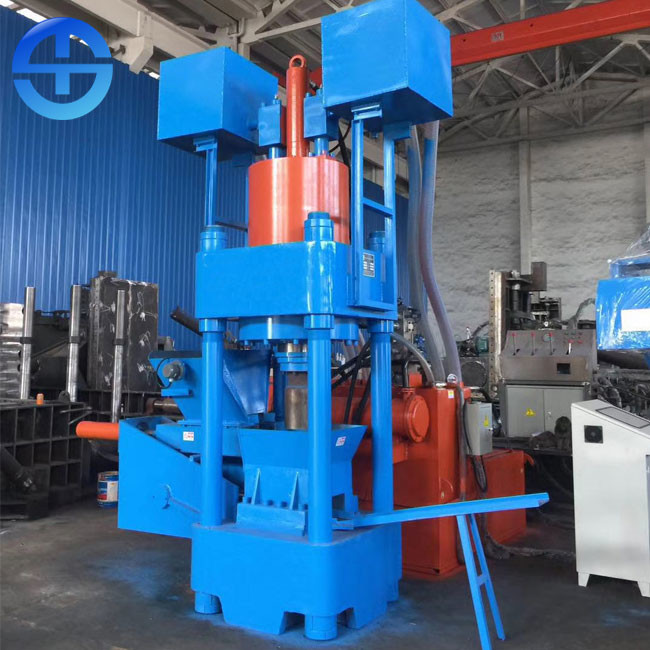

Introduction of manual briquette machine
Hydraulic briquette machine (block press) is suitable for aluminum alloy profile factory, steel casting factory, aluminum casting factory and copper casting plant. The aluminum scrap, steel chip, iron chip and copper chip pressing block are returned to the furnace, which can replace scrap steel, pig iron, aluminum ingot and scrap copper as raw materials, which can reduce burning loss.

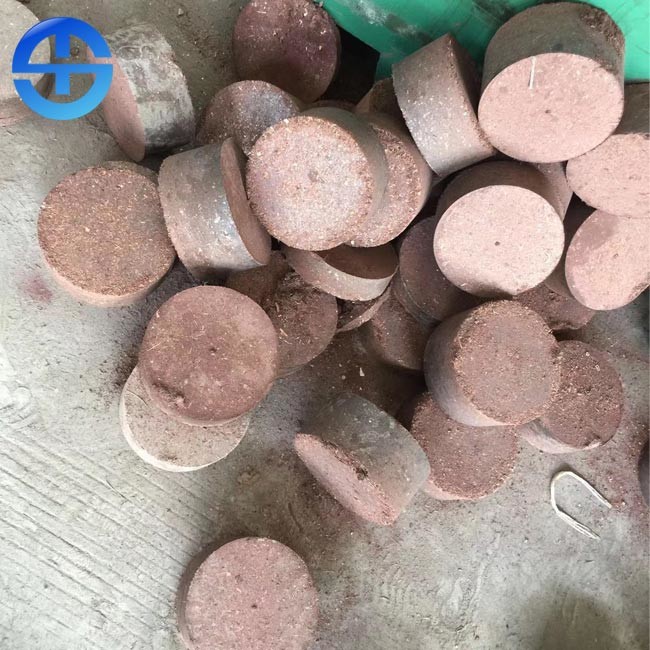

The equipment can directly cold press the powder and granular cast iron, steel, copper and aluminum chips into 3-6kg cylindrical cake block, so as to facilitate transportation, furnace operation and the whole process without heating, additives or other processes. The density of cast iron chips can reach 5-6t/m3 after pressing. The product can also be used in China or imported hydraulic and electrical components according to the requirements of customers, equipped with automatic feeding, weighing and other devices.
Application of manual briquette machine
Briquette machine is mainly used for cold pressing powdery, granular, small flake copper chips, iron chips, aluminum chips, alloy powder, stainless steel chip, iron ore powder, magnesium powder, copper powder and other metal chips Into a 3-5 kg cylindrical cake. It can also be used for pressing non-metal materials such as coke and slag powder.
Features of hydraulic briquette machine
1. This machine adopts hydraulic transmission, highly integrated valve block, super large flow diameter, so that the system has less pressure loss and good sealing performance.
2. The use of cartridge valve, electro-hydraulic proportional valve and unique oil circuit design make the hydraulic system in good condition. Even in the case of long-term heavy load, the system will not be unable to work.
3. The electrical part adopts imported PLC automatic control system, which has strong anti-interference ability and low failure rate.

Operation principle of manual briquette machine

1. The main pressure oil cylinder, which connects the punch and extrudes the metal bulk in the die, is the largest and most important in the oil cylinder group.

2. The speed increasing cylinder, above the main pressure cylinder, is used to improve the extrusion speed of the main pressure cylinder, increase the working efficiency, and increase the return speed.

3. The pushing cylinder pushes the metal chips in the hopper into the die.

4. The pulling block oil cylinder is used to push out the cake in the die after falling. It is mainly used for pressing steel chips, cast iron chips, copper chips and aluminum chips into high-density cylindrical lumps to facilitate recovery and smelting, especially cast iron chips can replace cast pig iron after pressing.
Technical data of manual briquette machine

No. Type name Model or Data
Main cylinder Acceleration cylinder Push block cylinder Feeding cylinder
1 Nominal pressure 5306KN 358KN 500KN 150KN
2 Inner diameter of cylinder Φ520mm φ135mm Φ200mm φ110mm
3 Piston diameter Φ300mm Φ70mm Φ80mm φ70mm
4 Stroke 430mm 440mm 240mm 390mm
5 System Max.pressure 25Mpa 25Mpa 16Mpa 16Mpa
6 Upper and lower beams Integral steel casting
7 Main pressure cylinder Integral steel casting
8 Motor 2 sets 45kw
9 Oil pump 2 sets 80MCY14-1B
10 Briquette density  5.5-6T/m3 (Aluminum powder)
11 Briquette diameter Φ200mm (Aluminum powder)
12 Work efficiency 3-5 pieces / min
12 Capacity 2-2.5 ton/H (Aluminum powder)
13 System control PLC program control, with adjustable text display; cartridge valve block
14 Cooling mode 12m2 water cooler, automatic temperature control
15 Operation mode Manual / Full automatic
16 Machine size 2600*3200*4000mm
17 Machine weight 15 Ton
