Q235 Steel 2*11kw Scrap Metal Recycling Machine Double Shaft Shredder

Minimum Order Quantity : 1 set Price : Negotiated
Packaging Details : Ply wooden case or Full container Delivery Time : 10 work days
Payment Terms : L/C, T/T, Western Union, MoneyGram Supply Ability : 20 sets per month
Place of Origin: China Brand Name: TMS
Certification: ISO, CO, CE Model Number: SSJ-400

Detail Information

Name: Scrap Metal Shredder Function: Shredding Scraps
Machine Dimension: 2200*1100*1550 Power: 2*11kw
Input: 400-500kg/h Blade Quantity: 20 Pieces
Blade Materials: Alloy Steel Voltage: 380 V Or Customized
High Light:

2*11kw Scrap Metal Recycling Machine

,

Q235 Scrap Metal Recycling Machine

,

Q235 Double Shaft Shredder

Product Description

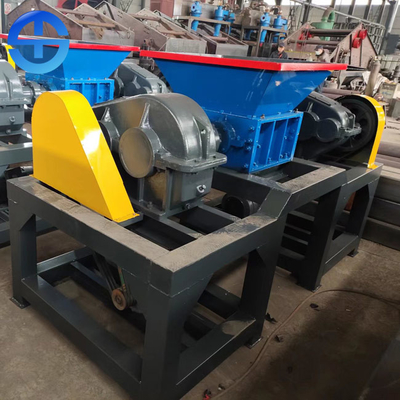

Q235 Steel 2*11kw Scrap Metal Recycling Machine Double Shaft Shredder

Introduction of scrap metal shredder



The scrap metal shredder uses the strong torque generated after the speed ratio compression to drive the two shafts to rotate inward. During the rotation, the blade edge of the cutter head becomes small pieces after various shredding effects such as extrusion, tearing and tearing of metal materials under tight balance. Yongsheng shredder has low speed, large torque, low noise, five dust, low production capacity, high energy consumption and small land occupation. It is applicable to any working environment. According to the number of shafts, metal shredders can be divided into: double shaft shredder, three shaft shredder and four shaft shredder.



The scrap metal shredder can tear up metal waste materials such as paint bucket, machine oil bucket, color steel tile, automobile shell, automobile oil filter element, bicycle and scrap steel. It can also tear up waste materials such as automobile tires, large plastic pipes and large plastics into recyclable materials.


Technical data of scrap metal shredder







Main body

Model SSJ-400
Body It adopts split type for easy disassembly and assembly, welded by Q235 steel plate.
Dimension 2200*1100*1550mm
Power 11kw*2
Speed 15-18 r/min
Reducer speed ratio 45.87
Frame 100*100 channel steel welded









Blade

Quantity 20 pieces
Cutter head material Alloy material
Cutter head hardness range 53-58
Cutter head thickness 20mm
Blade type The outer tooth adopts small hook angle outer triangular tooth shape, and the inner hole is hexagonal
No. of cutter head teeth Customized according to customer requirements
Shaft Spindle form Hexagonal shaft
Shaft diameter 100mm
Spacer Quantity 20 pieces
Capacity 400-500kg/h


Features of scrap shaft shredder


1. The design of the machine is reasonable, and the body is welded with high-quality steel.

2. It is fastened with high-strength screws, with solid structure and durability.

3. The design of the main machine is exquisite, and the broken material adopts the separation design to make its output higher.

4. The processed and broken pieces are uniform and the loss is small. A variety of screens can be replaced at the same time to meet different needs.

5. At the same time, it is equipped with tools of different materials, so that the tools can be retracted and adjusted for different materials, can be grinded after blunt, can be used for many times, and has a long service life.

6. The machine has the advantages of advanced structure, beautiful appearance, simple operation, stable operation, low investment and high efficiency.

7. Equipped with an enlarged pulley to increase the inertia of the crusher, which can save energy and strong crushing.



Application of scrap metal shredder



1. Various hollow containers: plastic beverage cans, plastic barrels, iron barrels, packing boxes, packing barrels

2. Waste household appliances: TV, washing machine, refrigerator shell

3. Pipes: large pipes, pipe fittings, PE pipes

4. Waste formwork: wooden pallet, plastic pallet, forklift pallet

5. Waste tires: car tires, truck tires

6. Waste metal: automobile shell, aluminum alloy, waste aluminum castings, engine shell, lead and steel plate with thickness less than 5mm

7. Food waste, domestic waste, animal corpses, RDF derivatives, medical waste, biological orange stalk, garden waste

8. Rubber head material, paper mill rope.
