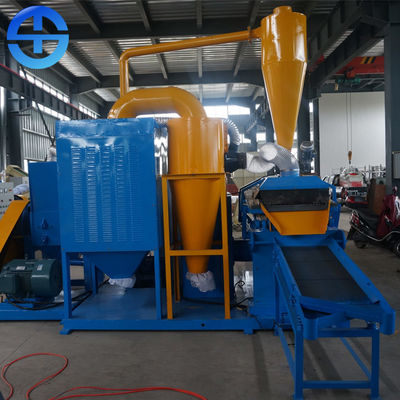

Recycling Scrap 400kg/H Copper Wire Granulator
Product Details:
| Place of Origin: | Henan, China (Mainland) |
| Brand Name: | TMS |
| Certification: | CE, CO, ISO |
| Model Number: | 600 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Full container for copper cable granulator |
| Delivery Time: | 20 work days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 30 Set/Sets per Month |
|
Detail Information |
|||
| Name: | Copper Cable Granulator | Type: | Dry Type |
|---|---|---|---|
| Function: | Recycle Scrap Copper | Separating Rate: | 99.9% |
| Capacity: | 300-400 Kg/h | Weight: | 3400kg |
| Dimension: | 4300*1950*2400 Mm | Wire Diameter: | 0.1-20mm |
| Color: | Blue | ||
| High Light: | 400kg/H Copper Wire Granulator,Copper Cable Granulator |
||
Product Description
300-400kg/h copper wire granulator copper cable recycling machine
Copper cable granulator is used for handling automobile wires, communication cables and other types of miscellaneous wires and cables. This machine has a compact structure, and has stable and reliable performance. Scrap copper wires and cables are chopped by the Chopper in the machine and then plastic pieces and copper granules are separated by airflow and vibration. Copper granules and plastic pieces come out of the machine through different outlets, and dust is collected by Dust Collector.
Raw material:
The wire is like auto wires, communication cables and kinds of miscellaneous wires and cables. Copper wires less than 20mm in diameter are suitable, single conductor diameter of 0.2-0.3mm is best.
Features:
1. The whole system is controlled by the Electricity Control Panel.
2. The bottom air flow is controlled by the Airlock.
3. The operation is stable.
4. Minimum copper recovery rate can reach 99%.
Technical parameters
| Model | Size | Capacity | Wire diameter range | Power | Volage | Wight |
| Mini-400 |
1500*1500*1900 mm |
80-100 kg/h | 0.1-20 mm | 11.92 kw | 380/240V | 750kg |
| TMS-400 | 2700*1900*2300 mm | 150-200 kg/h | 0.1-20 mm | 23.12 kw | 380/240V | 1200kg |
| TMS-600 |
4300*1950*2400 mm |
300-400 kg/h | 0.1-20 mm | 52.36 kw | 380/240V | 3400kg |
| TMS-800 |
9200*4100*3540 mm |
500-600 kg/h | 0.1-30 mm | 71.86 kw | 380/240V | 4100kg |
The spare parts of cable granulator includes screen mesh and blades in crusher.
1. The machines except spare parts are guaranteed for 12 months.
2. Engineer will be sent to your place to guide how to operate for the production line.
3. We will send you extra set of spare parts and two sets small vibrators.
RFQ
1. What is the copper purity?
We can ensure that the copper purity can reach 99.9%. Customer can not worry about the copper waste.
2. What does a good Copper Wire Granulator bring to you?
High purity, better utilization level, PLC control system. More important is Wealth.
