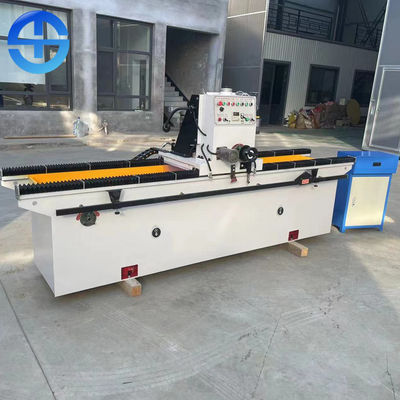

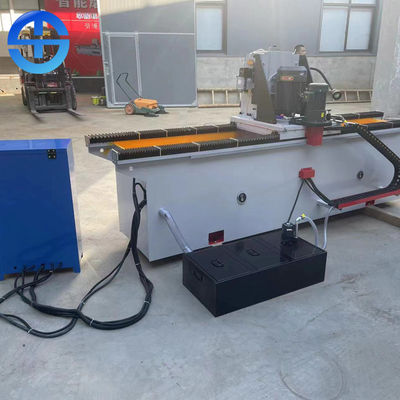

1600mm Electromagnetic Industrial Knife Sharpener Machines High Precision

1600mm Electromagnetic Industrial Knife Sharpener Machines High Precision

Product Details:

Place of Origin: China
Brand Name: TMS
Certification: CO, ISO
Model Number: 1600

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Standard exported ply wooden case
Delivery Time: 10 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 sets per month
Get Best Price Contact Now

Detail Information

Name: Knife Sharpener Machines Function: Sharpenning
Power: 5.5kw +1.5kw +90w Electromagnetic Chuck Size: 1600*180mm
Grinding Wheel Size: 250*110*32mm Size: 3400*1250*1650 Mm
Weight: 2 Tons Voltage: 380 V Or Customized
High Light:

Electromagnetic Industrial Knife Sharpener Machines


1600mm Industrial Knife Sharpener Machines


Electromagnetic knife sharpening grinder

Product Description

1600 High Precision Electromagnetic Industrial Knife Sharpener Machines


Summary of industrial Knife sharpener machines


Industrial knife sharpener machines is also called end face knife grinder, and its structure is mainly gantry type. It is mainly aimed at institutional and enterprise users, such as knife sharpening center, forest industry, printing factory, paper-making plastics, books and periodicals printing center, medium-sized knife sharpening room, etc. Main types: fully automatic knife grinder, precision knife grinder, CNC knife grinder, woodworking knife grinder, herbal medicine knife grinder, printing knife grinder, paper cutter knife grinder, multi-function knife grinder, double grinding head knife grinder, water-cooled knife grinder, etc.


Parameters of industrial knife sharpener machines


Model 1600 high precision electromagnetic knife sharpener machine
Dimension 3400*1250*1650mm
Weight 2 tons
Size of electromagnetic chuck 1600*180mm (copper)
Lead rail Taiwan Hiwin
Moving mode Rack (frequency conversion)
Oil pump Automatic oiler
Rack 60V helical gear imported from Taiwan
Grinding wheel model 60 mesh
Grinding wheel size 250*110*32mm
Grinding wheel motor power 5.5kw
Moving motor 1.5kw
Water pump motor 90w
Voltage 380V/50HZ


Features of industrial knife sharpener machines


1. the design of industrial knife sharpener machines body changes the original loose frame structure to the steel plate closed welding structure. The strength of the machine body is greatly improved, and its service life is increased and prolonged.

2. for the welded steel plates and metal materials, the full vibration aging treatment process is adopted to obviously eliminate and reduce the natural deformation of the whole machine after processing.

3. the transmission part changes the original belt transmission to rack transmission, which overcomes the uneven falling point of travel speed and ensures its reliability and stability.

4. change the 30 ° swing rotation angle of the grinding head of the knife grinder to the original design with a swing rotation angle greater than 90 °, making it more convenient and faster for the upper and lower workpieces and the replacement of the grinding wheel.

5. the automatic feed design is adopted when the grinding head is processed, which improves the degree of automation. It effectively saves the manpower and time necessary for manual feeding, and improves the labor degree of the operator.


Structure of industrial knife sharpener machines


1. The gantry structure fuselage is made of high quality carbon structural steel; The grinding head is driven by rolling linear guide; The cooling water is ejected from the middle of the grinding wheel (patented technology of water-cooled motor), which makes the cooling effect better;

The movement of the grinding head and the speed of the grinding wheel are controlled by the imported frequency converter, and the speed can be adjusted arbitrarily within the specified range.

2. The grinding wheel is used to feed the grinding tool automatically, and the grinding head is stick type cylinder grinding wheel, which improves the service life of the grinding wheel by 1 / 3, greatly reduces the cost of the grinding tool, and the front and back movement of the grinding head is adjustable


Application of industrial kinfe sharpener machines


Industrial Knife sharpener machines is a kind of equipment for linear grinding of cutting blade in wood processing industry, paper industry, printing industry, wood crushing, plastic crushing, rubber industry, leather industry, metallurgical plate rolling and other industries. It can also be used for grinding general metal end face and plays an important and irreplaceable role in modern industry.

Because of the powerful function and outstanding function of the grinder, it is necessary to add oil to the track plate frequently, clean the machine after each grinding, and replace the grinding wheel in case of fracture and gap, so as to avoid irreparable damage to the product.
